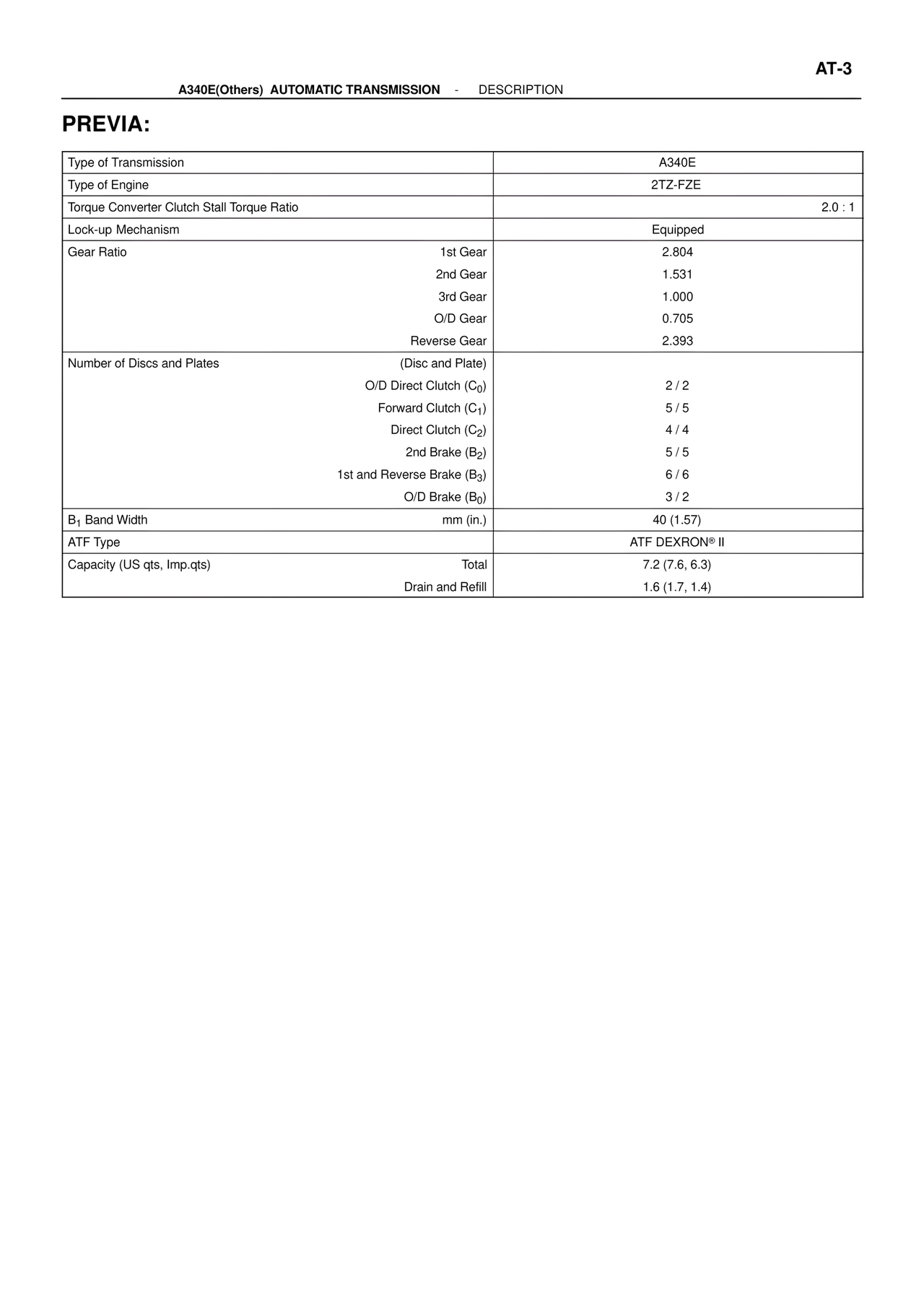

AT-3 A340E(Others) AUTOMATIC TRANSMISSION - DESCRIPTION PREVIA: Type of Transmission A340E Type of Engine 2TZ-FZE Torque Converter Clutch Stall Torque Ratio 2.0 : 1 Lock-up Mechanism Equipped Gear Ratio 1st Gear 2.804 2nd Gear 1.531 3rd Gear 1.000 O/D Gear 0.705 Reverse Gear 2.393 Number of Discs and Plates (Disc and Plate) O/D Direct Clutch (C0) 2 / 2 Forward Clutch (C1) 5 / 5 Direct Clutch (C2) 4 / 4 2nd Brake (B2) 5 / 5 1st and Reverse Brake (B3) 6 / 6 O/D Brake (B0) 3 / 2 B1 Band Width mm (in.) 40 (1.57) ATF Type ATF DEXRON® II Capacity (US qts, Imp.qts) Total 7.2 (7.6, 6.3) Drain and Refill 1.6 (1.7, 1.4)
