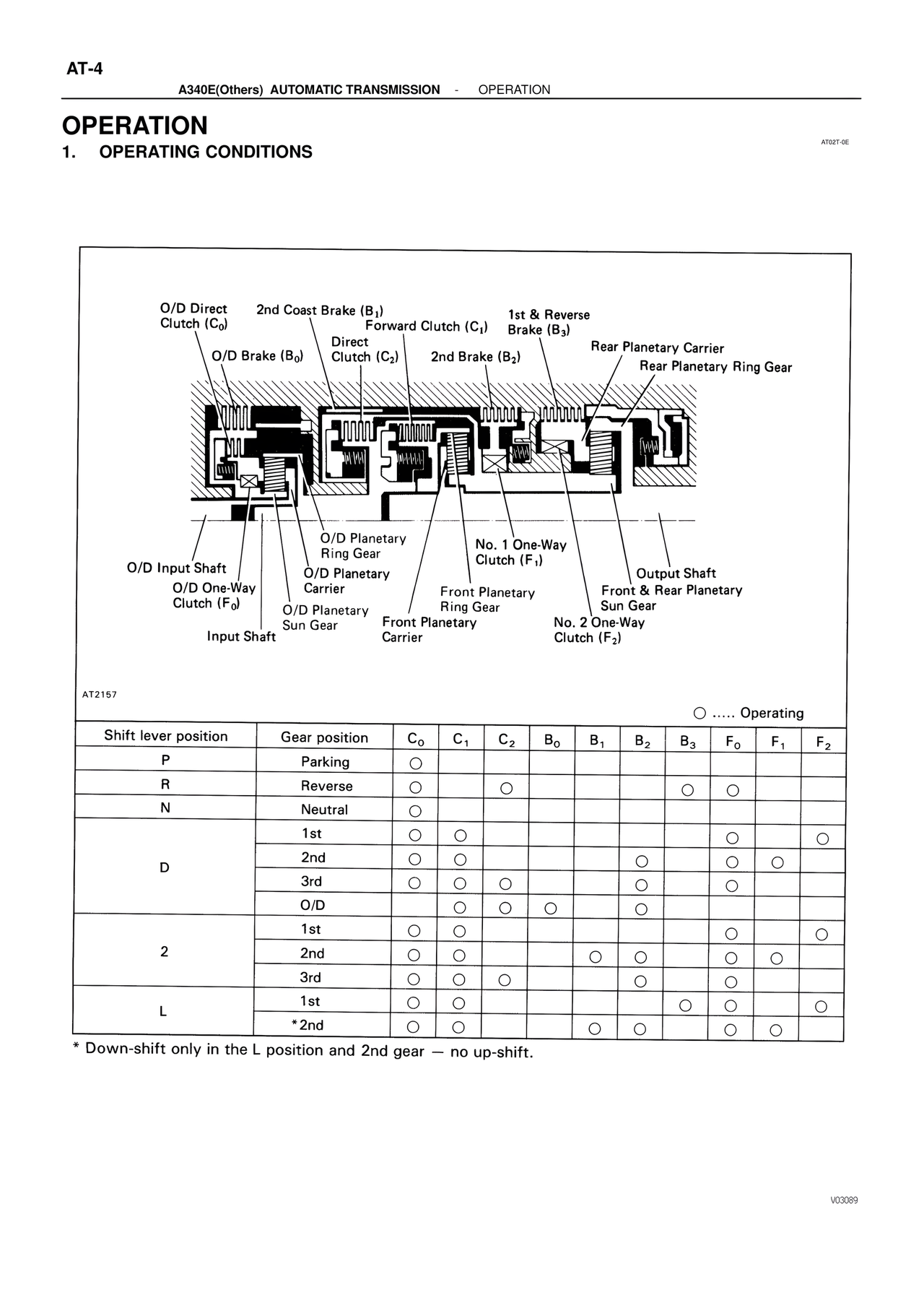

AT-4 A340E(Others) AUTOMATIC TRANSMISSION - OPERATION OPERATION 1. OPERATING CONDITIONS AT02T-0E O/D Direct Clutch (C0) 2nd Coast Brake (B1) Forward Clutch (C1) 1st & Reverse Brake (B3) Direct Clutch (C2) 2nd Brake (B2) Rear Planetary Carrier Rear Planetary Ring Gear O/D Brake (B0) O/D Planetary Ring Gear No. 1 One-Way Clutch (F1) O/D Input Shaft O/D Planetary Carrier Output Shaft O/D One-Way Clutch (F0) Front Planetary Ring Gear Front & Rear Planetary Sun Gear O/D Planetary Sun Gear Front Planetary Carrier No. 2 One-Way Clutch (F2) Input Shaft AT2157 O ..... Operating Shift lever position | Gear position | C0 | C1 | C2 | B0 | B1 | B2 | B3 | F0 | F1 | F2 P | Parking | O R | Reverse | O | | O | | | | O | O N | Neutral | O D 1st | O | O | | | | | | O | | O 2nd | O | O | | | | O | | O | O 3rd | O | O | O | | | O | | O O/D | | O | O | O | | O 2 1st | O | O | | | | | | O | | O 2nd | O | O | | | O | O | | O | O 3rd | O | O | O | | | O | | O L 1st | O | O | | | | | O | O | | O *2nd | O | O | | | O | O | | O | O * Down-shift only in the L position and 2nd gear — no up-shift. V03089
