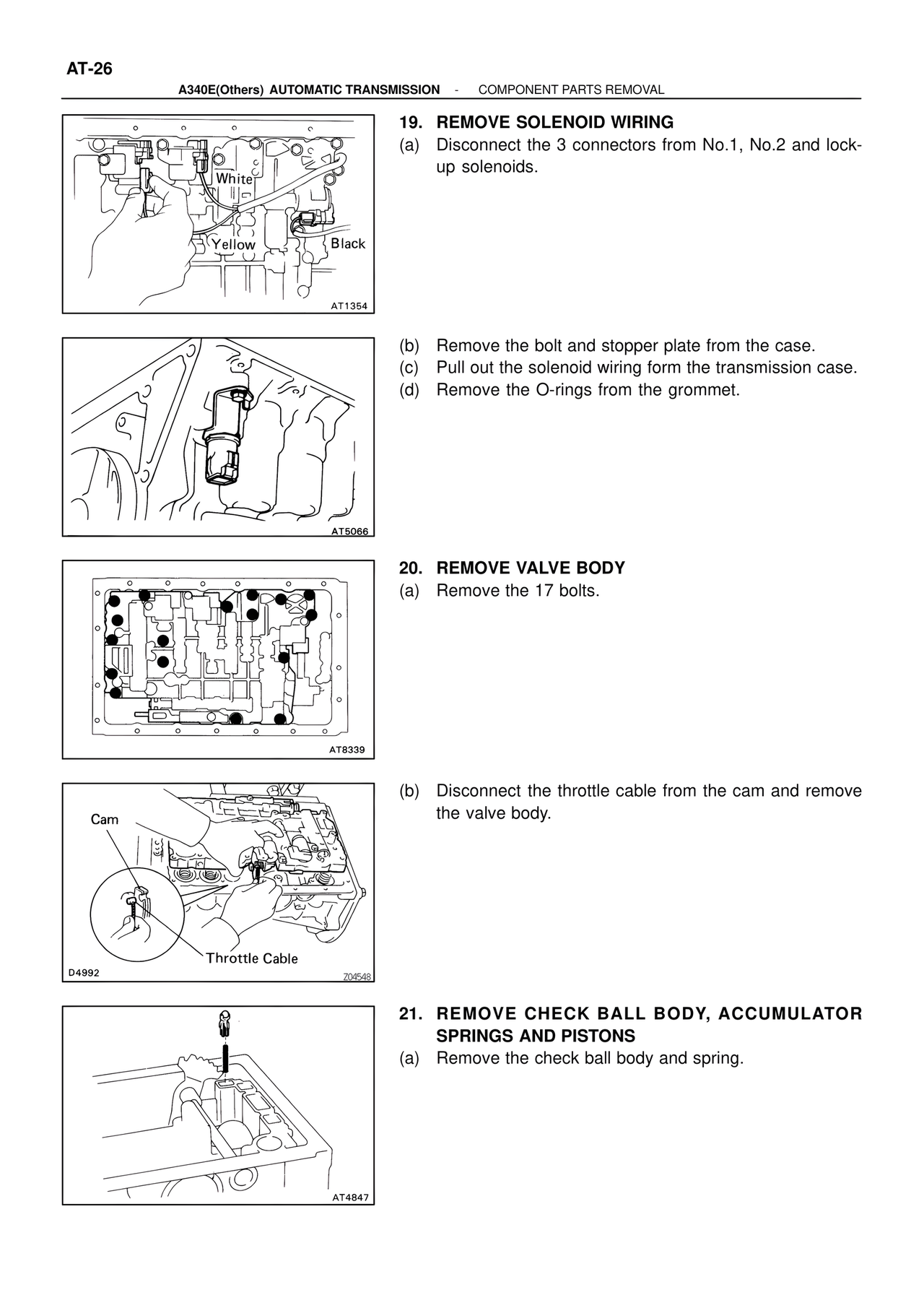

AT-26 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL White Yellow Black AT1354 19. REMOVE SOLENOID WIRING (a) Disconnect the 3 connectors from No.1, No.2 and lock-up solenoids. AT5066 (b) Remove the bolt and stopper plate from the case. (c) Pull out the solenoid wiring form the transmission case. (d) Remove the O-rings from the grommet. AT8339 20. REMOVE VALVE BODY (a) Remove the 17 bolts. Cam Throttle Cable D4992 204548 (b) Disconnect the throttle cable from the cam and remove the valve body. AT4847 21. REMOVE CHECK BALL BODY, ACCUMULATOR SPRINGS AND PISTONS (a) Remove the check ball body and spring.
