AT-27
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL

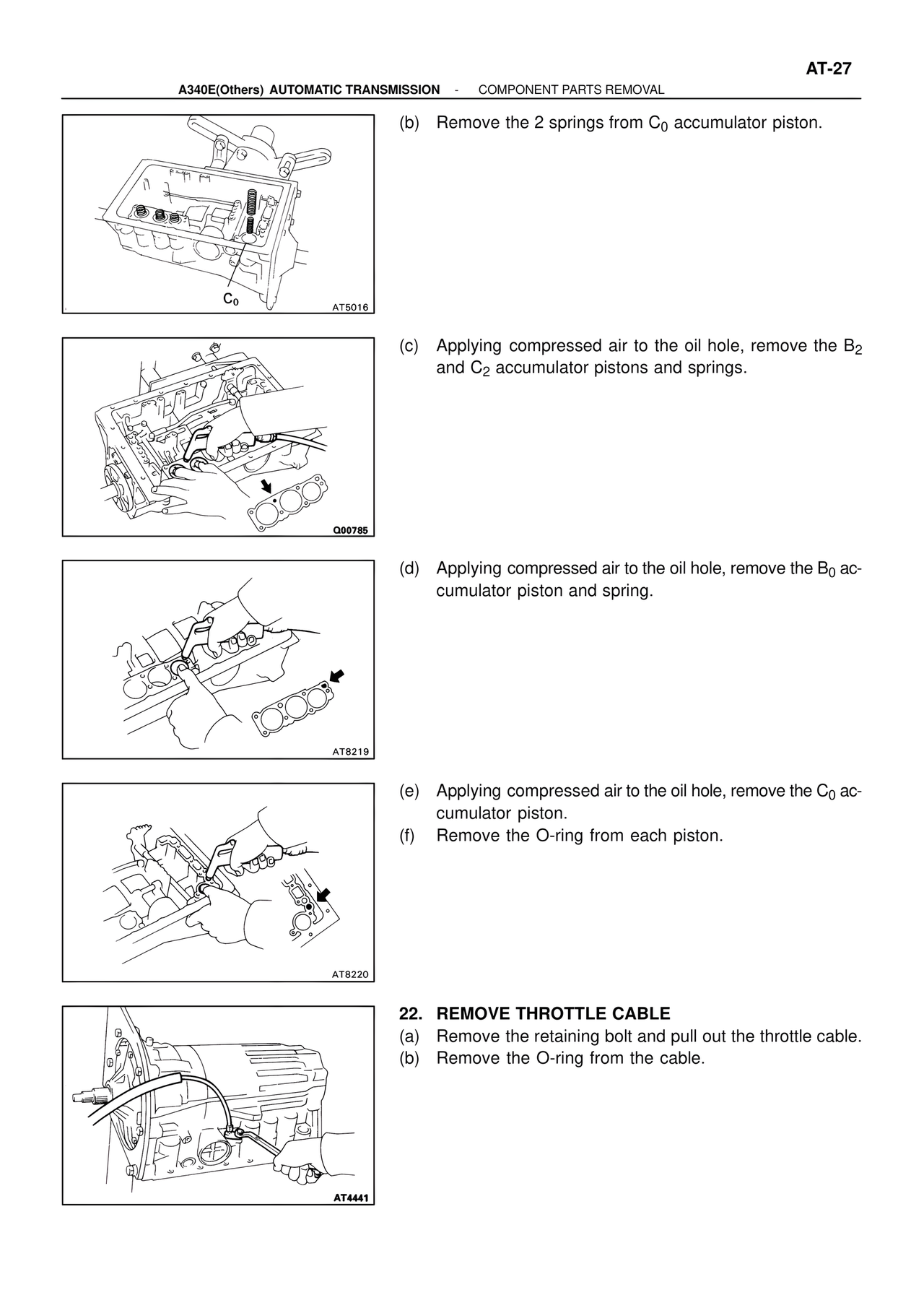

(b) Remove the 2 springs from C₀ accumulator piston.
C₀
AT5016
(c) Applying compressed air to the oil hole, remove the B₂ and C₂ accumulator pistons and springs.
Q00785
(d) Applying compressed air to the oil hole, remove the B₀ accumulator piston and spring.
AT8219
(e) Applying compressed air to the oil hole, remove the C₀ accumulator piston.
(f) Remove the O-ring from each piston.
AT8220
22. REMOVE THROTTLE CABLE
(a) Remove the retaining bolt and pull out the throttle cable.
(b) Remove the O-ring from the cable.
AT4441
