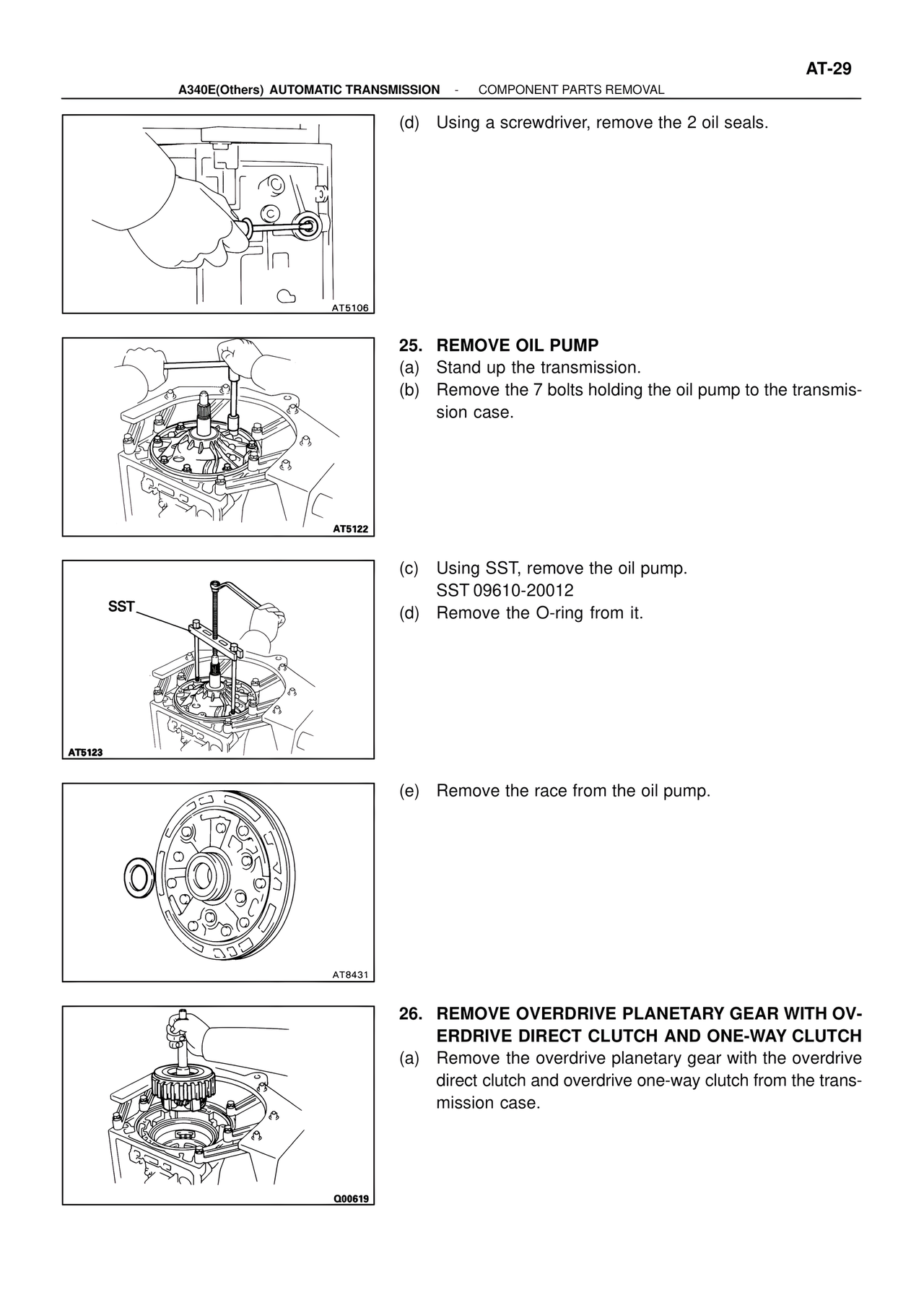

AT-29 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL (d) Using a screwdriver, remove the 2 oil seals. AT5106 25. REMOVE OIL PUMP (a) Stand up the transmission. (b) Remove the 7 bolts holding the oil pump to the transmission case. AT5122 (c) Using SST, remove the oil pump. SST 09610-20012 (d) Remove the O-ring from it. SST AT5123 (e) Remove the race from the oil pump. AT8431 26. REMOVE OVERDRIVE PLANETARY GEAR WITH OVERDRIVE DIRECT CLUTCH AND ONE-WAY CLUTCH (a) Remove the overdrive planetary gear with the overdrive direct clutch and overdrive one-way clutch from the transmission case. Q00619
