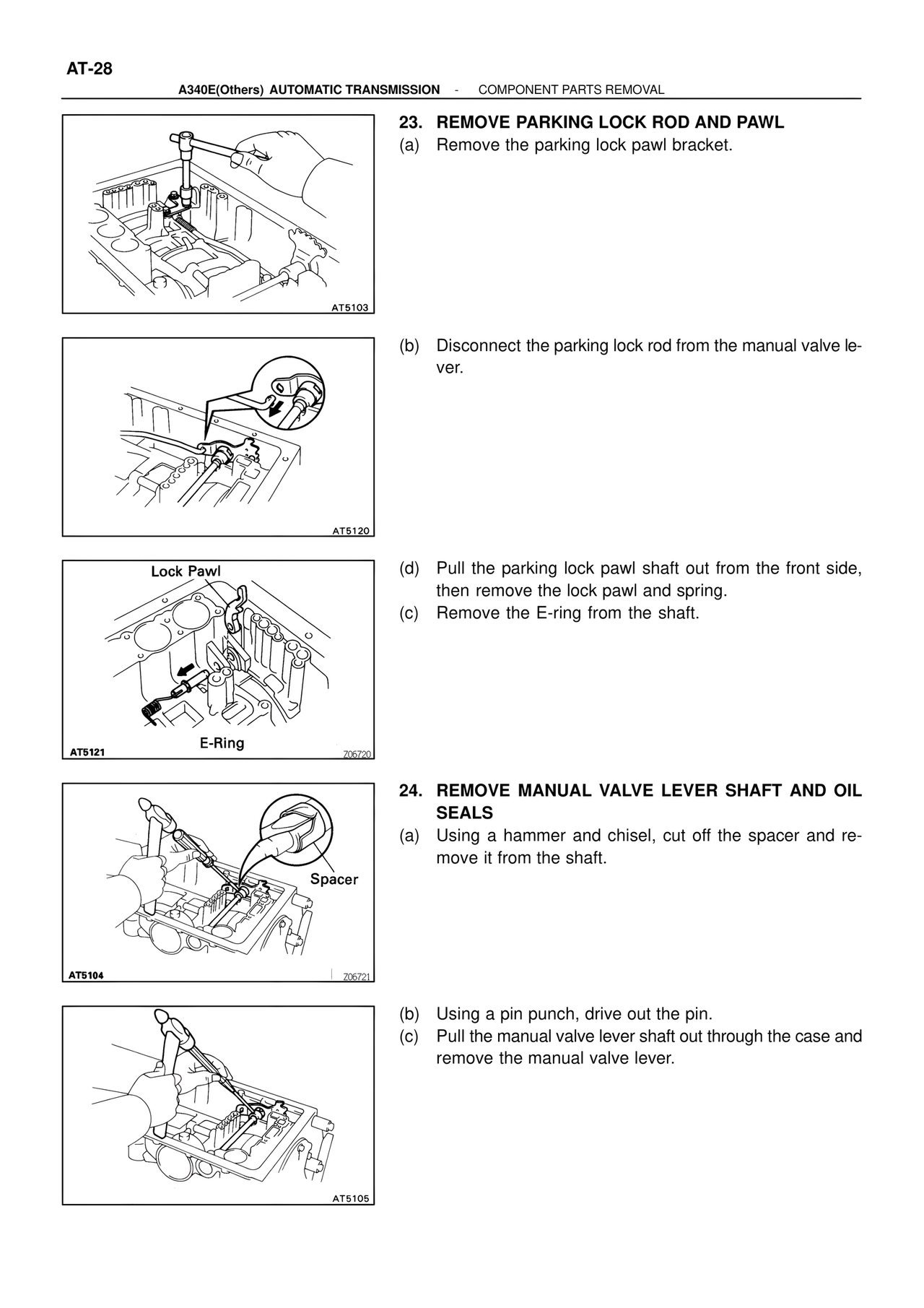

AT-28 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL 23. REMOVE PARKING LOCK ROD AND PAWL (a) Remove the parking lock pawl bracket. AT5103 (b) Disconnect the parking lock rod from the manual valve lever. AT5120 Lock Pawl (d) Pull the parking lock pawl shaft out from the front side, then remove the lock pawl and spring. (c) Remove the E-ring from the shaft. E-Ring AT5121 Z06720 24. REMOVE MANUAL VALVE LEVER SHAFT AND OIL SEALS (a) Using a hammer and chisel, cut off the spacer and remove it from the shaft. Spacer AT5104 Z06721 (b) Using a pin punch, drive out the pin. (c) Pull the manual valve lever shaft out through the case and remove the manual valve lever. AT5105
