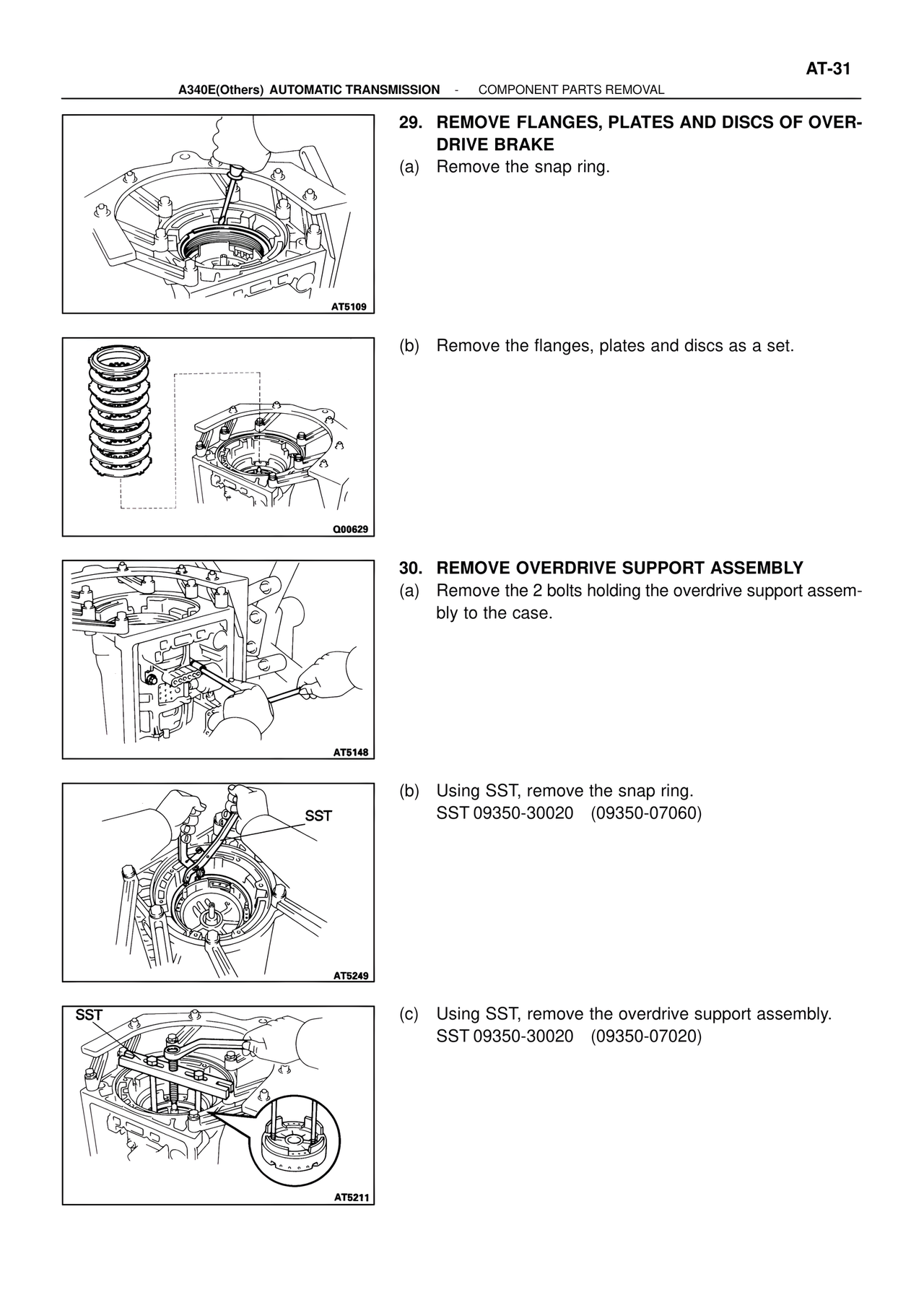

AT-31
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
29. REMOVE FLANGES, PLATES AND DISCS OF OVER-
DRIVE BRAKE
(a) Remove the snap ring.
AT5109
(b) Remove the flanges, plates and discs as a set.
Q00629
30. REMOVE OVERDRIVE SUPPORT ASSEMBLY
(a) Remove the 2 bolts holding the overdrive support assem-
bly to the case.
AT5148
(b) Using SST, remove the snap ring.
SST 09350-30020 (09350-07060)
SST
AT5249
(c) Using SST, remove the overdrive support assembly.
SST 09350-30020 (09350-07020)
SST
AT5211
