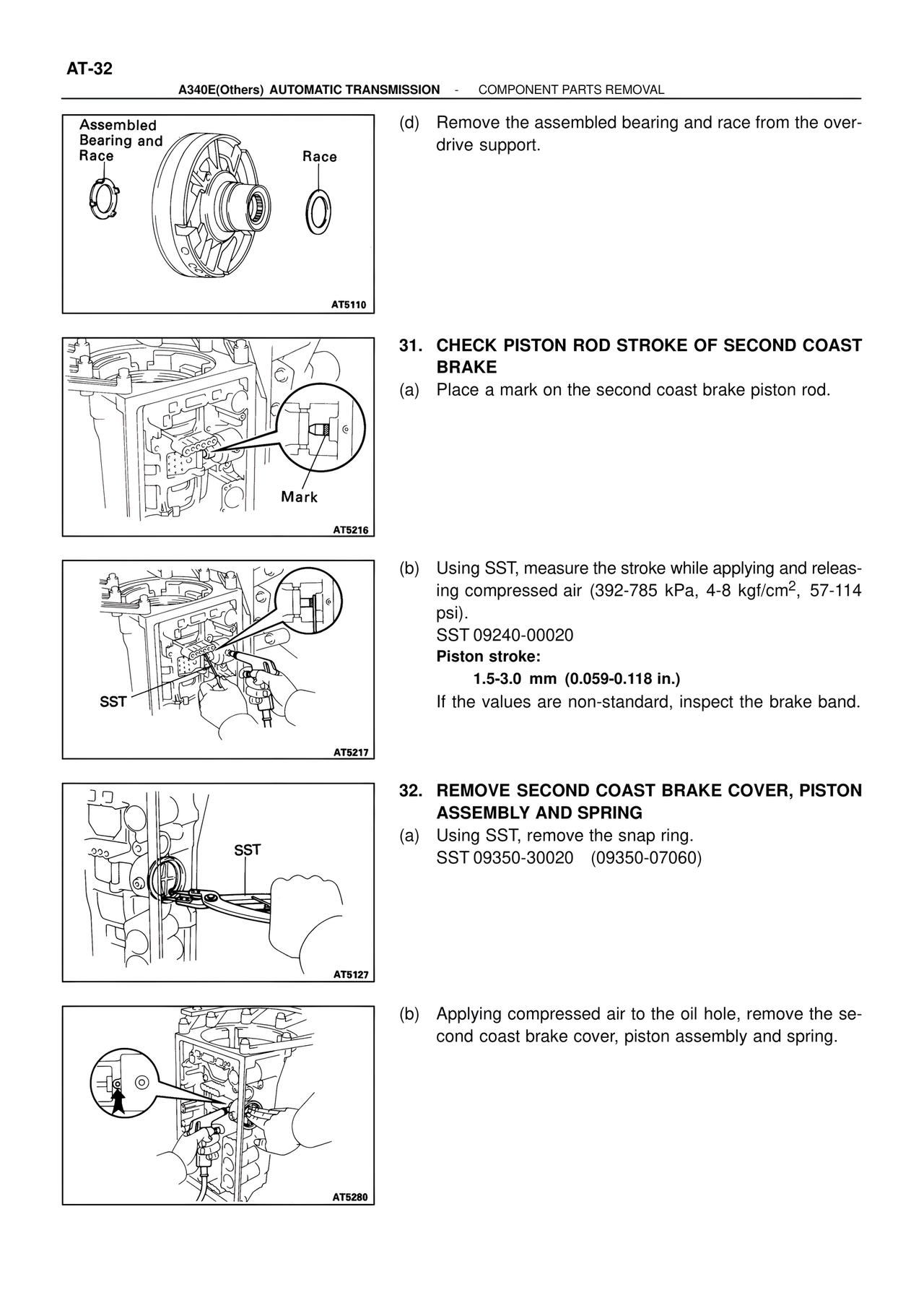

AT-32 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL Assembled Bearing and Race Race AT5110 (d) Remove the assembled bearing and race from the over- drive support. 31. CHECK PISTON ROD STROKE OF SECOND COAST BRAKE (a) Place a mark on the second coast brake piston rod. Mark AT5216 (b) Using SST, measure the stroke while applying and releas- ing compressed air (392-785 kPa, 4-8 kgf/cm2, 57-114 psi). SST 09240-00020 Piston stroke: 1.5-3.0 mm (0.059-0.118 in.) If the values are non-standard, inspect the brake band. SST AT5217 32. REMOVE SECOND COAST BRAKE COVER, PISTON ASSEMBLY AND SPRING (a) Using SST, remove the snap ring. SST 09350-30020 (09350-07060) SST AT5127 (b) Applying compressed air to the oil hole, remove the se- cond coast brake cover, piston assembly and spring. AT5280
