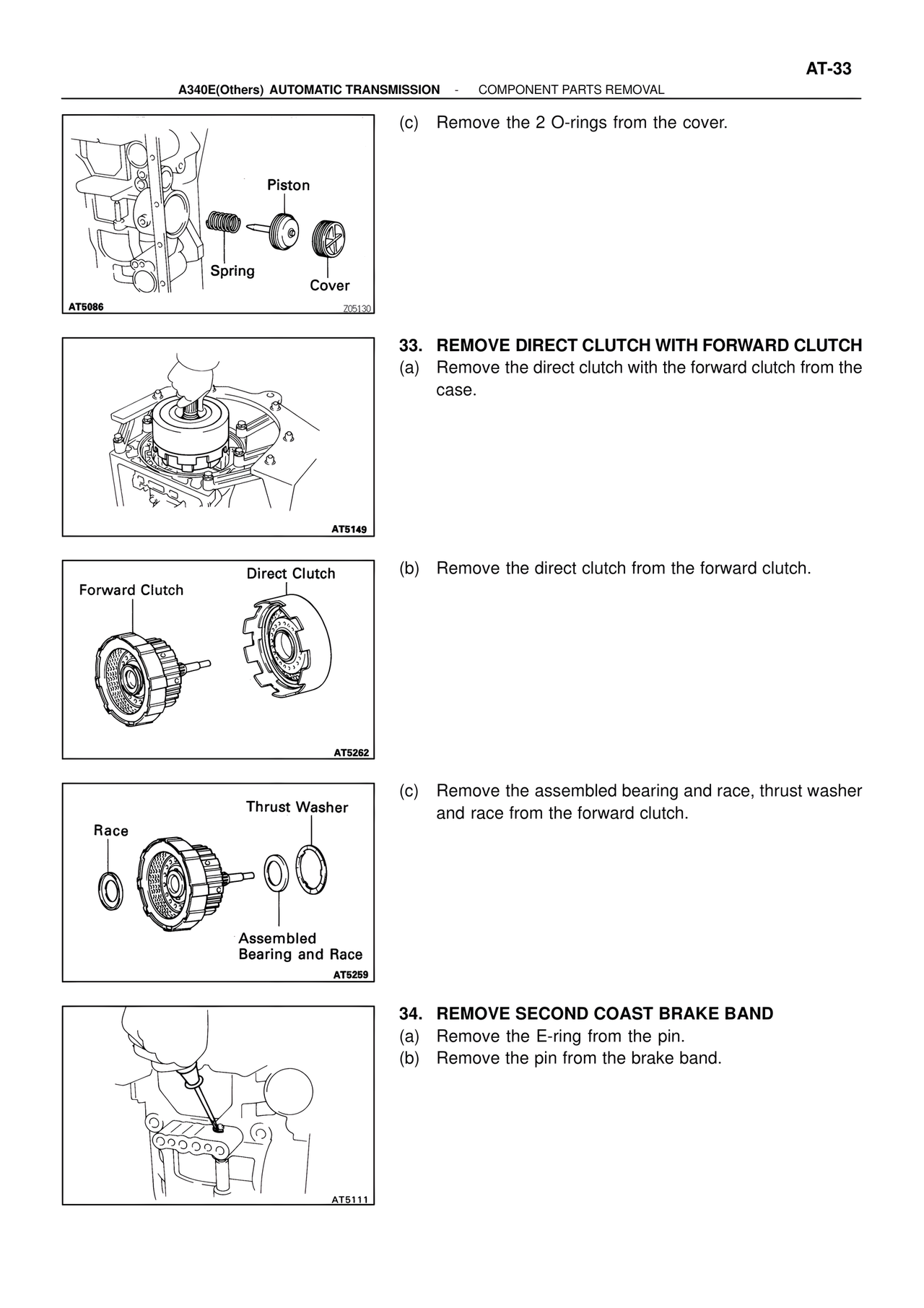

AT-33
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
Piston
Spring
Cover
AT5086
(c) Remove the 2 O-rings from the cover.
33. REMOVE DIRECT CLUTCH WITH FORWARD CLUTCH
(a) Remove the direct clutch with the forward clutch from the case.
AT5149
Forward Clutch
Direct Clutch
(b) Remove the direct clutch from the forward clutch.
AT5262
Thrust Washer
Race
Assembled Bearing and Race
(c) Remove the assembled bearing and race, thrust washer and race from the forward clutch.
AT5259
34. REMOVE SECOND COAST BRAKE BAND
(a) Remove the E-ring from the pin.
(b) Remove the pin from the brake band.
AT5111
