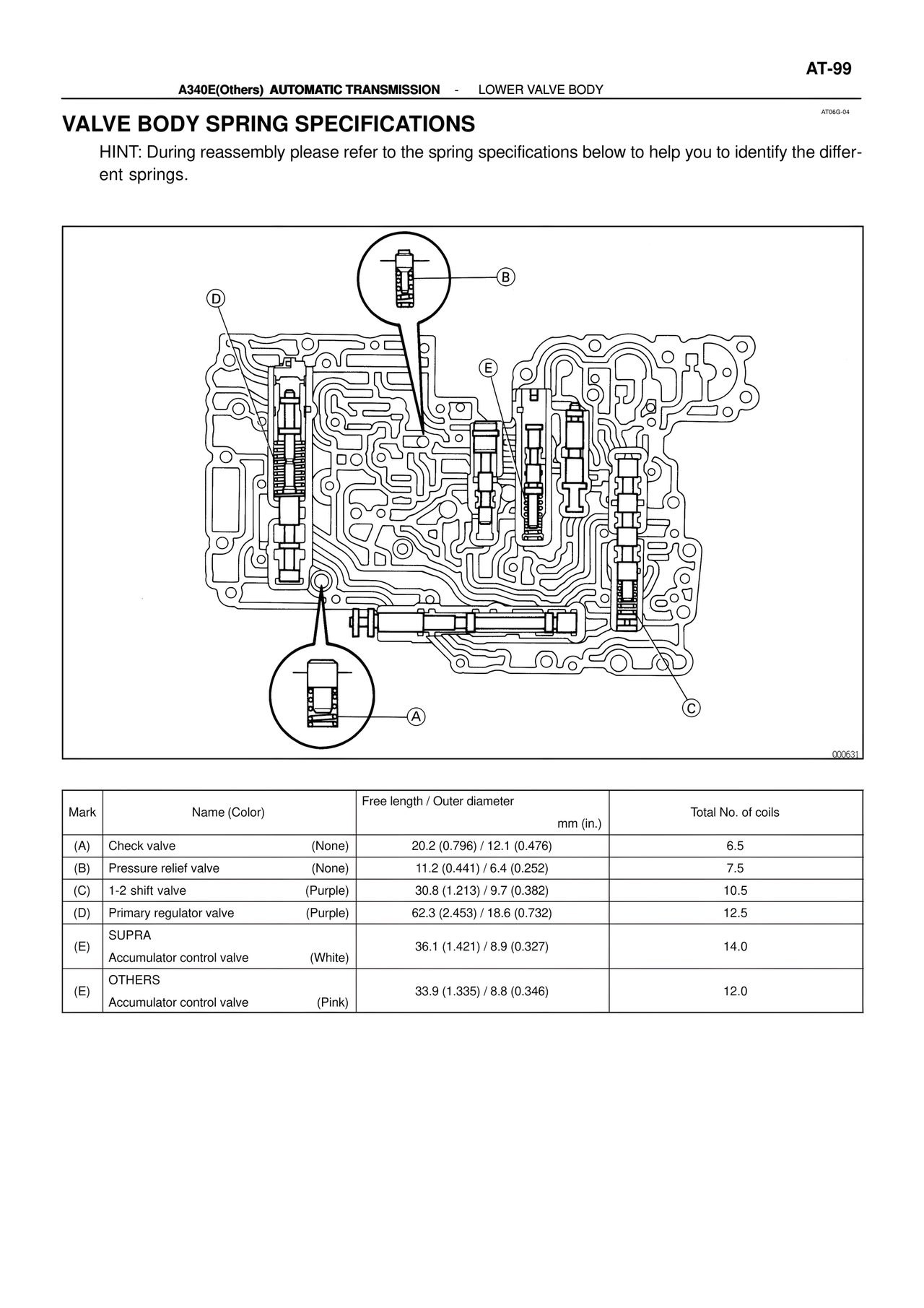

AT-99 A340E(Others) AUTOMATIC TRANSMISSION - LOWER VALVE BODY AT08G-04 VALVE BODY SPRING SPECIFICATIONS HINT: During reassembly please refer to the spring specifications below to help you to identify the different springs. (D) (B) (E) (A) (C) 000631 Mark | Name (Color) | Free length / Outer diameter mm (in.) | Total No. of coils (A) | Check valve (None) | 20.2 (0.796) / 12.1 (0.476) | 6.5 (B) | Pressure relief valve (None) | 11.2 (0.441) / 6.4 (0.252) | 7.5 (C) | 1-2 shift valve (Purple) | 30.8 (1.213) / 9.7 (0.382) | 10.5 (D) | Primary regulator valve (Purple) | 62.3 (2.453) / 18.6 (0.732) | 12.5 (E) | SUPRA Accumulator control valve (White) | 36.1 (1.421) / 8.9 (0.327) | 14.0 (E) | OTHERS Accumulator control valve (Pink) | 33.9 (1.335) / 8.8 (0.346) | 12.0
