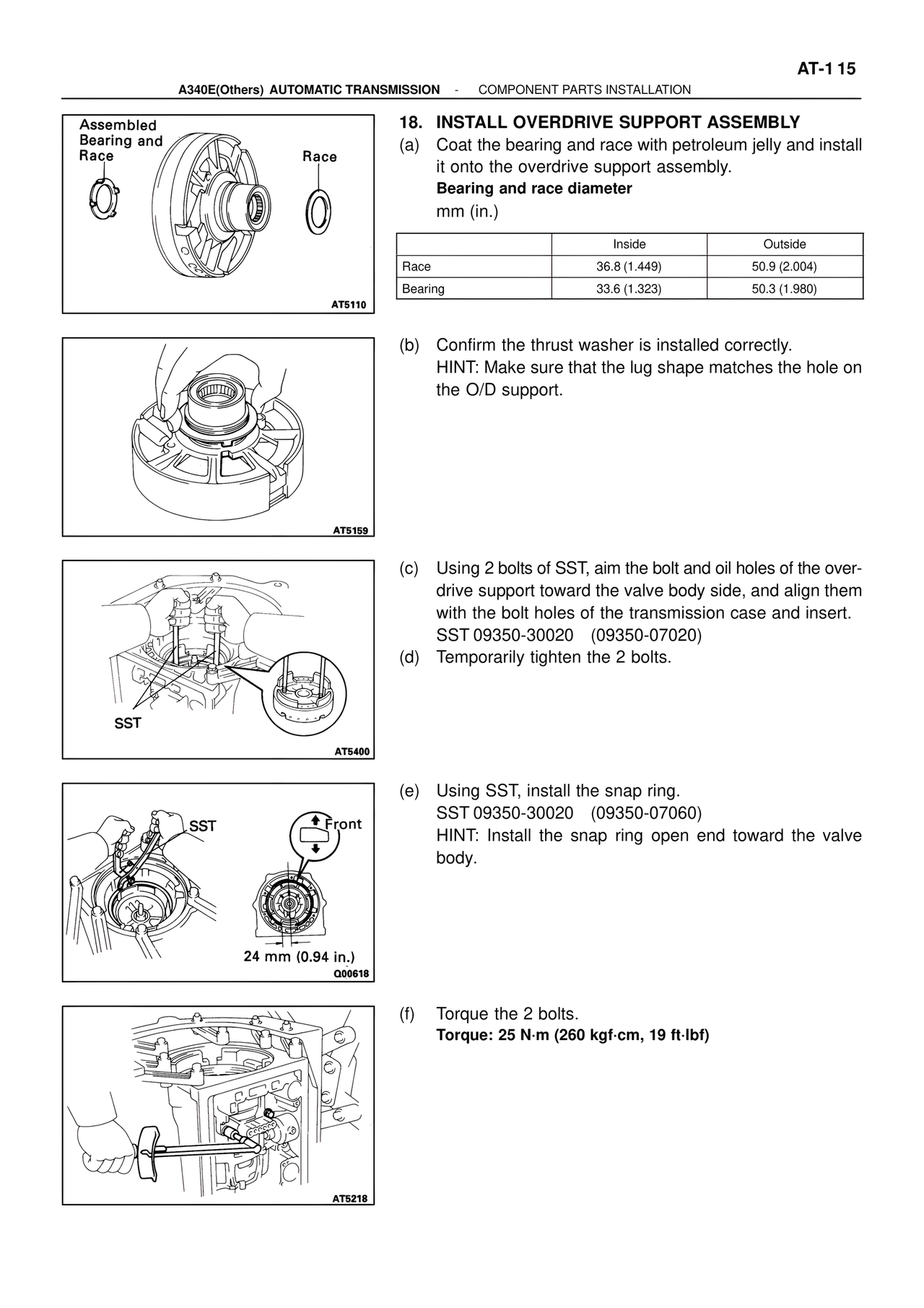

AT-1 15 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION Assembled Bearing and Race Race AT5110 18. INSTALL OVERDRIVE SUPPORT ASSEMBLY (a) Coat the bearing and race with petroleum jelly and install it onto the overdrive support assembly. Bearing and race diameter mm (in.) Inside Outside Race 36.8 (1.449) 50.9 (2.004) Bearing 33.6 (1.323) 50.3 (1.980) AT5159 (b) Confirm the thrust washer is installed correctly. HINT: Make sure that the lug shape matches the hole on the O/D support. AT5400 (c) Using 2 bolts of SST, aim the bolt and oil holes of the over- drive support toward the valve body side, and align them with the bolt holes of the transmission case and insert. SST 09350-30020 (09350-07020) (d) Temporarily tighten the 2 bolts. SST Front 24 mm (0.94 in.) Q00618 (e) Using SST, install the snap ring. SST 09350-30020 (09350-07060) HINT: Install the snap ring open end toward the valve body. AT5218 (f) Torque the 2 bolts. Torque: 25 N·m (260 kgf·cm, 19 ft·lbf)
