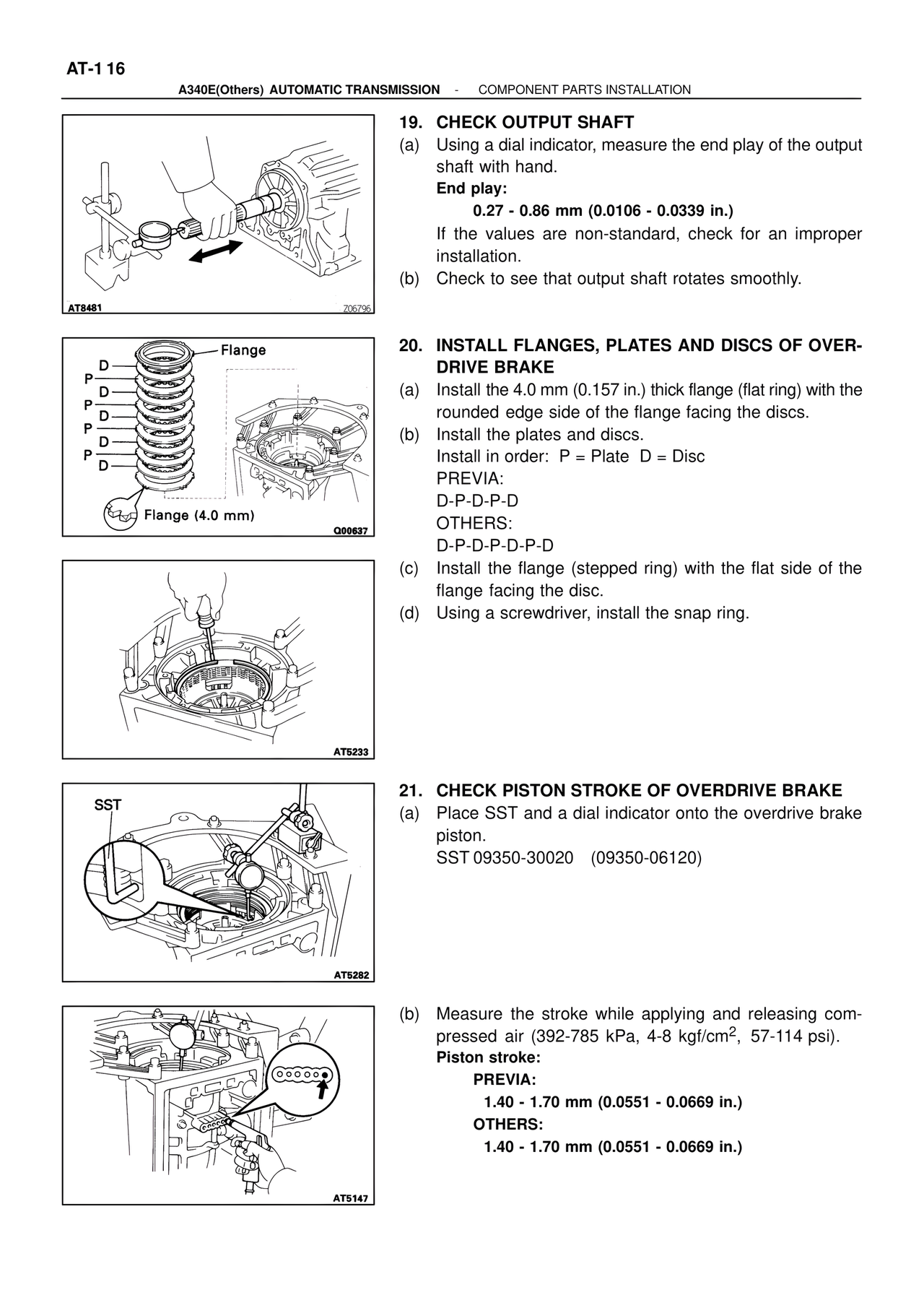

AT-1 16 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION AT8481 Z06796 19. CHECK OUTPUT SHAFT (a) Using a dial indicator, measure the end play of the output shaft with hand. End play: 0.27 - 0.86 mm (0.0106 - 0.0339 in.) If the values are non-standard, check for an improper installation. (b) Check to see that output shaft rotates smoothly. Flange D P D P D P D P D Flange (4.0 mm) Q00637 20. INSTALL FLANGES, PLATES AND DISCS OF OVER- DRIVE BRAKE (a) Install the 4.0 mm (0.157 in.) thick flange (flat ring) with the rounded edge side of the flange facing the discs. (b) Install the plates and discs. Install in order: P = Plate D = Disc PREVIA: D-P-D-P-D OTHERS: D-P-D-P-D-P-D (c) Install the flange (stepped ring) with the flat side of the flange facing the disc. (d) Using a screwdriver, install the snap ring. AT5233 SST AT5282 21. CHECK PISTON STROKE OF OVERDRIVE BRAKE (a) Place SST and a dial indicator onto the overdrive brake piston. SST 09350-30020 (09350-06120) AT5147 (b) Measure the stroke while applying and releasing com- pressed air (392-785 kPa, 4-8 kgf/cm2, 57-114 psi). Piston stroke: PREVIA: 1.40 - 1.70 mm (0.0551 - 0.0669 in.) OTHERS: 1.40 - 1.70 mm (0.0551 - 0.0669 in.)
