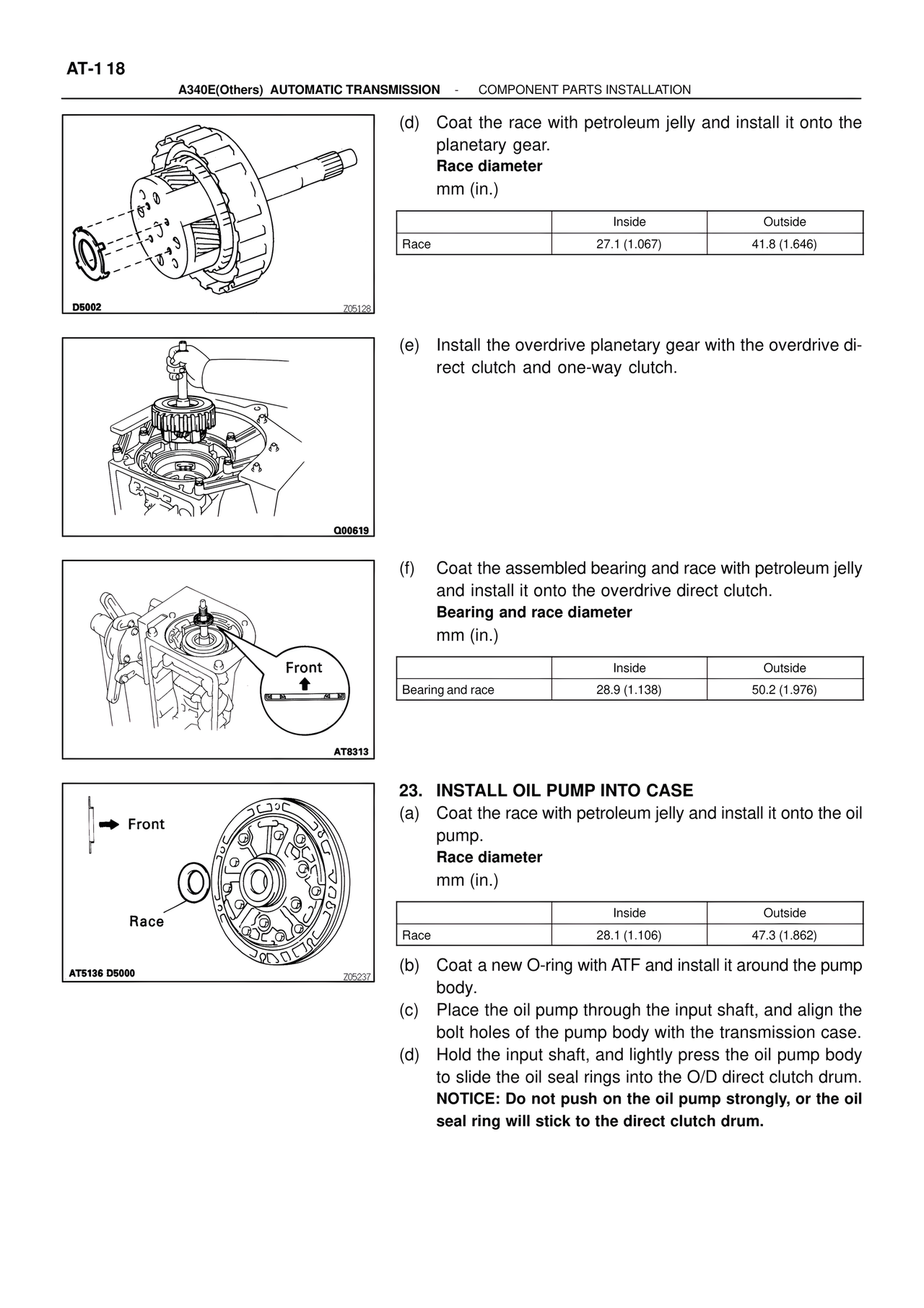

AT-1 18 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION D5002 Z05128 (d) Coat the race with petroleum jelly and install it onto the planetary gear. Race diameter mm (in.) Inside | Outside Race | 27.1 (1.067) | 41.8 (1.646) Q00619 (e) Install the overdrive planetary gear with the overdrive di- rect clutch and one-way clutch. Front AT8313 (f) Coat the assembled bearing and race with petroleum jelly and install it onto the overdrive direct clutch. Bearing and race diameter mm (in.) Inside | Outside Bearing and race | 28.9 (1.138) | 50.2 (1.976) Front Race AT5136 D5000 Z05237 23. INSTALL OIL PUMP INTO CASE (a) Coat the race with petroleum jelly and install it onto the oil pump. Race diameter mm (in.) Inside | Outside Race | 28.1 (1.106) | 47.3 (1.862) (b) Coat a new O-ring with ATF and install it around the pump body. (c) Place the oil pump through the input shaft, and align the bolt holes of the pump body with the transmission case. (d) Hold the input shaft, and lightly press the oil pump body to slide the oil seal rings into the O/D direct clutch drum. NOTICE: Do not push on the oil pump strongly, or the oil seal ring will stick to the direct clutch drum.
