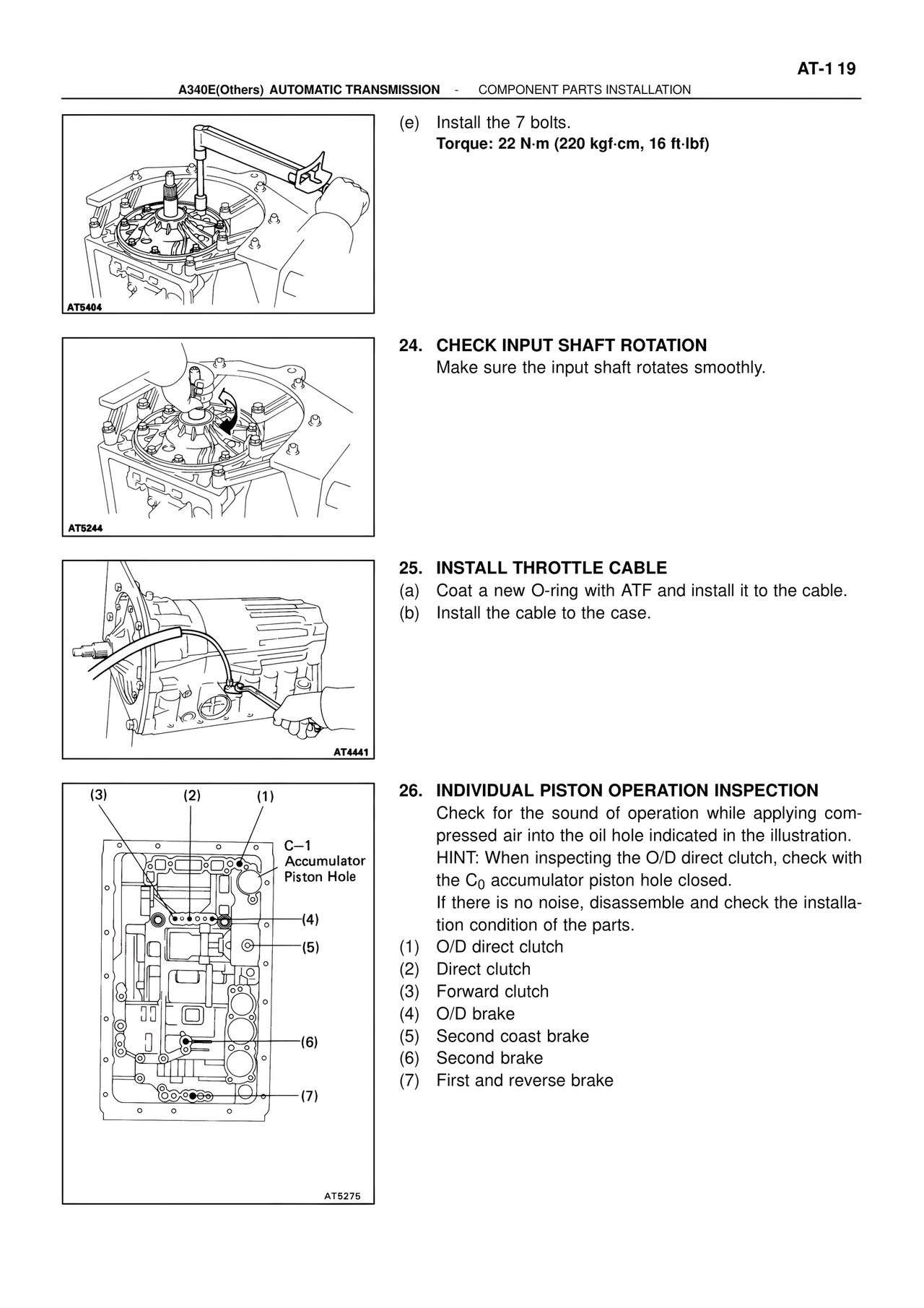

AT-1 19 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION (e) Install the 7 bolts. Torque: 22 N·m (220 kgf·cm, 16 ft·lbf) AT5404 24. CHECK INPUT SHAFT ROTATION Make sure the input shaft rotates smoothly. AT5244 25. INSTALL THROTTLE CABLE (a) Coat a new O-ring with ATF and install it to the cable. (b) Install the cable to the case. AT4441 (3) (2) (1) C-1 Accumulator Piston Hole (4) (5) (6) (7) AT5275 26. INDIVIDUAL PISTON OPERATION INSPECTION Check for the sound of operation while applying compressed air into the oil hole indicated in the illustration. HINT: When inspecting the O/D direct clutch, check with the C0 accumulator piston hole closed. If there is no noise, disassemble and check the installation condition of the parts. (1) O/D direct clutch (2) Direct clutch (3) Forward clutch (4) O/D brake (5) Second coast brake (6) Second brake (7) First and reverse brake
