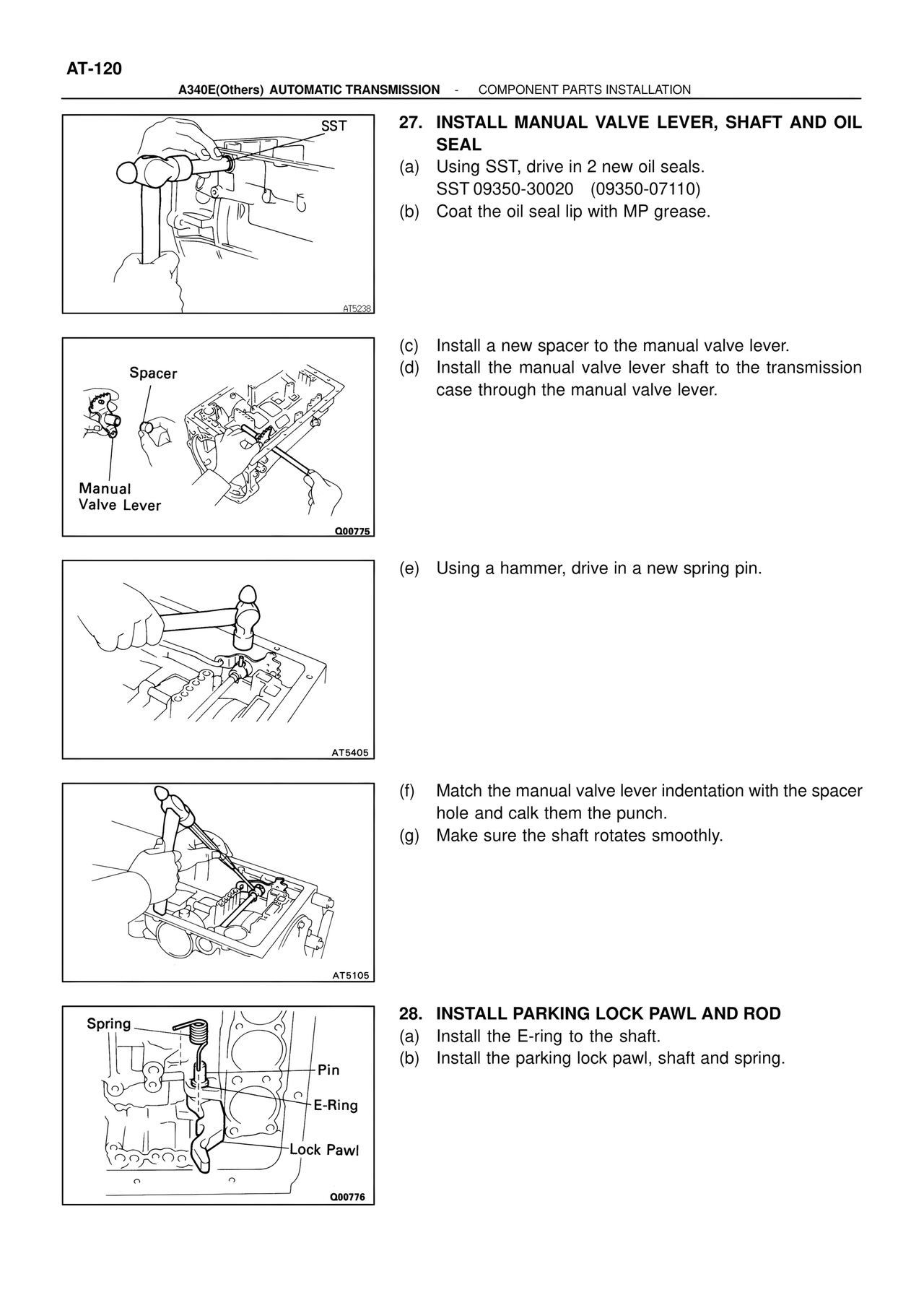

AT-120 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION SST 27. INSTALL MANUAL VALVE LEVER, SHAFT AND OIL SEAL (a) Using SST, drive in 2 new oil seals. SST 09350-30020 (09350-07110) (b) Coat the oil seal lip with MP grease. AT5238 Spacer Manual Valve Lever Q00775 (c) Install a new spacer to the manual valve lever. (d) Install the manual valve lever shaft to the transmission case through the manual valve lever. AT5405 (e) Using a hammer, drive in a new spring pin. AT5105 (f) Match the manual valve lever indentation with the spacer hole and calk them the punch. (g) Make sure the shaft rotates smoothly. Spring Pin E-Ring Lock Pawl Q00776 28. INSTALL PARKING LOCK PAWL AND ROD (a) Install the E-ring to the shaft. (b) Install the parking lock pawl, shaft and spring.
