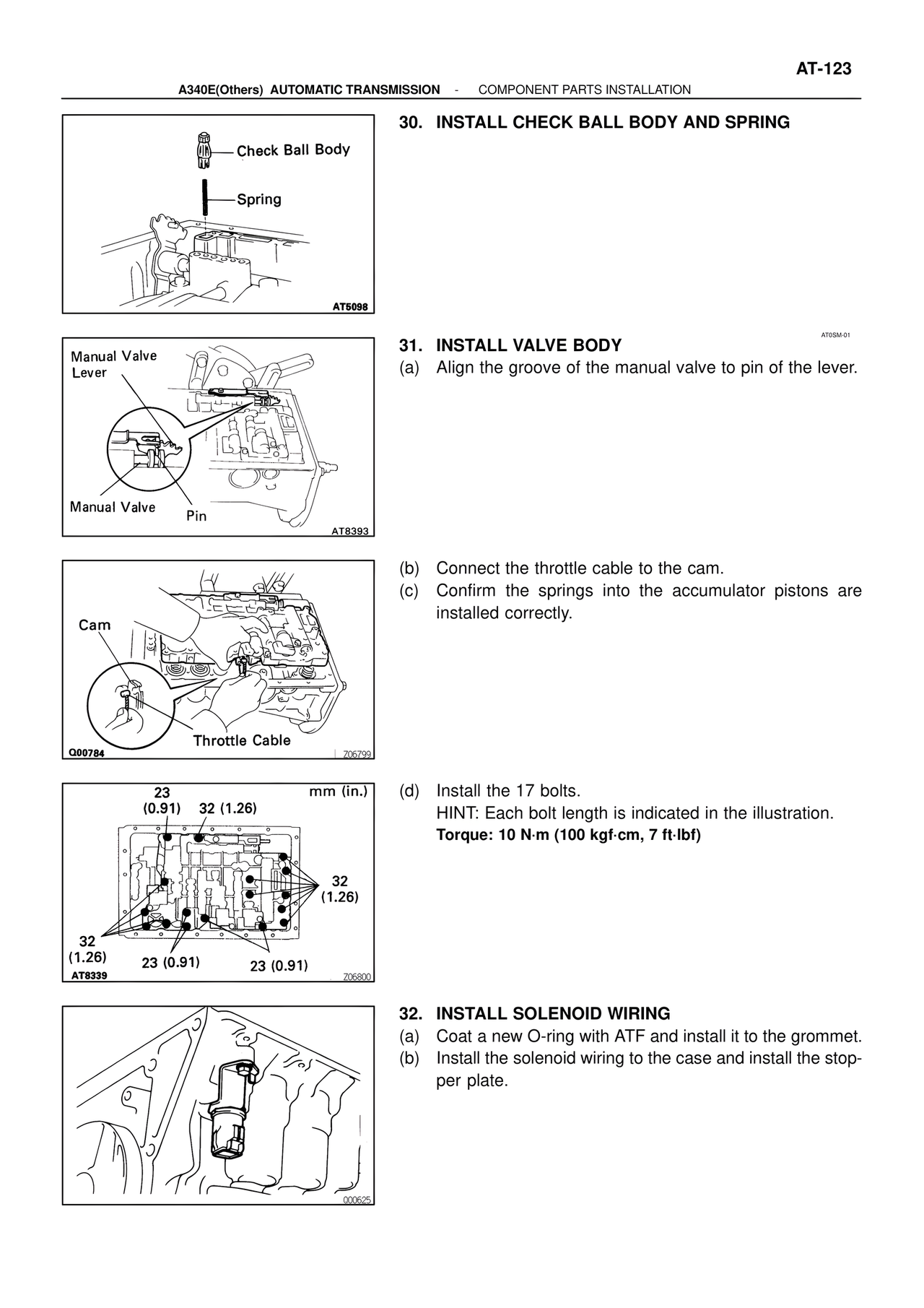

AT-123
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
Check Ball Body
Spring
AT5098
30. INSTALL CHECK BALL BODY AND SPRING
Manual Valve
Lever
Manual Valve
Pin
AT8393
31. INSTALL VALVE BODY
AT05M-01
(a) Align the groove of the manual valve to pin of the lever.
Cam
Throttle Cable
Q00784
Z06799
(b) Connect the throttle cable to the cam.
(c) Confirm the springs into the accumulator pistons are
installed correctly.
23
(0.91) 32 (1.26)
32
(1.26)
32
(1.26)
23 (0.91) 23 (0.91)
mm (in.)
AT8339
Z06800
(d) Install the 17 bolts.
HINT: Each bolt length is indicated in the illustration.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
32. INSTALL SOLENOID WIRING
(a) Coat a new O-ring with ATF and install it to the grommet.
(b) Install the solenoid wiring to the case and install the stop-
per plate.
Q00625
