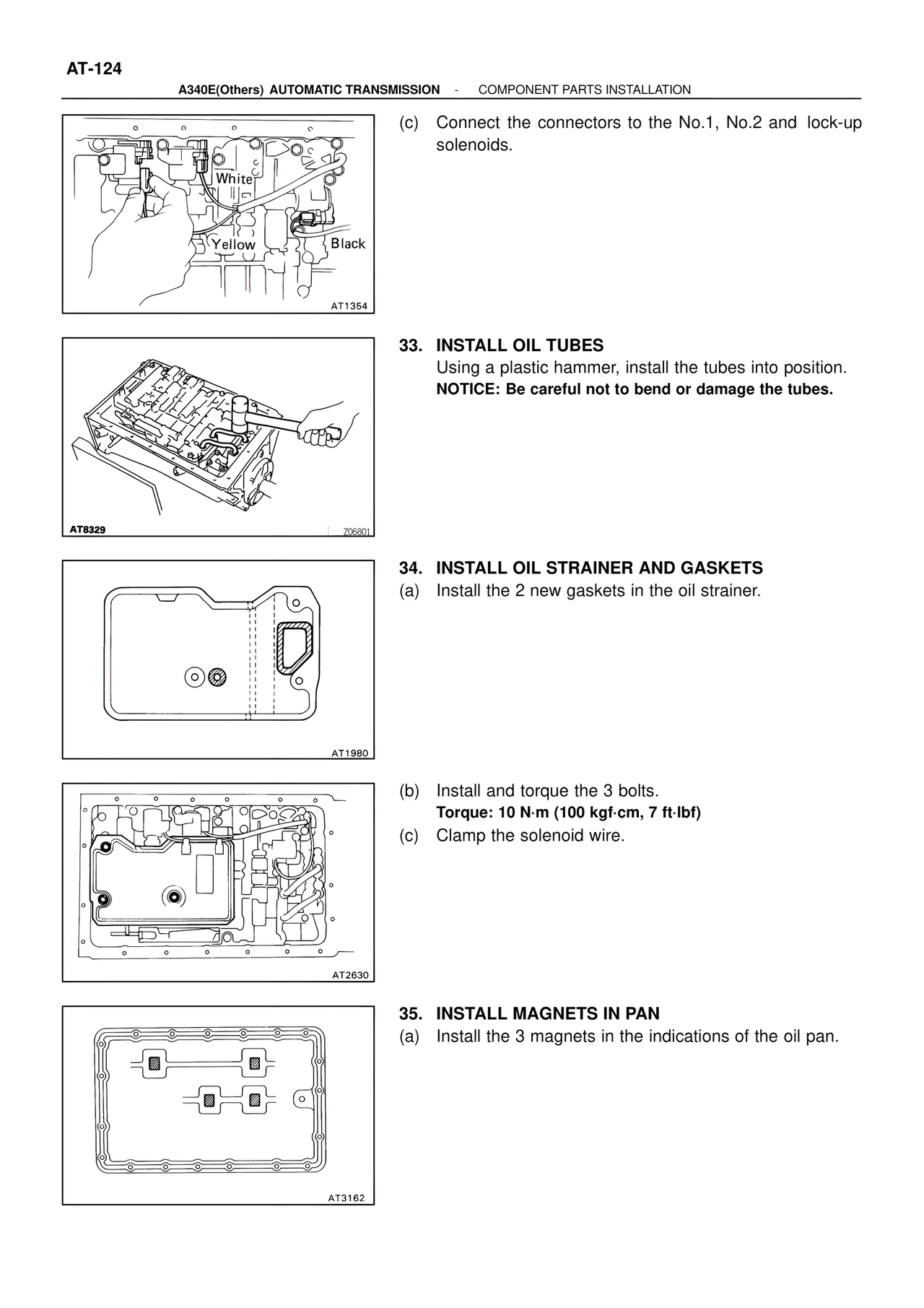

AT-124
A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION
(c) Connect the connectors to the No.1, No.2 and lock-up solenoids.
White
Yellow
Black
AT1354
33. INSTALL OIL TUBES
Using a plastic hammer, install the tubes into position.
NOTICE: Be careful not to bend or damage the tubes.
AT8329
Z06801
34. INSTALL OIL STRAINER AND GASKETS
(a) Install the 2 new gaskets in the oil strainer.
AT1980
(b) Install and torque the 3 bolts.
Torque: 10 N·m (100 kgf·cm, 7 ft·lbf)
(c) Clamp the solenoid wire.
AT2630
35. INSTALL MAGNETS IN PAN
(a) Install the 3 magnets in the indications of the oil pan.
AT3162
