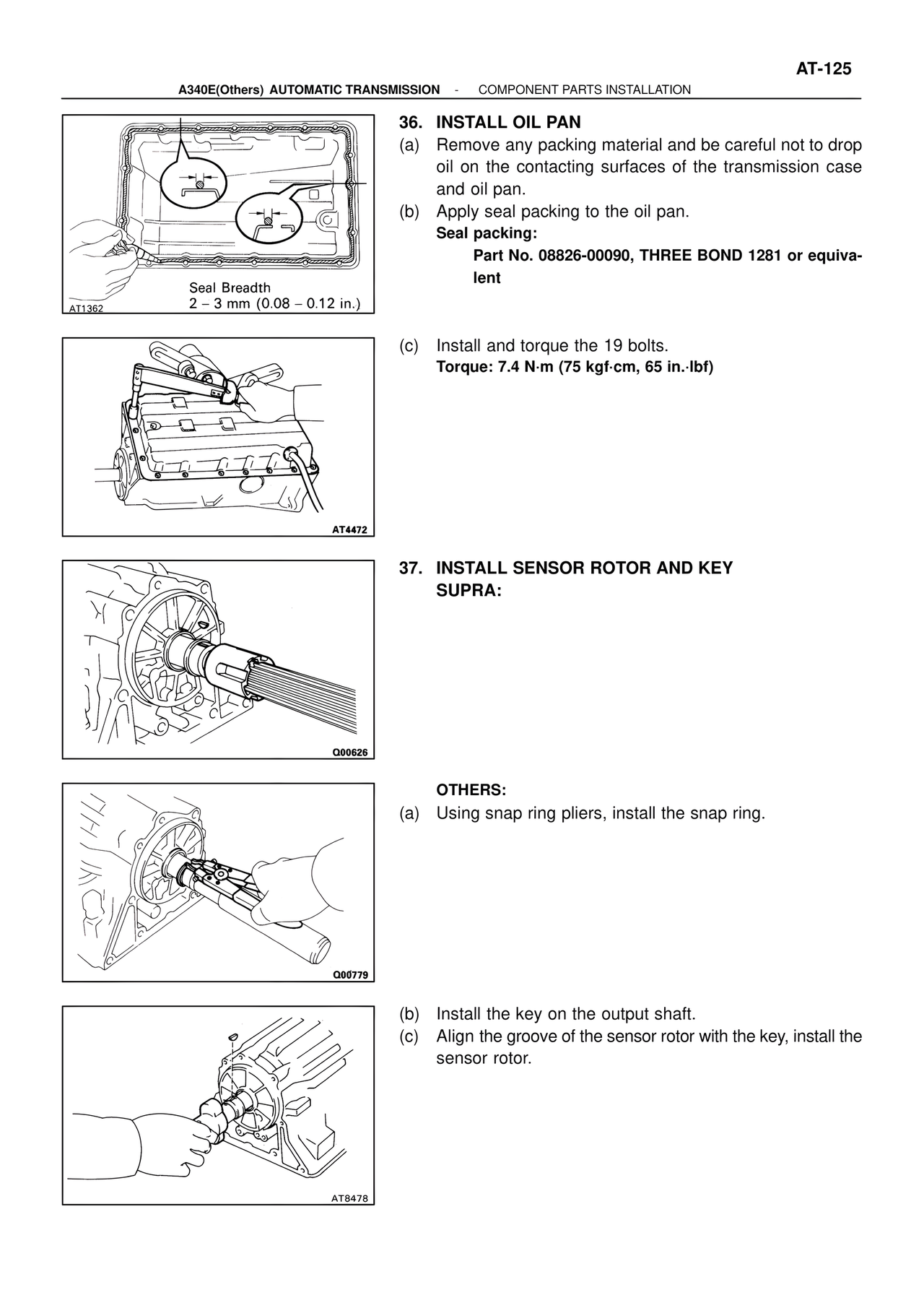

AT-125 A340E(Others) AUTOMATIC TRANSMISSION - COMPONENT PARTS INSTALLATION Seal Breadth 2 – 3 mm (0.08 – 0.12 in.) AT1362 AT4472 Q00626 Q00779 AT8478 36. INSTALL OIL PAN (a) Remove any packing material and be careful not to drop oil on the contacting surfaces of the transmission case and oil pan. (b) Apply seal packing to the oil pan. Seal packing: Part No. 08826-00090, THREE BOND 1281 or equivalent (c) Install and torque the 19 bolts. Torque: 7.4 N·m (75 kgf·cm, 65 in.·lbf) 37. INSTALL SENSOR ROTOR AND KEY SUPRA: OTHERS: (a) Using snap ring pliers, install the snap ring. (b) Install the key on the output shaft. (c) Align the groove of the sensor rotor with the key, install the sensor rotor.
