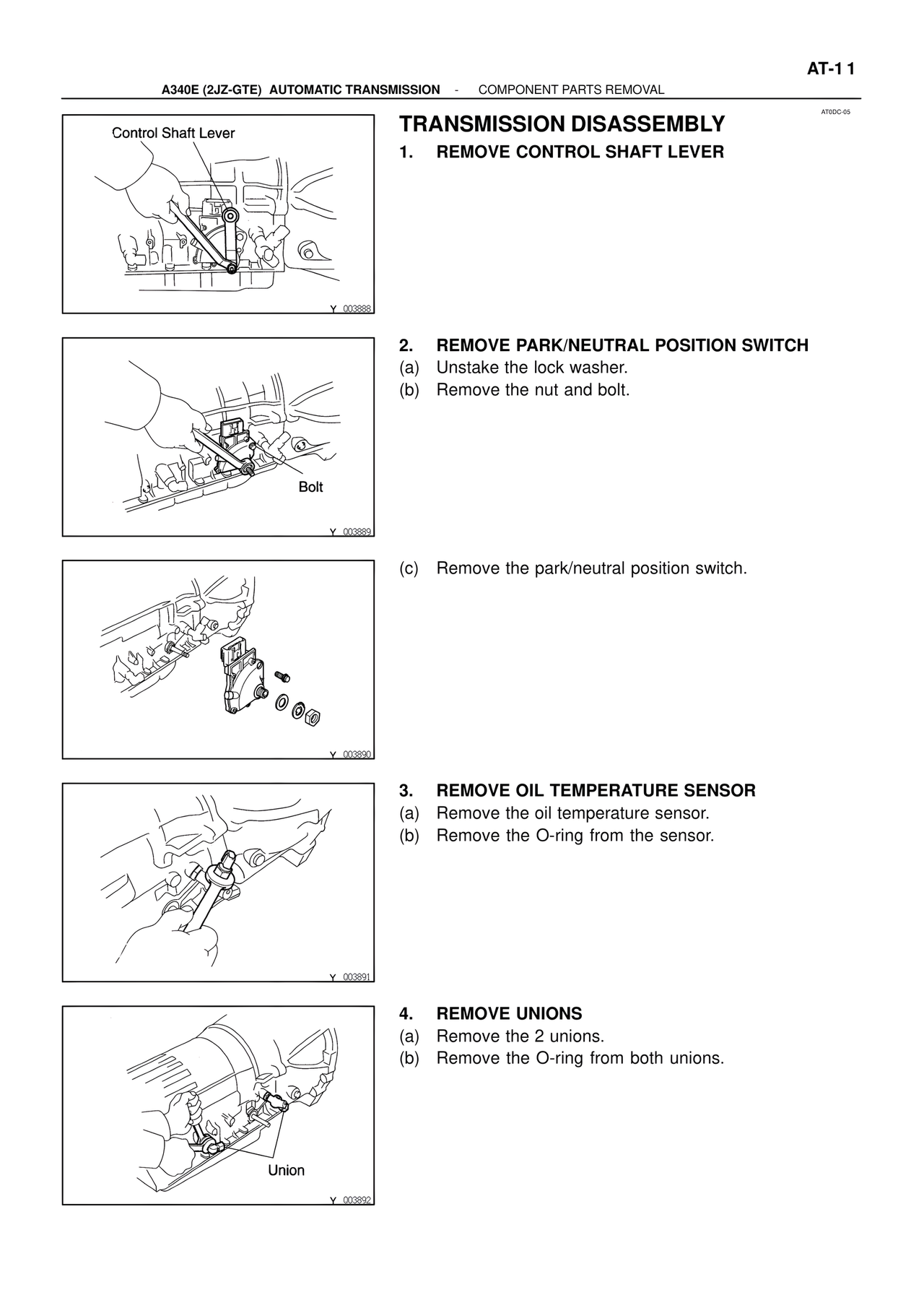

AT-1 1
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
AT0DC-05
Control Shaft Lever
TRANSMISSION DISASSEMBLY
1. REMOVE CONTROL SHAFT LEVER
Y_003888
Bolt
2. REMOVE PARK/NEUTRAL POSITION SWITCH
(a) Unstake the lock washer.
(b) Remove the nut and bolt.
Y_003889
(c) Remove the park/neutral position switch.
Y_003890
3. REMOVE OIL TEMPERATURE SENSOR
(a) Remove the oil temperature sensor.
(b) Remove the O-ring from the sensor.
Y_003891
Union
4. REMOVE UNIONS
(a) Remove the 2 unions.
(b) Remove the O-ring from both unions.
Y_003892
