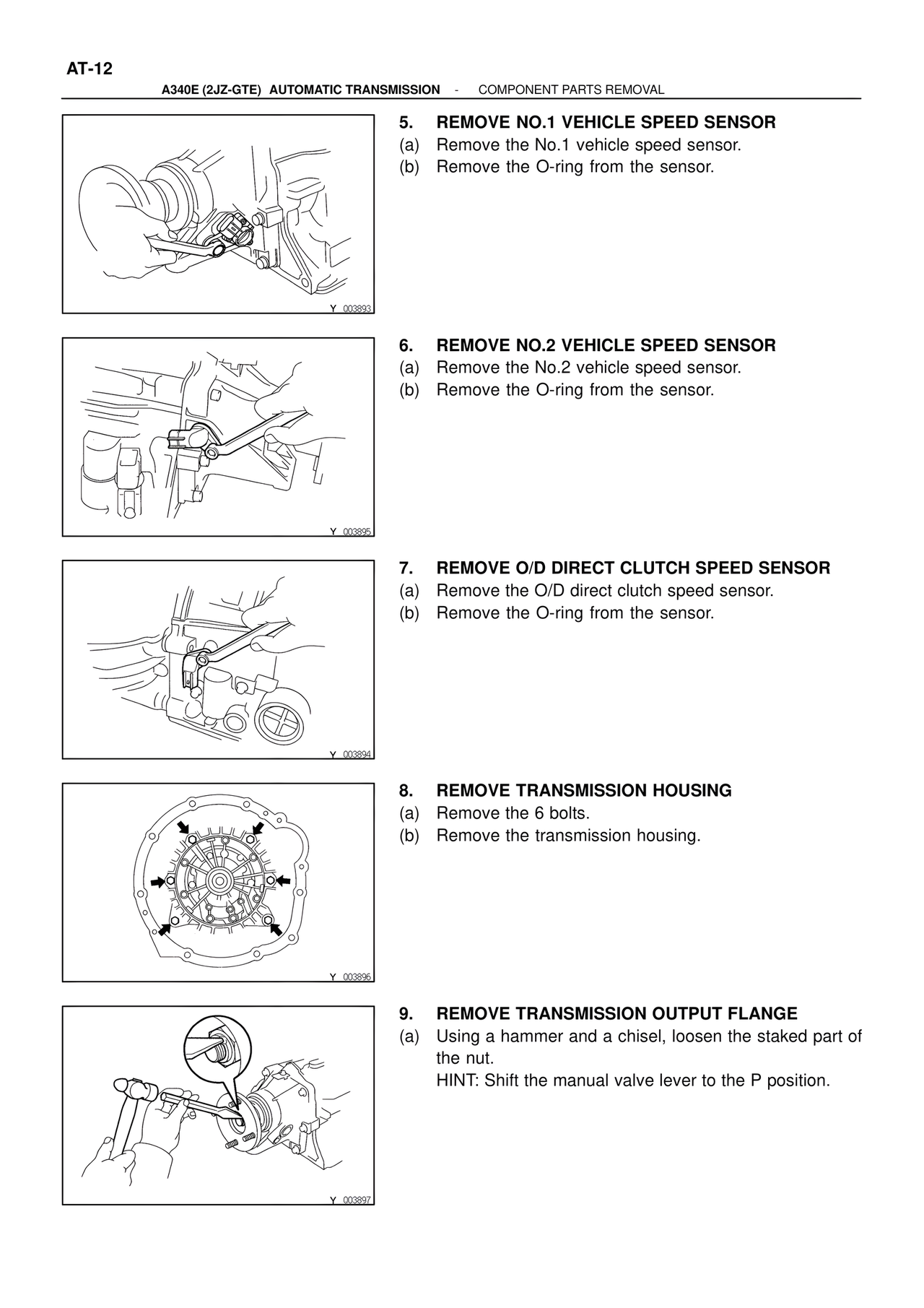

AT-12
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
5. REMOVE NO.1 VEHICLE SPEED SENSOR
(a) Remove the No.1 vehicle speed sensor.
(b) Remove the O-ring from the sensor.
Y_003893
6. REMOVE NO.2 VEHICLE SPEED SENSOR
(a) Remove the No.2 vehicle speed sensor.
(b) Remove the O-ring from the sensor.
Y_003895
7. REMOVE O/D DIRECT CLUTCH SPEED SENSOR
(a) Remove the O/D direct clutch speed sensor.
(b) Remove the O-ring from the sensor.
Y_003894
8. REMOVE TRANSMISSION HOUSING
(a) Remove the 6 bolts.
(b) Remove the transmission housing.
Y_003896
9. REMOVE TRANSMISSION OUTPUT FLANGE
(a) Using a hammer and a chisel, loosen the staked part of
the nut.
HINT: Shift the manual valve lever to the P position.
Y_003897
