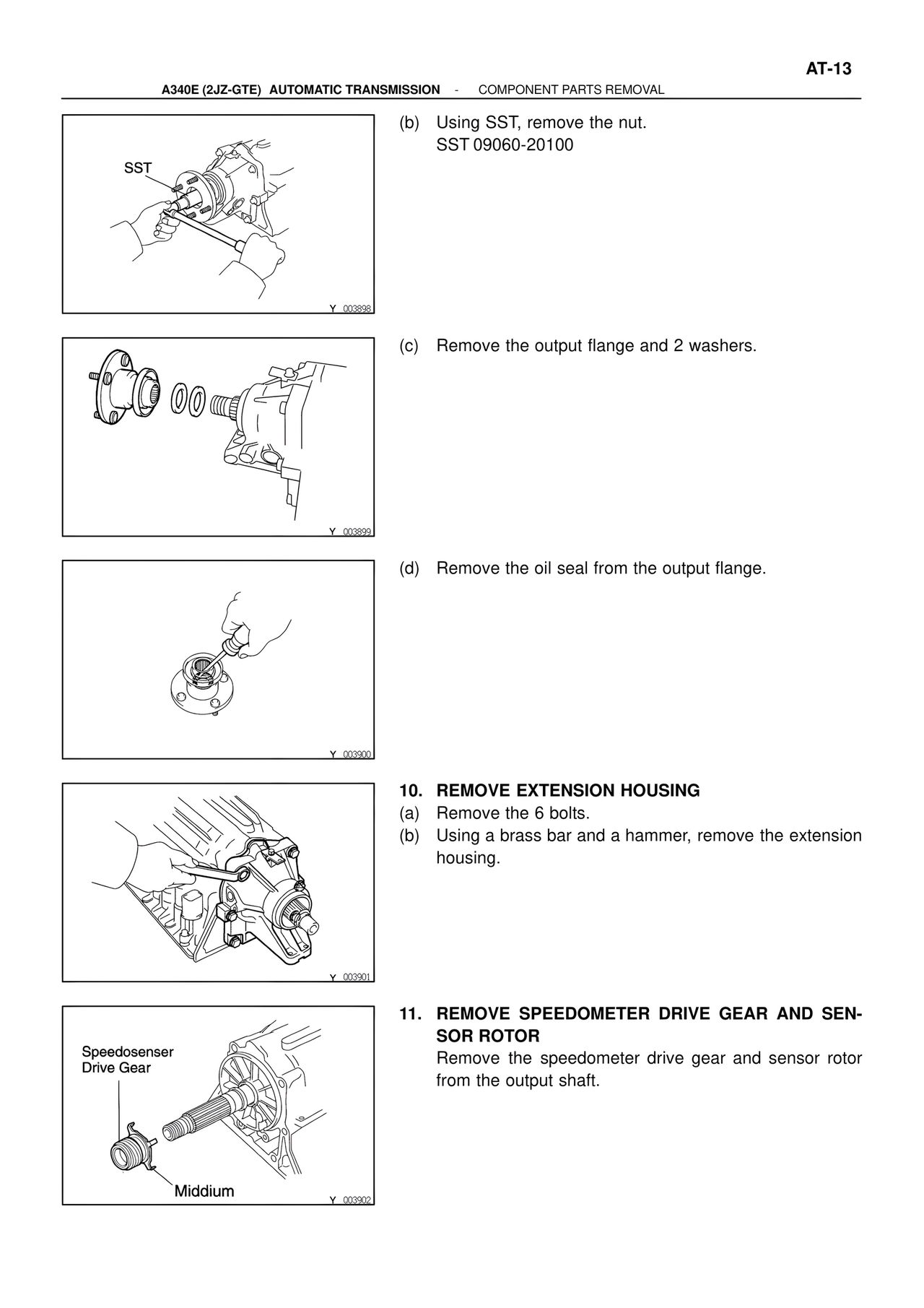

AT-13 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL SST (b) Using SST, remove the nut. SST 09060-20100 Y 003898 (c) Remove the output flange and 2 washers. Y 003899 (d) Remove the oil seal from the output flange. Y 003900 10. REMOVE EXTENSION HOUSING (a) Remove the 6 bolts. (b) Using a brass bar and a hammer, remove the extension housing. Y 003901 Speedosenser Drive Gear Middum Y 003902 11. REMOVE SPEEDOMETER DRIVE GEAR AND SEN- SOR ROTOR Remove the speedometer drive gear and sensor rotor from the output shaft.
