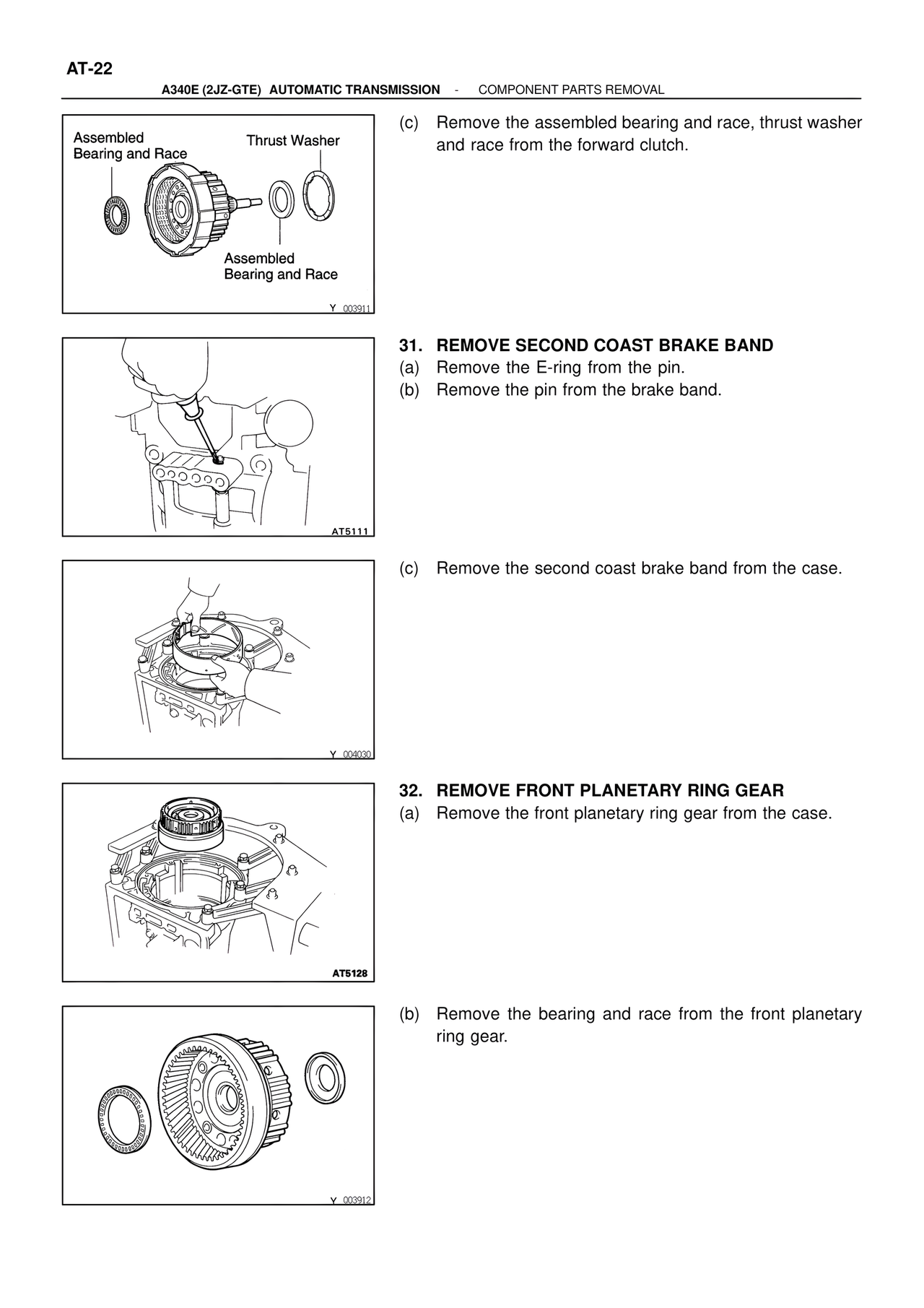

AT-22 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL Assembled Bearing and Race Thrust Washer Assembled Bearing and Race Y 003911 (c) Remove the assembled bearing and race, thrust washer and race from the forward clutch. 31. REMOVE SECOND COAST BRAKE BAND (a) Remove the E-ring from the pin. (b) Remove the pin from the brake band. AT5111 (c) Remove the second coast brake band from the case. Y 004030 32. REMOVE FRONT PLANETARY RING GEAR (a) Remove the front planetary ring gear from the case. AT5128 (b) Remove the bearing and race from the front planetary ring gear. Y 003912
