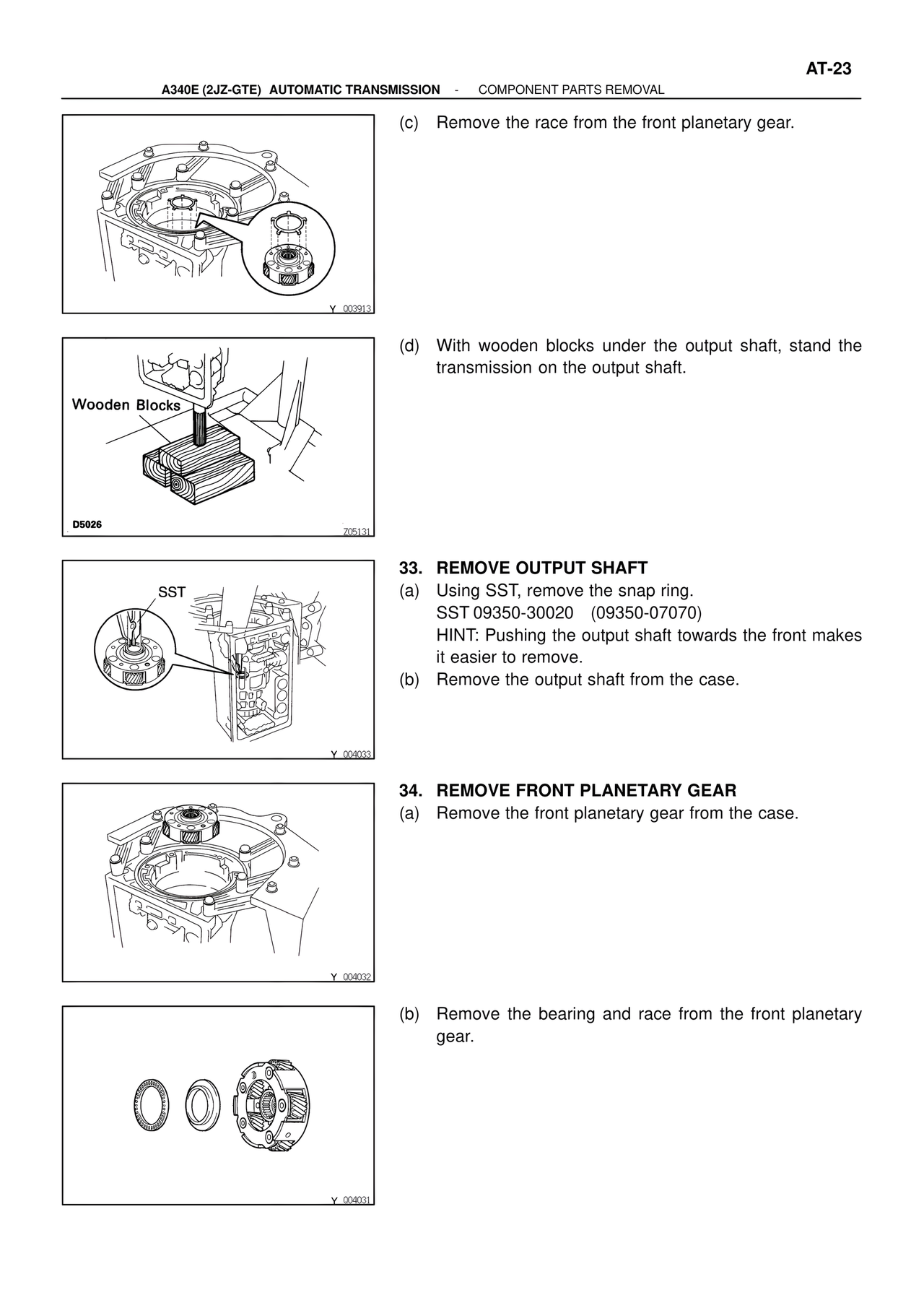

AT-23 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL (c) Remove the race from the front planetary gear. Y 003913 Wooden Blocks (d) With wooden blocks under the output shaft, stand the transmission on the output shaft. D5026 Z05131 SST 33. REMOVE OUTPUT SHAFT (a) Using SST, remove the snap ring. SST 09350-30020 (09350-07070) HINT: Pushing the output shaft towards the front makes it easier to remove. (b) Remove the output shaft from the case. Y 004033 34. REMOVE FRONT PLANETARY GEAR (a) Remove the front planetary gear from the case. Y 004032 (b) Remove the bearing and race from the front planetary gear. Y 004031
