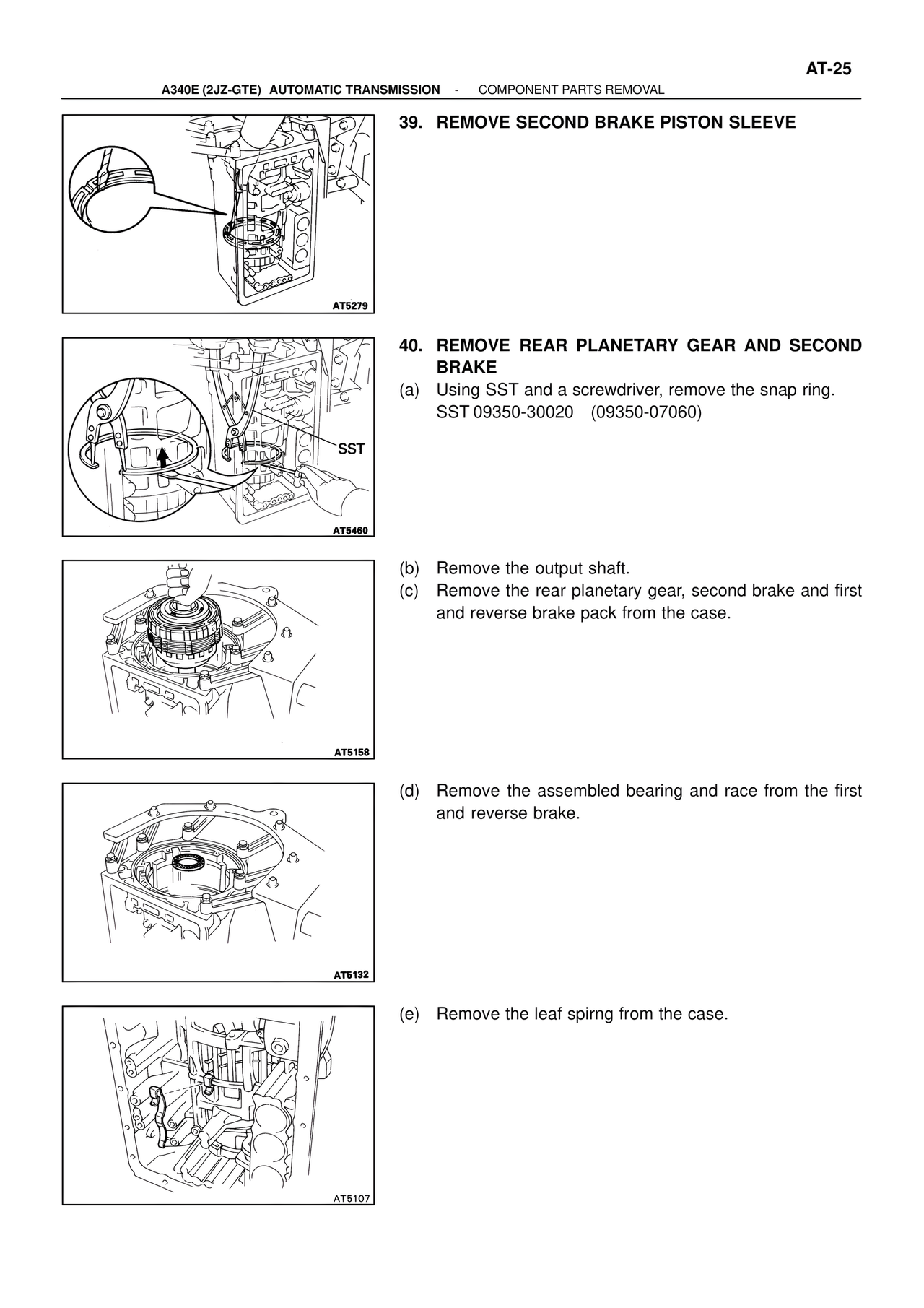

AT-25 A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL 39. REMOVE SECOND BRAKE PISTON SLEEVE AT5279 40. REMOVE REAR PLANETARY GEAR AND SECOND BRAKE (a) Using SST and a screwdriver, remove the snap ring. SST 09350-30020 (09350-07060) SST AT5460 (b) Remove the output shaft. (c) Remove the rear planetary gear, second brake and first and reverse brake pack from the case. AT5158 (d) Remove the assembled bearing and race from the first and reverse brake. AT5132 (e) Remove the leaf spirng from the case. AT5107
