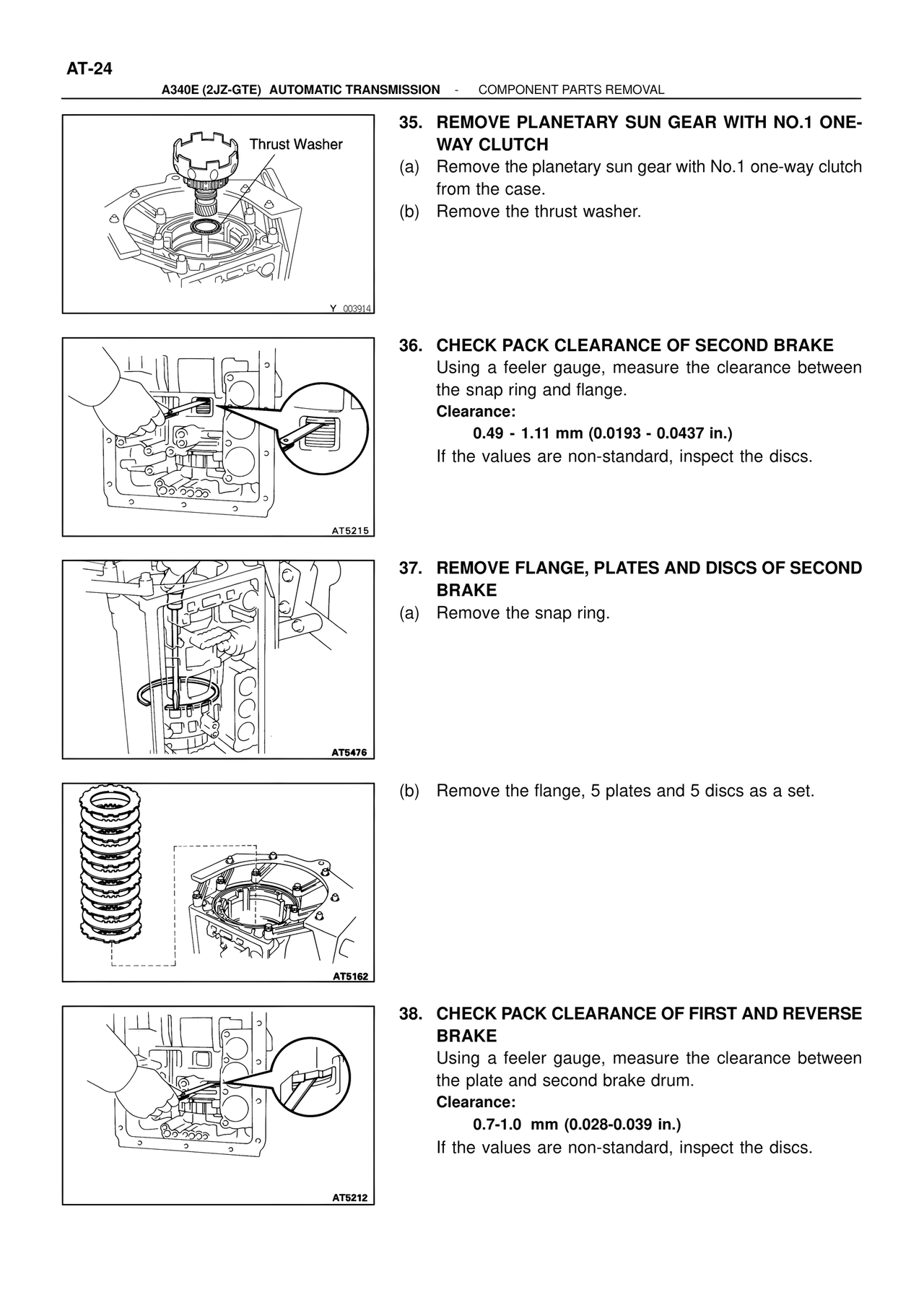

AT-24
A340E (2JZ-GTE) AUTOMATIC TRANSMISSION - COMPONENT PARTS REMOVAL
Thrust Washer
Y 003914
35. REMOVE PLANETARY SUN GEAR WITH NO.1 ONE-WAY CLUTCH
(a) Remove the planetary sun gear with No.1 one-way clutch from the case.
(b) Remove the thrust washer.
AT5215
36. CHECK PACK CLEARANCE OF SECOND BRAKE
Using a feeler gauge, measure the clearance between the snap ring and flange.
Clearance:
0.49 - 1.11 mm (0.0193 - 0.0437 in.)
If the values are non-standard, inspect the discs.
AT5476
37. REMOVE FLANGE, PLATES AND DISCS OF SECOND BRAKE
(a) Remove the snap ring.
AT5162
(b) Remove the flange, 5 plates and 5 discs as a set.
AT5212
38. CHECK PACK CLEARANCE OF FIRST AND REVERSE BRAKE
Using a feeler gauge, measure the clearance between the plate and second brake drum.
Clearance:
0.7-1.0 mm (0.028-0.039 in.)
If the values are non-standard, inspect the discs.
