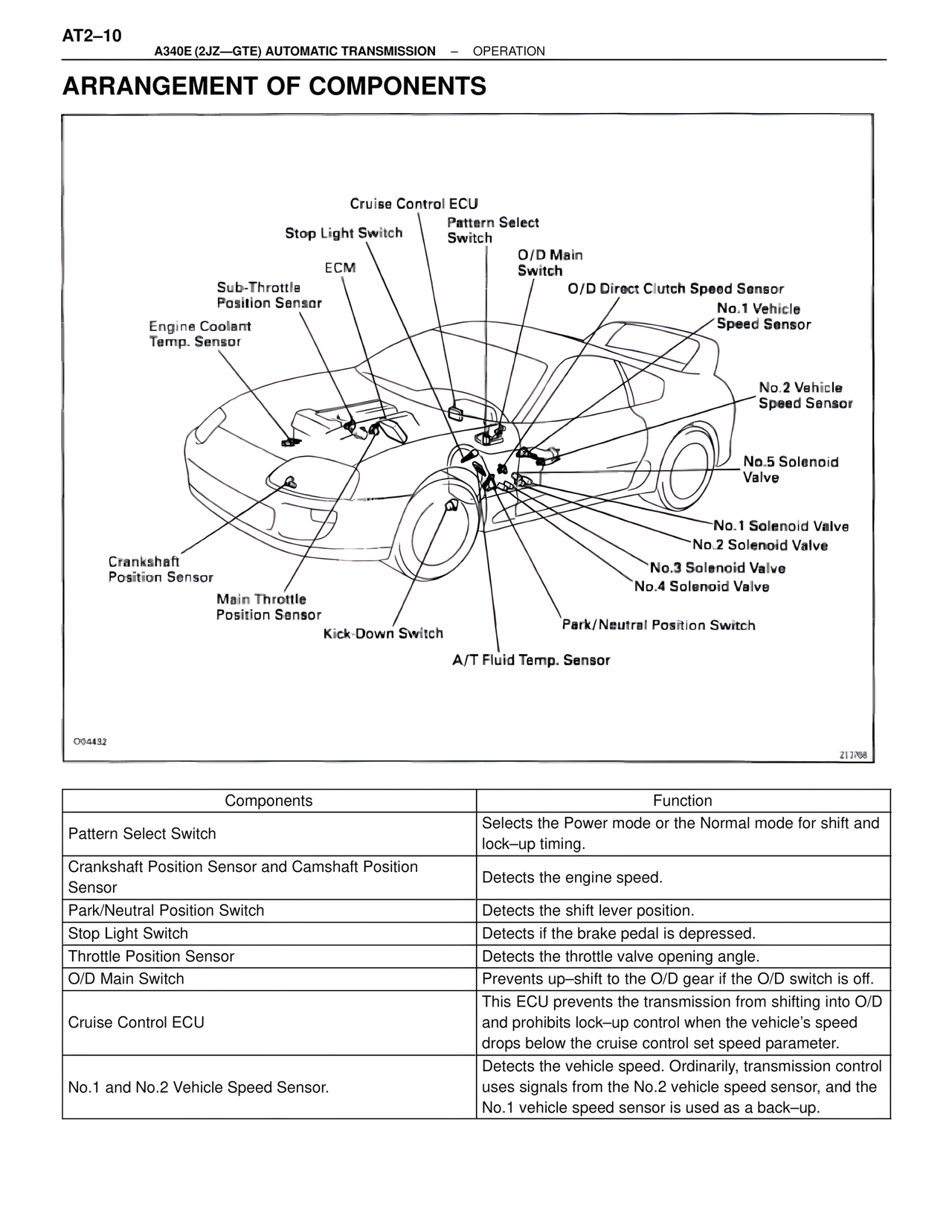

AT2–10 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – OPERATION ARRANGEMENT OF COMPONENTS Cruise Control ECU Stop Light Switch Pattern Select Switch O/D Main Switch ECM O/D Direct Clutch Speed Sensor Sub-Throttle Position Sensor No.1 Vehicle Speed Sensor Engine Coolant Temp. Sensor No.2 Vehicle Speed Sensor No.5 Solenoid Valve No.1 Solenoid Valve No.2 Solenoid Valve No.3 Solenoid Valve No.4 Solenoid Valve Crankshaft Position Sensor Park/Neutral Position Switch Main Throttle Position Sensor Kick-Down Switch A/T Fluid Temp. Sensor O04432 213768 Components | Function Pattern Select Switch | Selects the Power mode or the Normal mode for shift and lock–up timing. Crankshaft Position Sensor and Camshaft Position Sensor | Detects the engine speed. Park/Neutral Position Switch | Detects the shift lever position. Stop Light Switch | Detects if the brake pedal is depressed. Throttle Position Sensor | Detects the throttle valve opening angle. O/D Main Switch | Prevents up–shift to the O/D gear if the O/D switch is off. Cruise Control ECU | This ECU prevents the transmission from shifting into O/D and prohibits lock–up control when the vehicle's speed drops below the cruise control set speed parameter. No.1 and No.2 Vehicle Speed Sensor. | Detects the vehicle speed. Ordinarily, transmission control uses signals from the No.2 vehicle speed sensor, and the No.1 vehicle speed sensor is used as a back–up.
