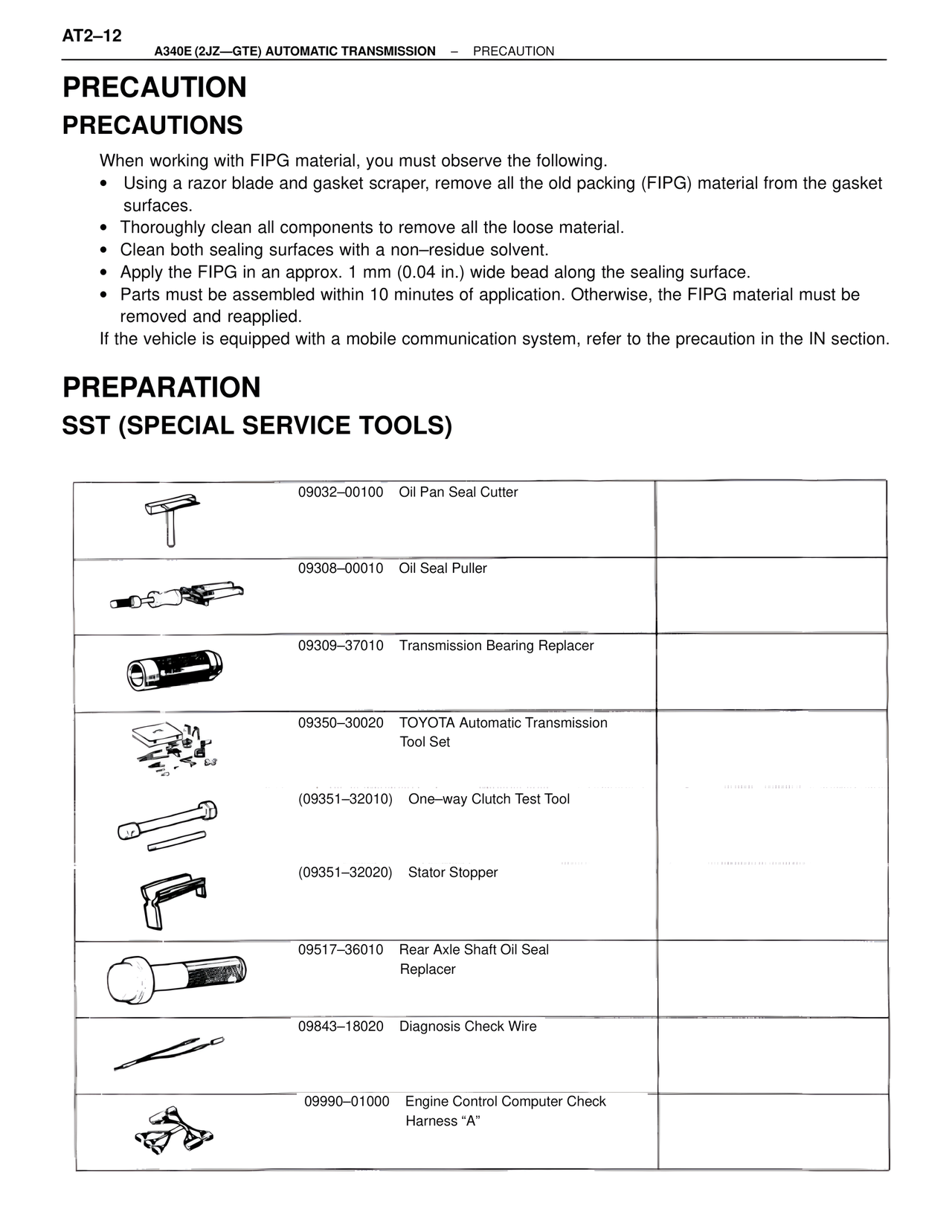

AT2–12 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – PRECAUTION PRECAUTION PRECAUTIONS When working with FIPG material, you must observe the following. • Using a razor blade and gasket scraper, remove all the old packing (FIPG) material from the gasket surfaces. • Thoroughly clean all components to remove all the loose material. • Clean both sealing surfaces with a non–residue solvent. • Apply the FIPG in an approx. 1 mm (0.04 in.) wide bead along the sealing surface. • Parts must be assembled within 10 minutes of application. Otherwise, the FIPG material must be removed and reapplied. If the vehicle is equipped with a mobile communication system, refer to the precaution in the IN section. PREPARATION SST (SPECIAL SERVICE TOOLS) 09032–00100 Oil Pan Seal Cutter 09308–00010 Oil Seal Puller 09309–37010 Transmission Bearing Replacer 09350–30020 TOYOTA Automatic Transmission Tool Set (09351–32010) One–way Clutch Test Tool (09351–32020) Stator Stopper 09517–36010 Rear Axle Shaft Oil Seal Replacer 09843–18020 Diagnosis Check Wire 09990–01000 Engine Control Computer Check Harness "A"
