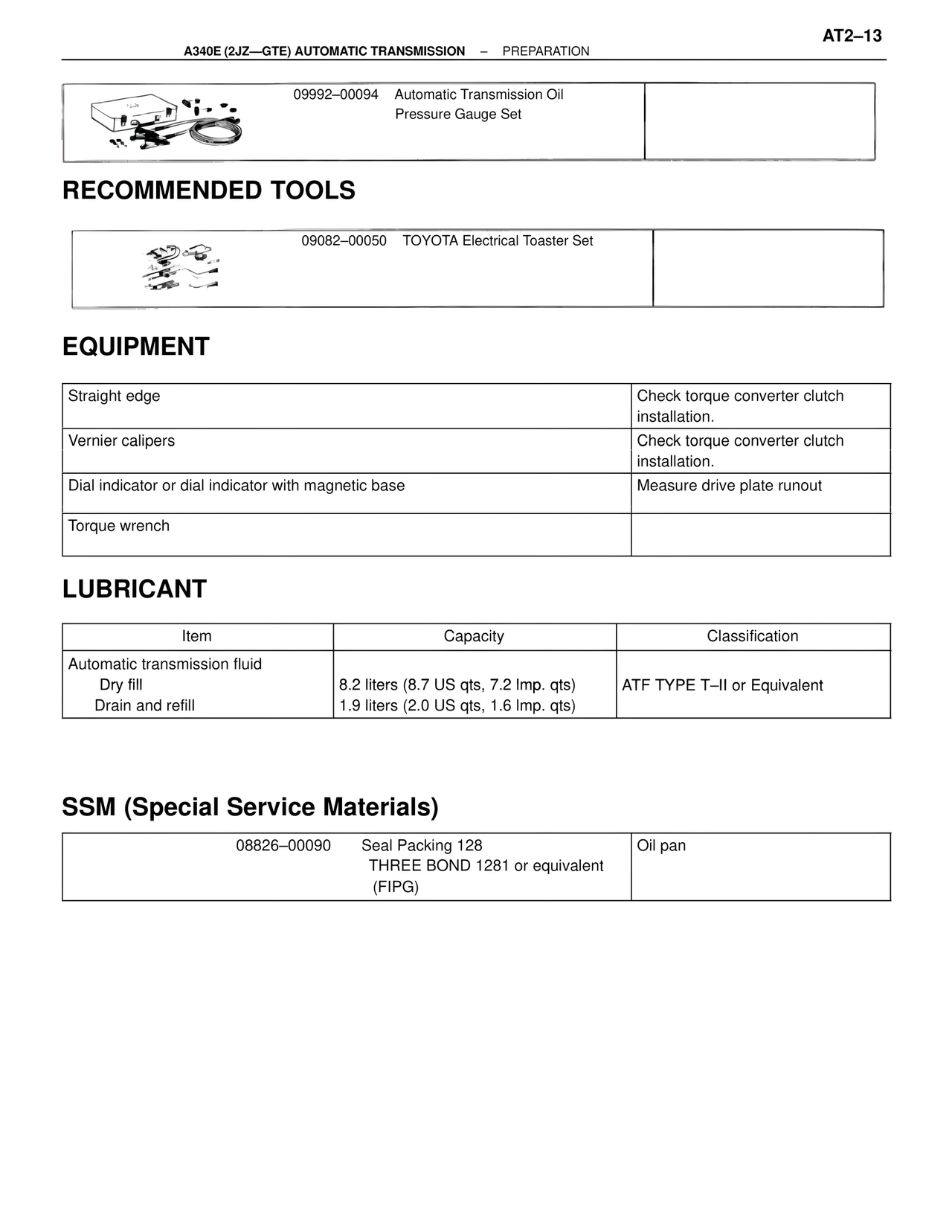

AT2–13 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – PREPARATION 09992–00094 Automatic Transmission Oil Pressure Gauge Set RECOMMENDED TOOLS 09082–00050 TOYOTA Electrical Toaster Set EQUIPMENT Straight edge Check torque converter clutch installation. Vernier calipers Check torque converter clutch installation. Dial indicator or dial indicator with magnetic base Measure drive plate runout Torque wrench LUBRICANT Item Capacity Classification Automatic transmission fluid Dry fill 8.2 liters (8.7 US qts, 7.2 Imp. qts) ATF TYPE T–II or Equivalent Drain and refill 1.9 liters (2.0 US qts, 1.6 Imp. qts) SSM (Special Service Materials) 08826–00090 Seal Packing 128 Oil pan THREE BOND 1281 or equivalent (FIPG)
