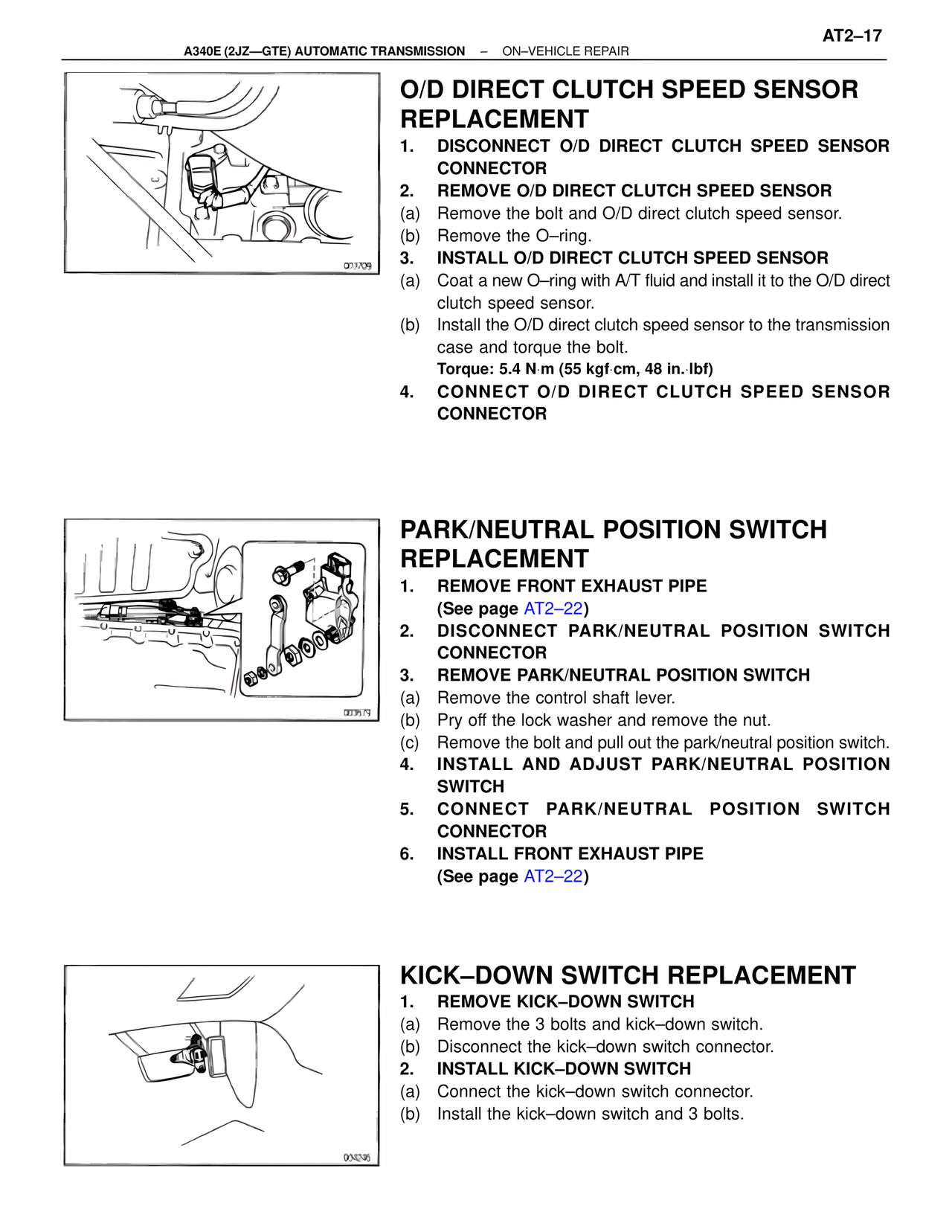

AT2–17 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR O/D DIRECT CLUTCH SPEED SENSOR REPLACEMENT 1. DISCONNECT O/D DIRECT CLUTCH SPEED SENSOR CONNECTOR 2. REMOVE O/D DIRECT CLUTCH SPEED SENSOR (a) Remove the bolt and O/D direct clutch speed sensor. (b) Remove the O–ring. 3. INSTALL O/D DIRECT CLUTCH SPEED SENSOR (a) Coat a new O–ring with A/T fluid and install it to the O/D direct clutch speed sensor. (b) Install the O/D direct clutch speed sensor to the transmission case and torque the bolt. Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf) 4. CONNECT O/D DIRECT CLUTCH SPEED SENSOR CONNECTOR 001709 PARK/NEUTRAL POSITION SWITCH REPLACEMENT 1. REMOVE FRONT EXHAUST PIPE (See page AT2–22) 2. DISCONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR 3. REMOVE PARK/NEUTRAL POSITION SWITCH (a) Remove the control shaft lever. (b) Pry off the lock washer and remove the nut. (c) Remove the bolt and pull out the park/neutral position switch. 4. INSTALL AND ADJUST PARK/NEUTRAL POSITION SWITCH 5. CONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR 6. INSTALL FRONT EXHAUST PIPE (See page AT2–22) 003679 KICK–DOWN SWITCH REPLACEMENT 1. REMOVE KICK–DOWN SWITCH (a) Remove the 3 bolts and kick–down switch. (b) Disconnect the kick–down switch connector. 2. INSTALL KICK–DOWN SWITCH (a) Connect the kick–down switch connector. (b) Install the kick–down switch and 3 bolts. 004295
