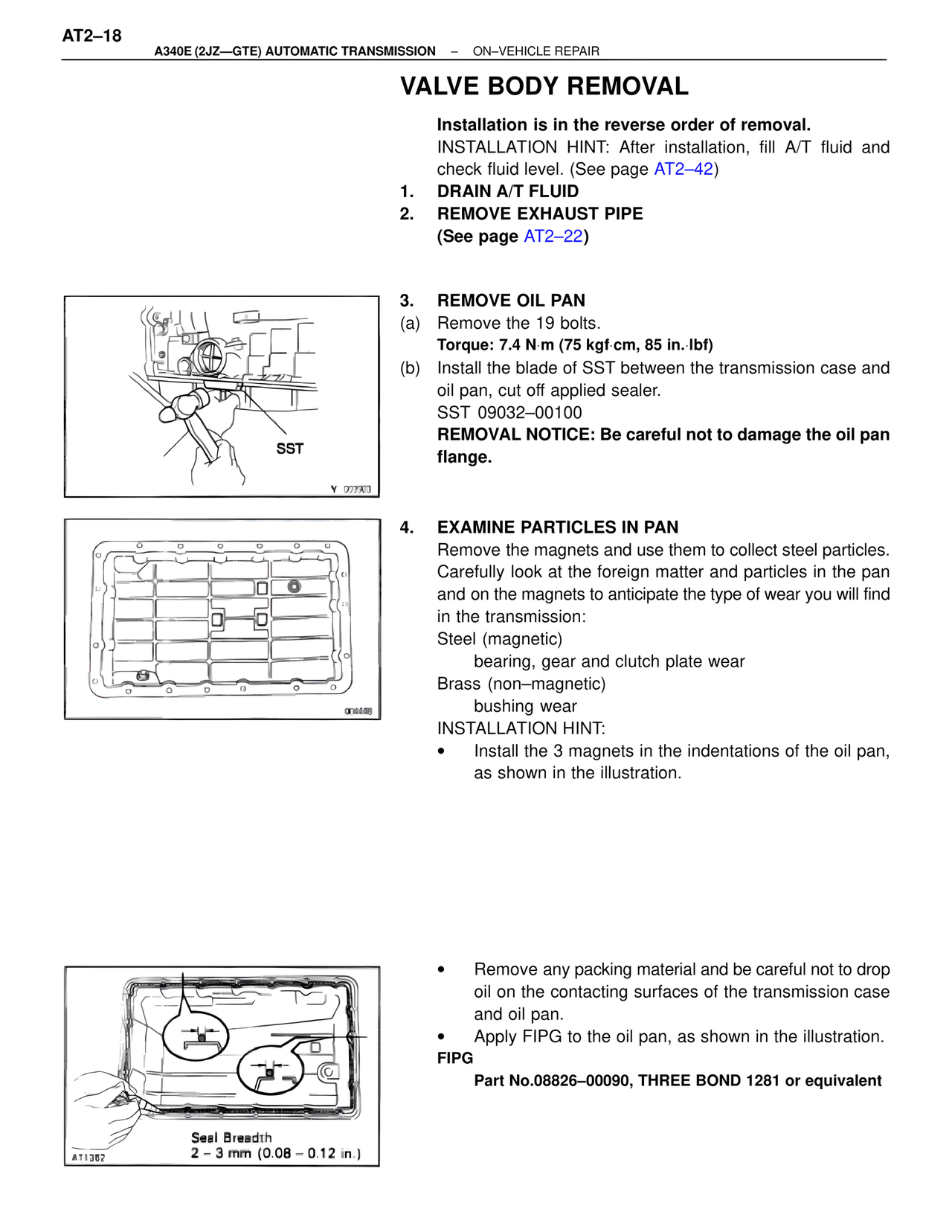

AT2–18 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ON–VEHICLE REPAIR VALVE BODY REMOVAL Installation is in the reverse order of removal. INSTALLATION HINT: After installation, fill A/T fluid and check fluid level. (See page AT2–42) 1. DRAIN A/T FLUID 2. REMOVE EXHAUST PIPE (See page AT2–22) 3. REMOVE OIL PAN (a) Remove the 19 bolts. Torque: 7.4 N·m (75 kgf·cm, 85 in.·lbf) (b) Install the blade of SST between the transmission case and oil pan, cut off applied sealer. SST 09032–00100 REMOVAL NOTICE: Be careful not to damage the oil pan flange. SST Y 007303 4. EXAMINE PARTICLES IN PAN Remove the magnets and use them to collect steel particles. Carefully look at the foreign matter and particles in the pan and on the magnets to anticipate the type of wear you will find in the transmission: Steel (magnetic) bearing, gear and clutch plate wear Brass (non–magnetic) bushing wear INSTALLATION HINT: • Install the 3 magnets in the indentations of the oil pan, as shown in the illustration. 004488 • Remove any packing material and be careful not to drop oil on the contacting surfaces of the transmission case and oil pan. • Apply FIPG to the oil pan, as shown in the illustration. FIPG Part No.08826–00090, THREE BOND 1281 or equivalent Seal Breadth 2 – 3 mm (0.08 – 0.12 in.) AT1362
