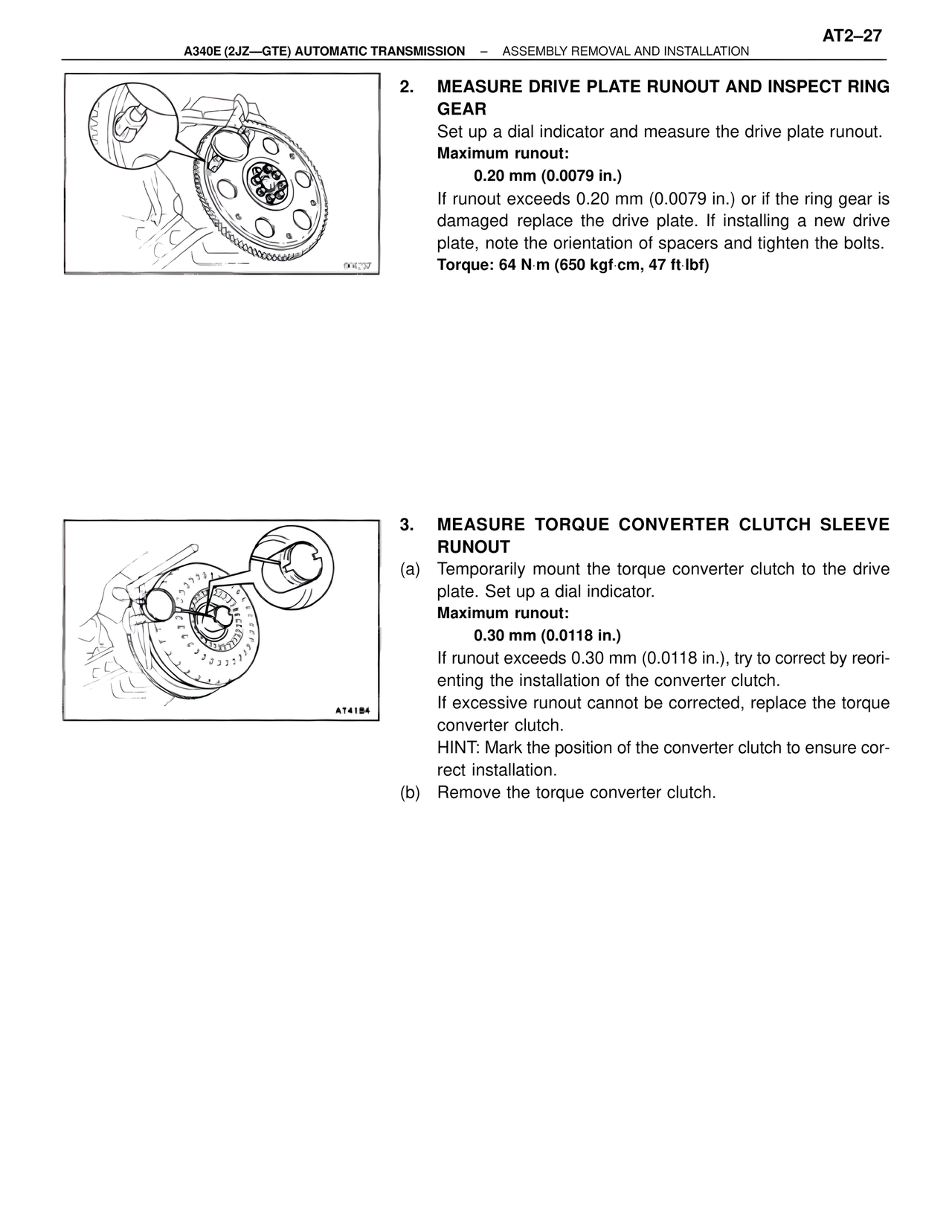

AT2–27 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION 2. MEASURE DRIVE PLATE RUNOUT AND INSPECT RING GEAR Set up a dial indicator and measure the drive plate runout. Maximum runout: 0.20 mm (0.0079 in.) If runout exceeds 0.20 mm (0.0079 in.) or if the ring gear is damaged replace the drive plate. If installing a new drive plate, note the orientation of spacers and tighten the bolts. Torque: 64 N·m (650 kgf·cm, 47 ft·lbf) 004237 3. MEASURE TORQUE CONVERTER CLUTCH SLEEVE RUNOUT (a) Temporarily mount the torque converter clutch to the drive plate. Set up a dial indicator. Maximum runout: 0.30 mm (0.0118 in.) If runout exceeds 0.30 mm (0.0118 in.), try to correct by reorienting the installation of the converter clutch. If excessive runout cannot be corrected, replace the torque converter clutch. HINT: Mark the position of the converter clutch to ensure correct installation. (b) Remove the torque converter clutch. AT4184
