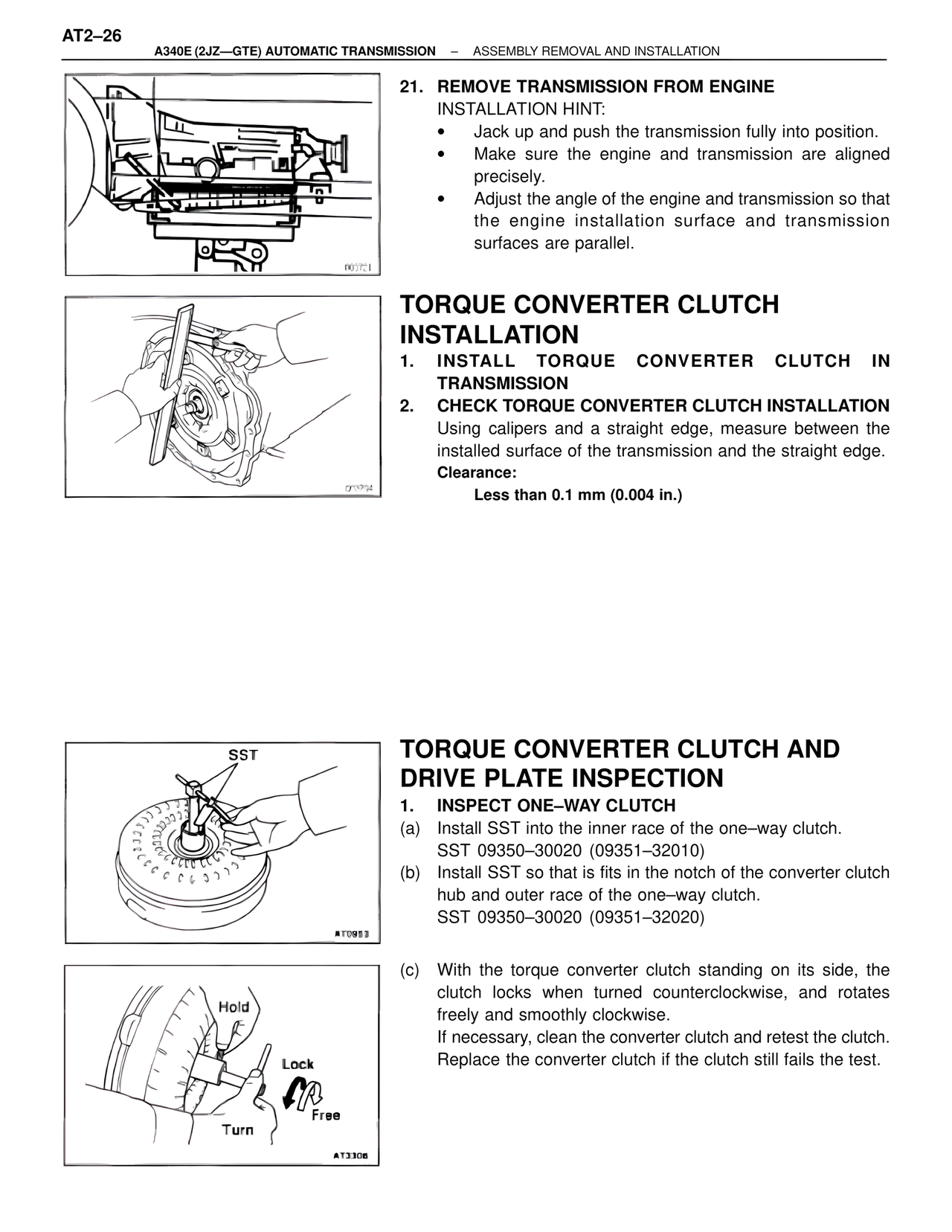

AT2–26 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – ASSEMBLY REMOVAL AND INSTALLATION 21. REMOVE TRANSMISSION FROM ENGINE INSTALLATION HINT: • Jack up and push the transmission fully into position. • Make sure the engine and transmission are aligned precisely. • Adjust the angle of the engine and transmission so that the engine installation surface and transmission surfaces are parallel. TORQUE CONVERTER CLUTCH INSTALLATION 1. INSTALL TORQUE CONVERTER CLUTCH IN TRANSMISSION 2. CHECK TORQUE CONVERTER CLUTCH INSTALLATION Using calipers and a straight edge, measure between the installed surface of the transmission and the straight edge. Clearance: Less than 0.1 mm (0.004 in.) TORQUE CONVERTER CLUTCH AND DRIVE PLATE INSPECTION 1. INSPECT ONE–WAY CLUTCH (a) Install SST into the inner race of the one–way clutch. SST 09350–30020 (09351–32010) (b) Install SST so that is fits in the notch of the converter clutch hub and outer race of the one–way clutch. SST 09350–30020 (09351–32020) (c) With the torque converter clutch standing on its side, the clutch locks when turned counterclockwise, and rotates freely and smoothly clockwise. If necessary, clean the converter clutch and retest the clutch. Replace the converter clutch if the clutch still fails the test. SST AT0953 Hold Lock Free Turn AT3306
