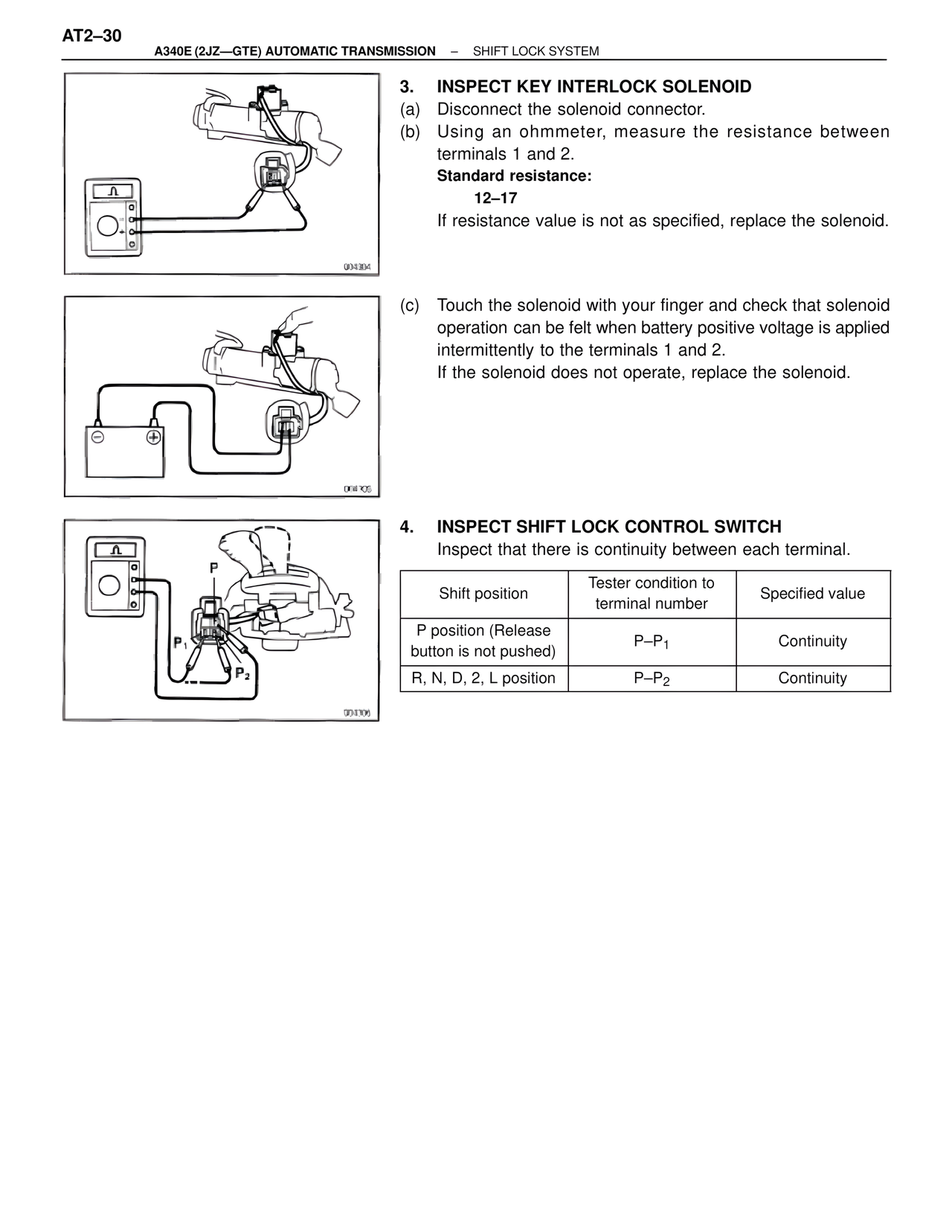

AT2–30 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – SHIFT LOCK SYSTEM 3. INSPECT KEY INTERLOCK SOLENOID (a) Disconnect the solenoid connector. (b) Using an ohmmeter, measure the resistance between terminals 1 and 2. Standard resistance: 12–17 If resistance value is not as specified, replace the solenoid. (c) Touch the solenoid with your finger and check that solenoid operation can be felt when battery positive voltage is applied intermittently to the terminals 1 and 2. If the solenoid does not operate, replace the solenoid. 4. INSPECT SHIFT LOCK CONTROL SWITCH Inspect that there is continuity between each terminal. Shift position | Tester condition to terminal number | Specified value P position (Release button is not pushed) | P–P1 | Continuity R, N, D, 2, L position | P–P2 | Continuity 004304 004305 004306
