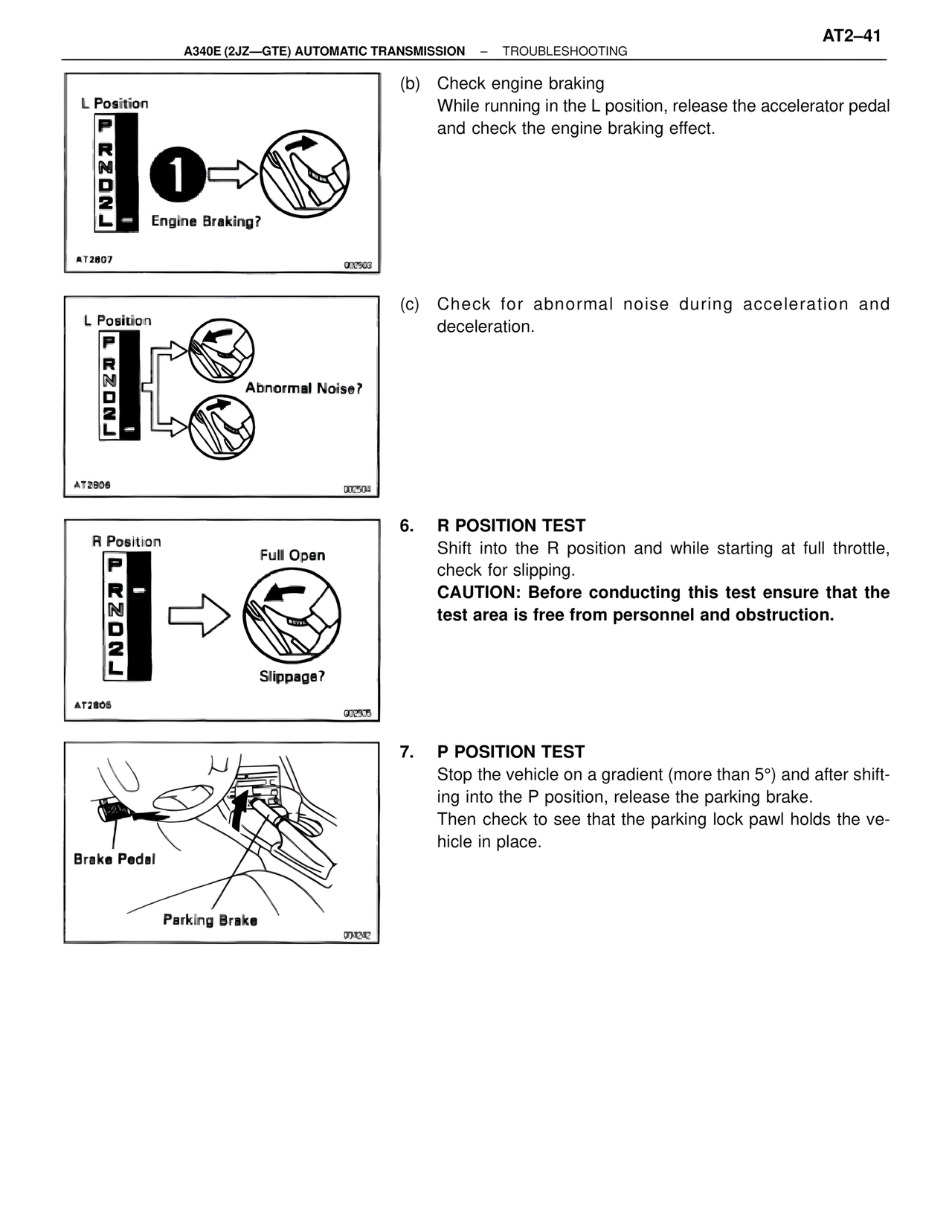

AT2–41
A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING
L Position
P
R
N
D
2
L
Engine Braking?
AT2807
002503
(b) Check engine braking
While running in the L position, release the accelerator pedal
and check the engine braking effect.
L Position
P
R
N
D
2
L
Abnormal Noise?
AT2806
002504
(c) Check for abnormal noise during acceleration and
deceleration.
R Position
P
R
N
D
2
L
Full Open
Slippage?
AT2805
002505
6. R POSITION TEST
Shift into the R position and while starting at full throttle,
check for slipping.
CAUTION: Before conducting this test ensure that the
test area is free from personnel and obstruction.
Brake Pedal
Parking Brake
004242
7. P POSITION TEST
Stop the vehicle on a gradient (more than 5°) and after shift-
ing into the P position, release the parking brake.
Then check to see that the parking lock pawl holds the ve-
hicle in place.
