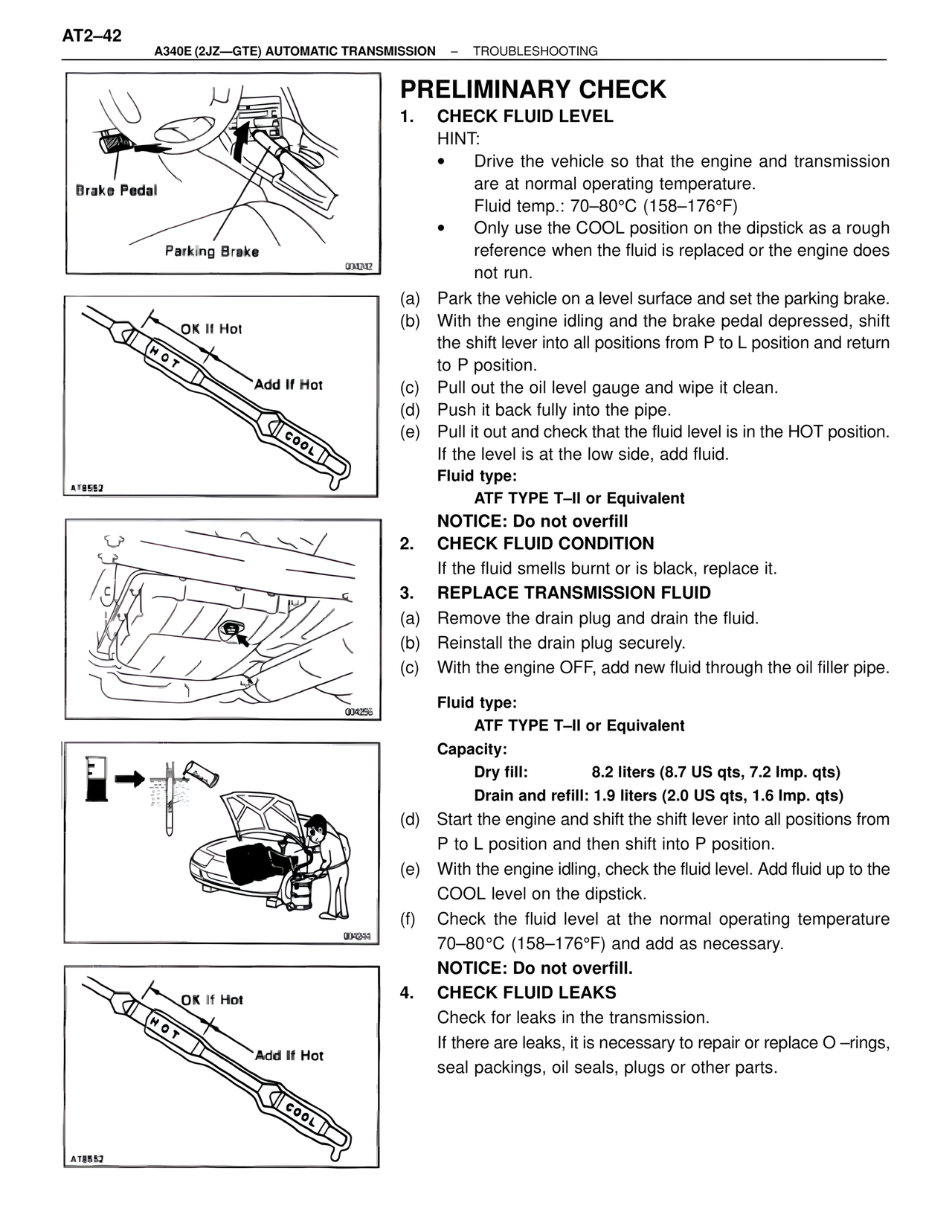

AT2–42 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING Brake Pedal Parking Brake 004242 OK If Hot HOT Add If Hot COOL AT8552 004256 004244 OK If Hot HOT Add If Hot COOL AT8553 PRELIMINARY CHECK 1. CHECK FLUID LEVEL HINT: • Drive the vehicle so that the engine and transmission are at normal operating temperature. Fluid temp.: 70–80°C (158–176°F) • Only use the COOL position on the dipstick as a rough reference when the fluid is replaced or the engine does not run. (a) Park the vehicle on a level surface and set the parking brake. (b) With the engine idling and the brake pedal depressed, shift the shift lever into all positions from P to L position and return to P position. (c) Pull out the oil level gauge and wipe it clean. (d) Push it back fully into the pipe. (e) Pull it out and check that the fluid level is in the HOT position. If the level is at the low side, add fluid. Fluid type: ATF TYPE T–II or Equivalent NOTICE: Do not overfill 2. CHECK FLUID CONDITION If the fluid smells burnt or is black, replace it. 3. REPLACE TRANSMISSION FLUID (a) Remove the drain plug and drain the fluid. (b) Reinstall the drain plug securely. (c) With the engine OFF, add new fluid through the oil filler pipe. Fluid type: ATF TYPE T–II or Equivalent Capacity: Dry fill: 8.2 liters (8.7 US qts, 7.2 Imp. qts) Drain and refill: 1.9 liters (2.0 US qts, 1.6 Imp. qts) (d) Start the engine and shift the shift lever into all positions from P to L position and then shift into P position. (e) With the engine idling, check the fluid level. Add fluid up to the COOL level on the dipstick. (f) Check the fluid level at the normal operating temperature 70–80°C (158–176°F) and add as necessary. NOTICE: Do not overfill. 4. CHECK FLUID LEAKS Check for leaks in the transmission. If there are leaks, it is necessary to repair or replace O –rings, seal packings, oil seals, plugs or other parts.
