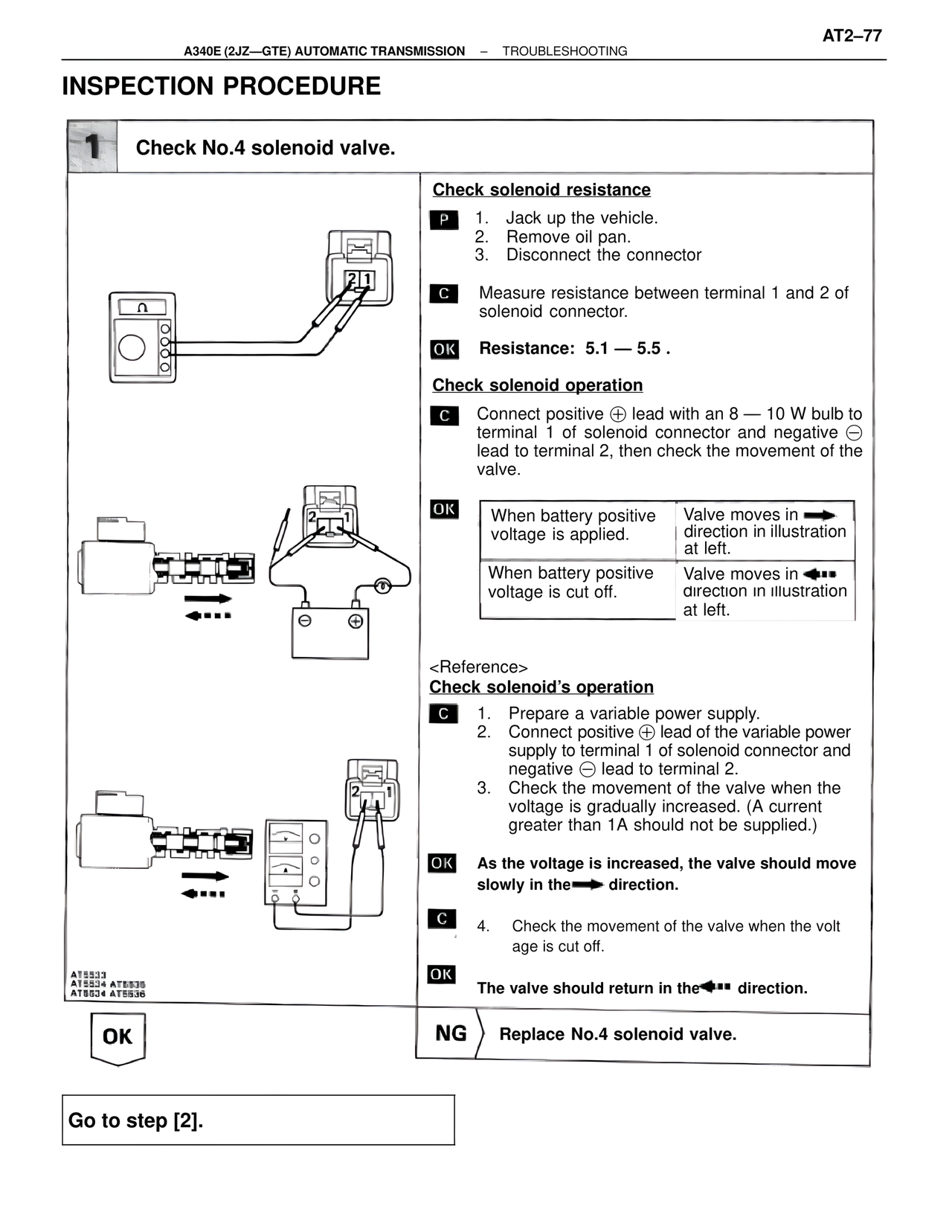

AT2–77 A340E (2JZ—GTE) AUTOMATIC TRANSMISSION – TROUBLESHOOTING INSPECTION PROCEDURE 1 Check No.4 solenoid valve. Check solenoid resistance P 1. Jack up the vehicle. 2. Remove oil pan. 3. Disconnect the connector C Measure resistance between terminal 1 and 2 of solenoid connector. OK Resistance: 5.1 — 5.5 . Check solenoid operation C Connect positive ⊕ lead with an 8 — 10 W bulb to terminal 1 of solenoid connector and negative ⊖ lead to terminal 2, then check the movement of the valve. OK When battery positive voltage is applied. Valve moves in ➡ direction in illustration at left. When battery positive voltage is cut off. Valve moves in ⬅•• direction in illustration at left. <Reference> Check solenoid's operation C 1. Prepare a variable power supply. 2. Connect positive ⊕ lead of the variable power supply to terminal 1 of solenoid connector and negative ⊖ lead to terminal 2. 3. Check the movement of the valve when the voltage is gradually increased. (A current greater than 1A should not be supplied.) OK As the voltage is increased, the valve should move slowly in the➡ direction. C 4. Check the movement of the valve when the voltage is cut off. OK The valve should return in the⬅•• direction. AT5533 AT5534 AT5535 AT5834 AT5536 OK NG Replace No.4 solenoid valve. Go to step [2].
