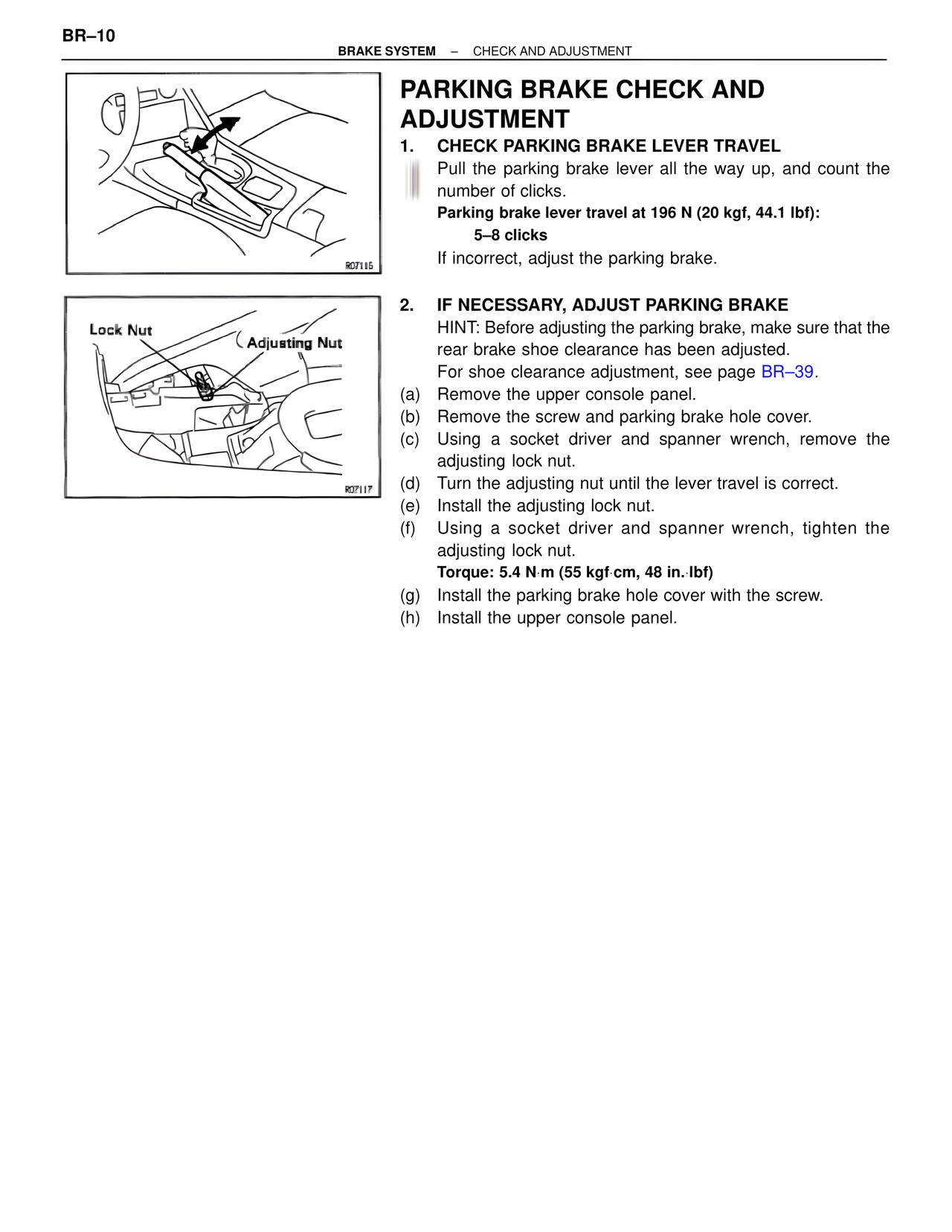

BR–10 BRAKE SYSTEM – CHECK AND ADJUSTMENT PARKING BRAKE CHECK AND ADJUSTMENT 1. CHECK PARKING BRAKE LEVER TRAVEL Pull the parking brake lever all the way up, and count the number of clicks. Parking brake lever travel at 196 N (20 kgf, 44.1 lbf): 5–8 clicks If incorrect, adjust the parking brake. 2. IF NECESSARY, ADJUST PARKING BRAKE HINT: Before adjusting the parking brake, make sure that the rear brake shoe clearance has been adjusted. For shoe clearance adjustment, see page BR–39. (a) Remove the upper console panel. (b) Remove the screw and parking brake hole cover. (c) Using a socket driver and spanner wrench, remove the adjusting lock nut. (d) Turn the adjusting nut until the lever travel is correct. (e) Install the adjusting lock nut. (f) Using a socket driver and spanner wrench, tighten the adjusting lock nut. Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf) (g) Install the parking brake hole cover with the screw. (h) Install the upper console panel. Lock Nut Adjusting Nut R07115 R07117
