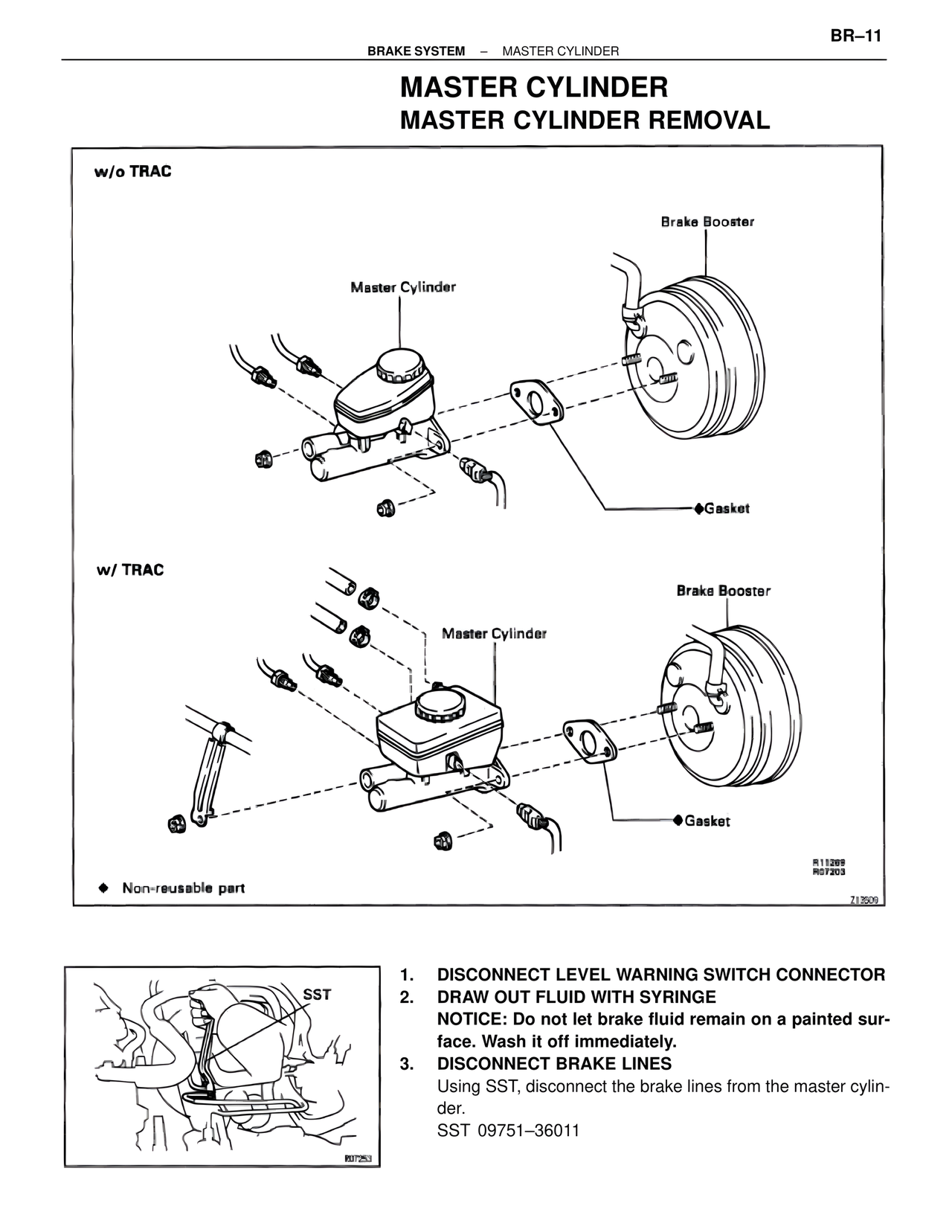

BR–11 BRAKE SYSTEM – MASTER CYLINDER MASTER CYLINDER MASTER CYLINDER REMOVAL w/o TRAC Brake Booster Master Cylinder ♦Gasket w/ TRAC Brake Booster Master Cylinder ♦Gasket R11269 R07203 Z13509 ♦ Non-reusable part SST R07253 1. DISCONNECT LEVEL WARNING SWITCH CONNECTOR 2. DRAW OUT FLUID WITH SYRINGE NOTICE: Do not let brake fluid remain on a painted sur- face. Wash it off immediately. 3. DISCONNECT BRAKE LINES Using SST, disconnect the brake lines from the master cylin- der. SST 09751–36011
