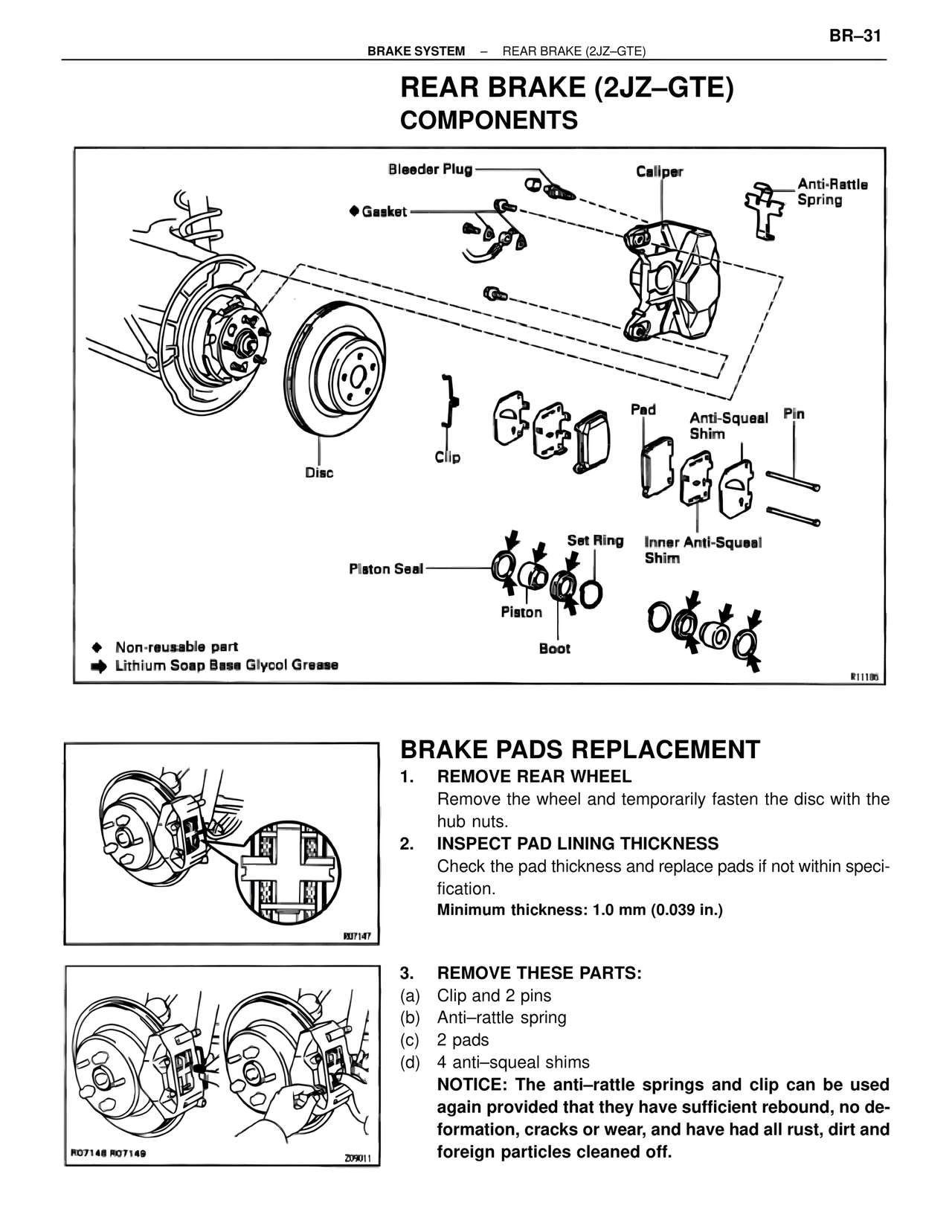

BR–31 BRAKE SYSTEM – REAR BRAKE (2JZ–GTE) REAR BRAKE (2JZ–GTE) COMPONENTS Bleeder Plug Caliper Anti-Rattle Spring ◆ Gasket Disc Clip Pad Anti-Squeal Shim Pin Set Ring Inner Anti-Squeal Shim Piston Seal Piston Boot ◆ Non-reusable part ➡ Lithium Soap Base Glycol Grease R11186 BRAKE PADS REPLACEMENT 1. REMOVE REAR WHEEL Remove the wheel and temporarily fasten the disc with the hub nuts. 2. INSPECT PAD LINING THICKNESS Check the pad thickness and replace pads if not within speci- fication. Minimum thickness: 1.0 mm (0.039 in.) R07147 3. REMOVE THESE PARTS: (a) Clip and 2 pins (b) Anti–rattle spring (c) 2 pads (d) 4 anti–squeal shims NOTICE: The anti–rattle springs and clip can be used again provided that they have sufficient rebound, no de- formation, cracks or wear, and have had all rust, dirt and foreign particles cleaned off. R07148 R07149 Z09011
