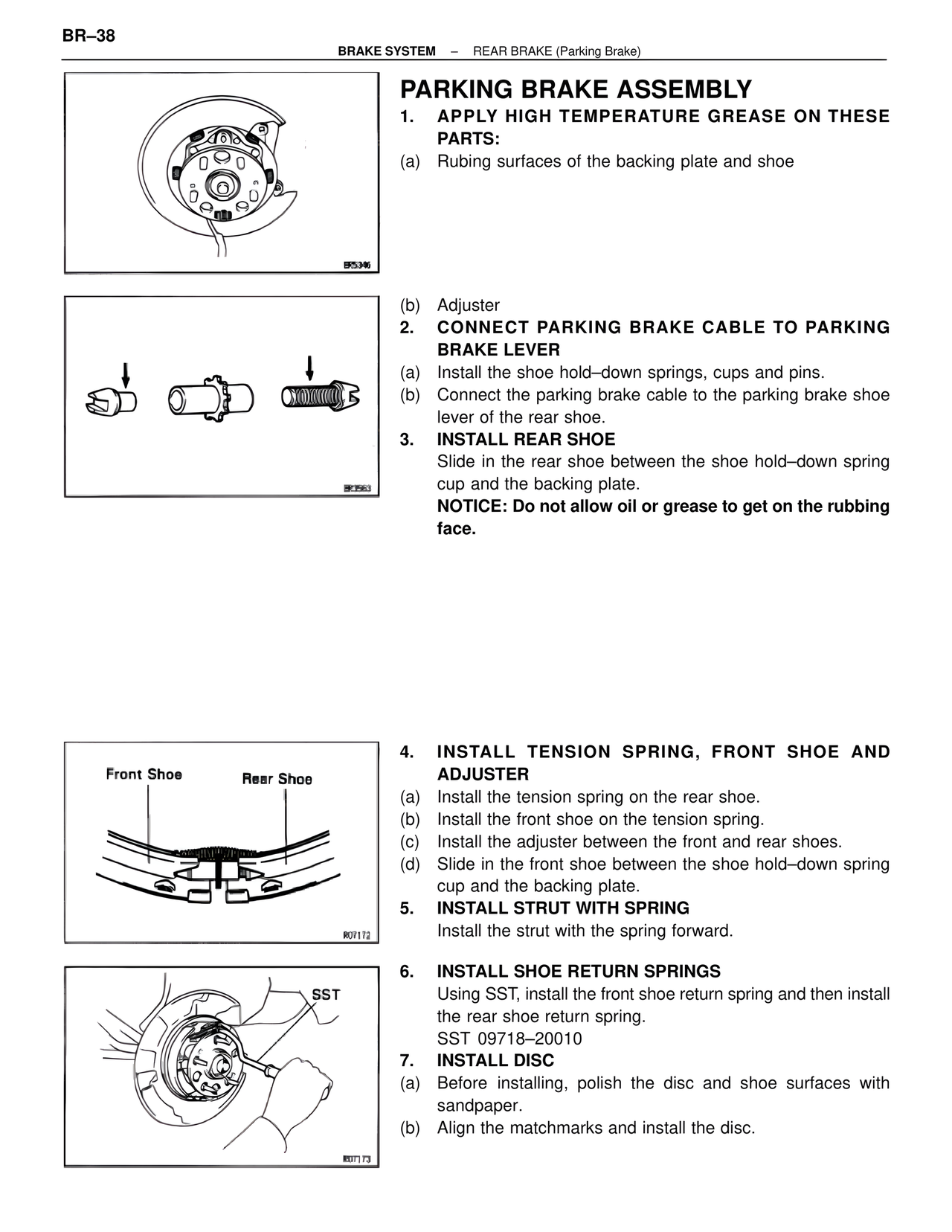

BR–38 BRAKE SYSTEM – REAR BRAKE (Parking Brake) PARKING BRAKE ASSEMBLY 1. APPLY HIGH TEMPERATURE GREASE ON THESE PARTS: (a) Rubing surfaces of the backing plate and shoe BR5346 (b) Adjuster 2. CONNECT PARKING BRAKE CABLE TO PARKING BRAKE LEVER (a) Install the shoe hold–down springs, cups and pins. (b) Connect the parking brake cable to the parking brake shoe lever of the rear shoe. 3. INSTALL REAR SHOE Slide in the rear shoe between the shoe hold–down spring cup and the backing plate. NOTICE: Do not allow oil or grease to get on the rubbing face. BR3563 Front Shoe Rear Shoe 4. INSTALL TENSION SPRING, FRONT SHOE AND ADJUSTER (a) Install the tension spring on the rear shoe. (b) Install the front shoe on the tension spring. (c) Install the adjuster between the front and rear shoes. (d) Slide in the front shoe between the shoe hold–down spring cup and the backing plate. 5. INSTALL STRUT WITH SPRING Install the strut with the spring forward. R07172 SST 6. INSTALL SHOE RETURN SPRINGS Using SST, install the front shoe return spring and then install the rear shoe return spring. SST 09718–20010 7. INSTALL DISC (a) Before installing, polish the disc and shoe surfaces with sandpaper. (b) Align the matchmarks and install the disc. R07173
