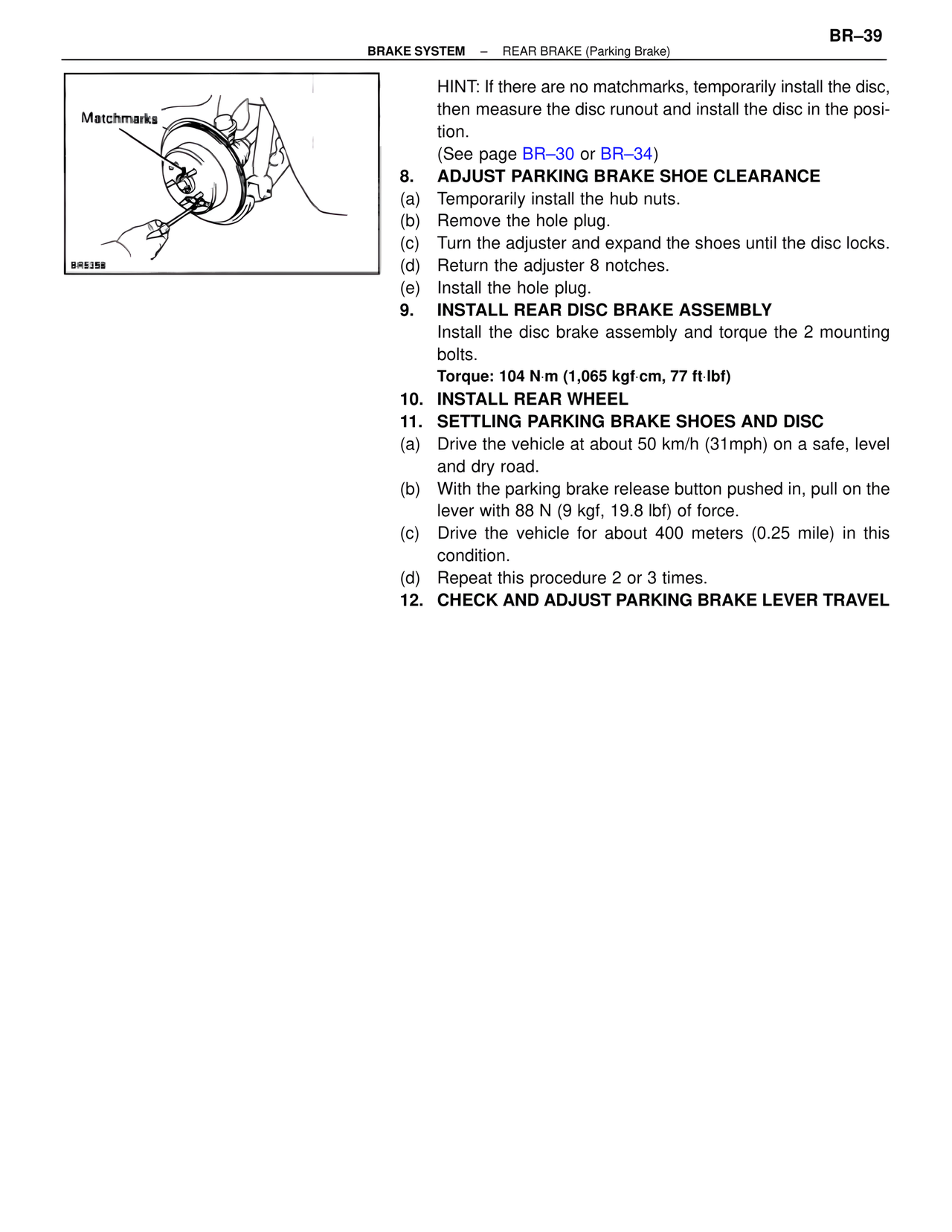

BR–39
BRAKE SYSTEM – REAR BRAKE (Parking Brake)
Matchmarks
BR5358
HINT: If there are no matchmarks, temporarily install the disc, then measure the disc runout and install the disc in the position.
(See page BR–30 or BR–34)
8. ADJUST PARKING BRAKE SHOE CLEARANCE
(a) Temporarily install the hub nuts.
(b) Remove the hole plug.
(c) Turn the adjuster and expand the shoes until the disc locks.
(d) Return the adjuster 8 notches.
(e) Install the hole plug.
9. INSTALL REAR DISC BRAKE ASSEMBLY
Install the disc brake assembly and torque the 2 mounting bolts.
Torque: 104 N·m (1,065 kgf·cm, 77 ft·lbf)
10. INSTALL REAR WHEEL
11. SETTLING PARKING BRAKE SHOES AND DISC
(a) Drive the vehicle at about 50 km/h (31mph) on a safe, level and dry road.
(b) With the parking brake release button pushed in, pull on the lever with 88 N (9 kgf, 19.8 lbf) of force.
(c) Drive the vehicle for about 400 meters (0.25 mile) in this condition.
(d) Repeat this procedure 2 or 3 times.
12. CHECK AND ADJUST PARKING BRAKE LEVER TRAVEL
