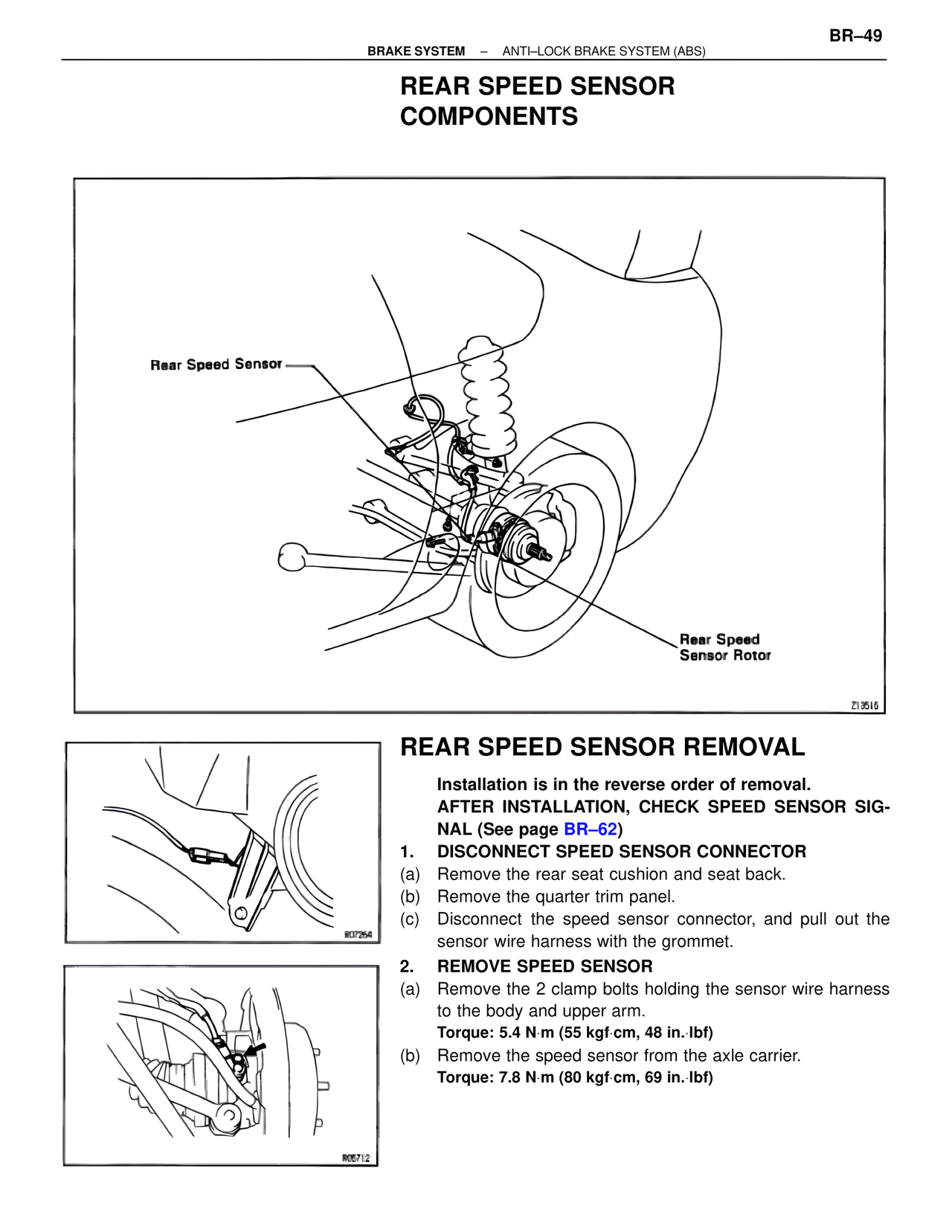

BR–49 BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS) REAR SPEED SENSOR COMPONENTS Rear Speed Sensor Rear Speed Sensor Rotor Z13516 REAR SPEED SENSOR REMOVAL Installation is in the reverse order of removal. AFTER INSTALLATION, CHECK SPEED SENSOR SIG- NAL (See page BR–62) 1. DISCONNECT SPEED SENSOR CONNECTOR (a) Remove the rear seat cushion and seat back. (b) Remove the quarter trim panel. (c) Disconnect the speed sensor connector, and pull out the sensor wire harness with the grommet. 2. REMOVE SPEED SENSOR (a) Remove the 2 clamp bolts holding the sensor wire harness to the body and upper arm. Torque: 5.4 N·m (55 kgf·cm, 48 in.·lbf) (b) Remove the speed sensor from the axle carrier. Torque: 7.8 N·m (80 kgf·cm, 69 in.·lbf) R07264 R05712
