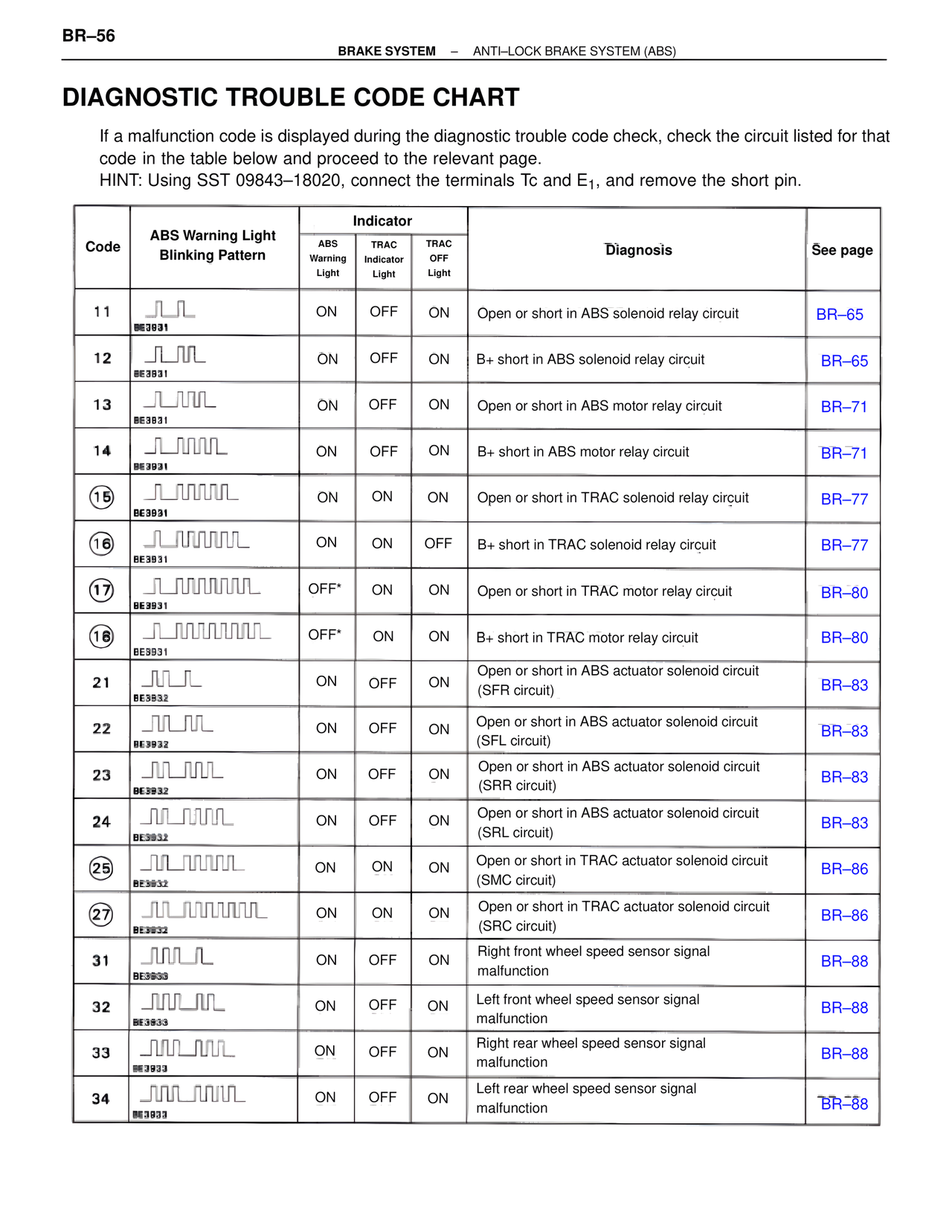

BR–56
BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)
DIAGNOSTIC TROUBLE CODE CHART
If a malfunction code is displayed during the diagnostic trouble code check, check the circuit listed for that code in the table below and proceed to the relevant page.
HINT: Using SST 09843–18020, connect the terminals Tc and E1, and remove the short pin.
Code | ABS Warning Light Blinking Pattern | Indicator | Diagnosis | See page
ABS Warning Light | TRAC Indicator Light | TRAC OFF Light
11 | BE3831 | ON | OFF | ON | Open or short in ABS solenoid relay circuit | BR–65
12 | BE3831 | ON | OFF | ON | B+ short in ABS solenoid relay circuit | BR–65
13 | BE3831 | ON | OFF | ON | Open or short in ABS motor relay circuit | BR–71
14 | BE3931 | ON | OFF | ON | B+ short in ABS motor relay circuit | BR–71
(15) | BE3831 | ON | ON | ON | Open or short in TRAC solenoid relay circuit | BR–77
(16) | BE3831 | ON | ON | OFF | B+ short in TRAC solenoid relay circuit | BR–77
(17) | BE3931 | OFF* | ON | ON | Open or short in TRAC motor relay circuit | BR–80
(18) | BE3831 | OFF* | ON | ON | B+ short in TRAC motor relay circuit | BR–80
21 | BE3832 | ON | OFF | ON | Open or short in ABS actuator solenoid circuit (SFR circuit) | BR–83
22 | BE3932 | ON | OFF | ON | Open or short in ABS actuator solenoid circuit (SFL circuit) | BR–83
23 | BE3932 | ON | OFF | ON | Open or short in ABS actuator solenoid circuit (SRR circuit) | BR–83
24 | BE3932 | ON | OFF | ON | Open or short in ABS actuator solenoid circuit (SRL circuit) | BR–83
(25) | BE3932 | ON | ON | ON | Open or short in TRAC actuator solenoid circuit (SMC circuit) | BR–86
(27) | BE3932 | ON | ON | ON | Open or short in TRAC actuator solenoid circuit (SRC circuit) | BR–86
31 | BE3933 | ON | OFF | ON | Right front wheel speed sensor signal malfunction | BR–88
32 | BE3933 | ON | OFF | ON | Left front wheel speed sensor signal malfunction | BR–88
33 | BE3933 | ON | OFF | ON | Right rear wheel speed sensor signal malfunction | BR–88
34 | BE3933 | ON | OFF | ON | Left rear wheel speed sensor signal malfunction | BR–88
