BRAKE SYSTEM – ANTI–LOCK BRAKE SYSTEM (ABS)

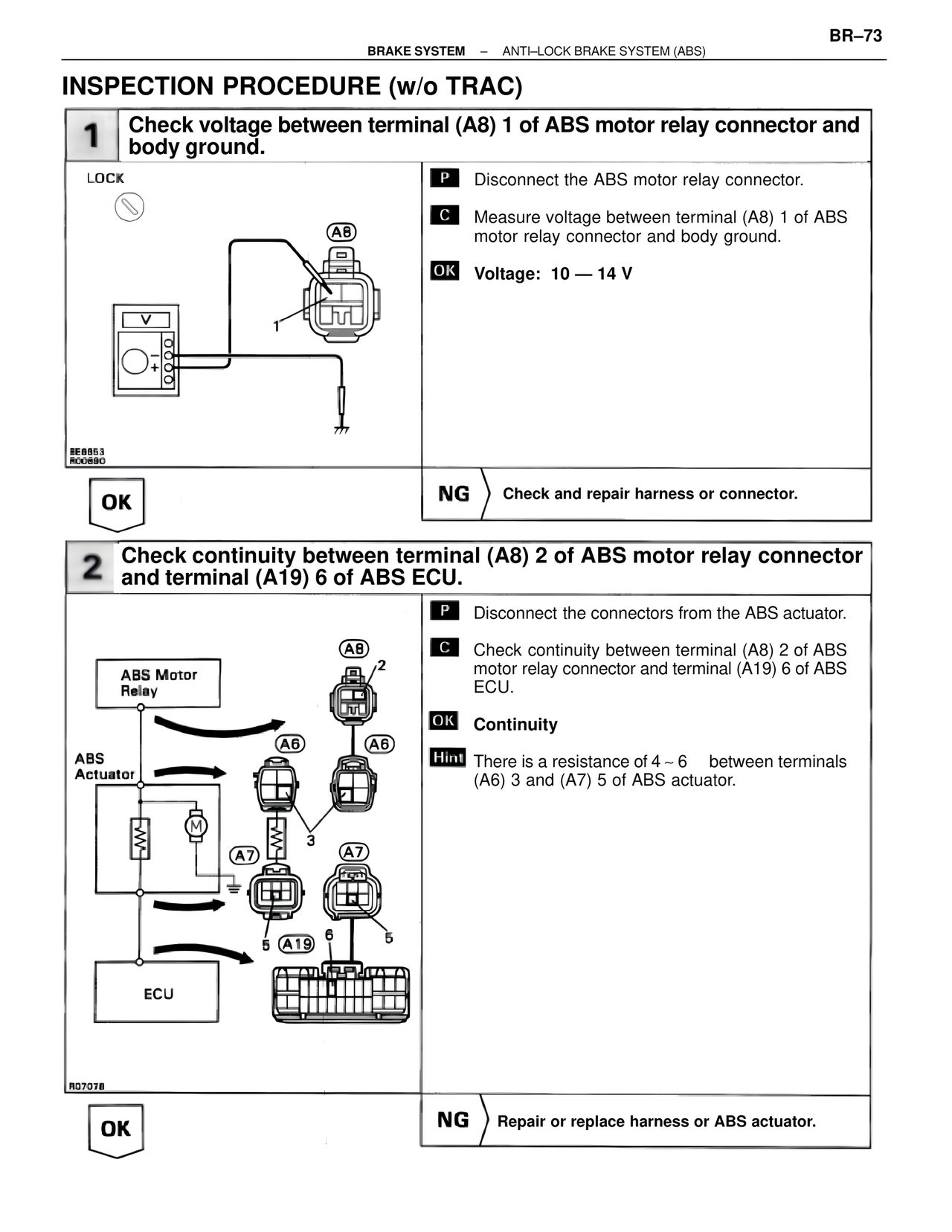

INSPECTION PROCEDURE (w/o TRAC)
1 Check voltage between terminal (A8) 1 of ABS motor relay connector and body ground.
LOCK
P Disconnect the ABS motor relay connector.
C Measure voltage between terminal (A8) 1 of ABS motor relay connector and body ground.
OK Voltage: 10 — 14 V
BE6853
ROC890
OK
NG Check and repair harness or connector.
2 Check continuity between terminal (A8) 2 of ABS motor relay connector and terminal (A19) 6 of ABS ECU.
P Disconnect the connectors from the ABS actuator.
C Check continuity between terminal (A8) 2 of ABS motor relay connector and terminal (A19) 6 of ABS ECU.
OK Continuity
Hint There is a resistance of 4 ~ 6 between terminals (A6) 3 and (A7) 5 of ABS actuator.
ABS Motor Relay
A8
A6
A6
ABS Actuator
A7
A7
A19
ECU
R07078
OK
NG Repair or replace harness or ABS actuator.
