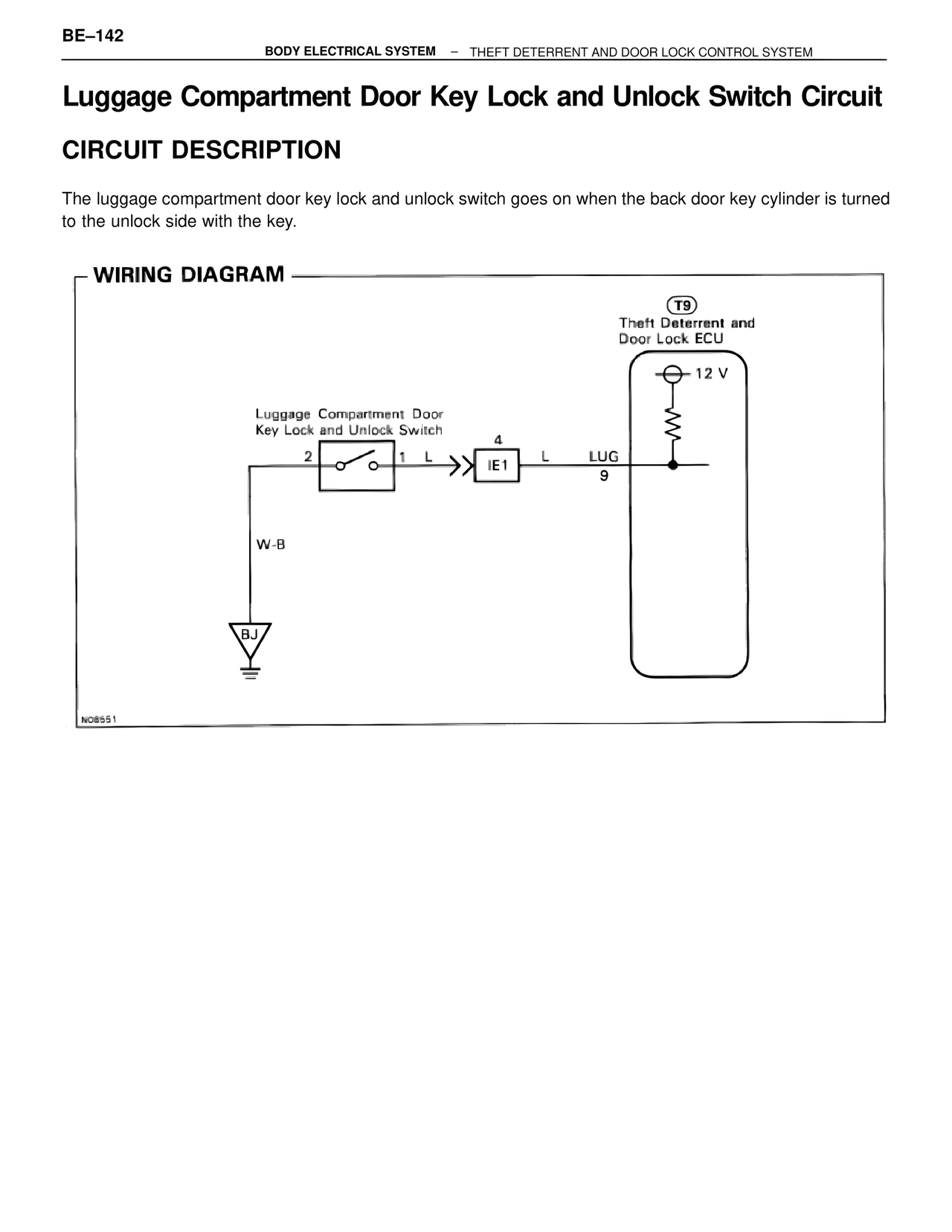

Luggage Compartment Door Key Lock and Unlock Switch Circuit
CIRCUIT DESCRIPTION
The luggage compartment door key lock and unlock switch goes on when the back door key cylinder is turned to the unlock side with the key.
WIRING DIAGRAM
T9
Theft Deterrent and
Door Lock ECU
12 V
Luggage Compartment Door
Key Lock and Unlock Switch
2 1 L
4
IE1 L LUG
9
W-B
BJ
N08551
