BE–148
BODY ELECTRICAL SYSTEM – THEFT DETERRENT AND DOOR LOCK CONTROL SYSTEM
Engine Hood Courtesy Switch Circuit
CIRCUIT DESCRIPTION
The engine hood courtesy switch is built into the engine hood lock assembly and goes on when the engine hood is opened and goes off when the engine hood is closed.

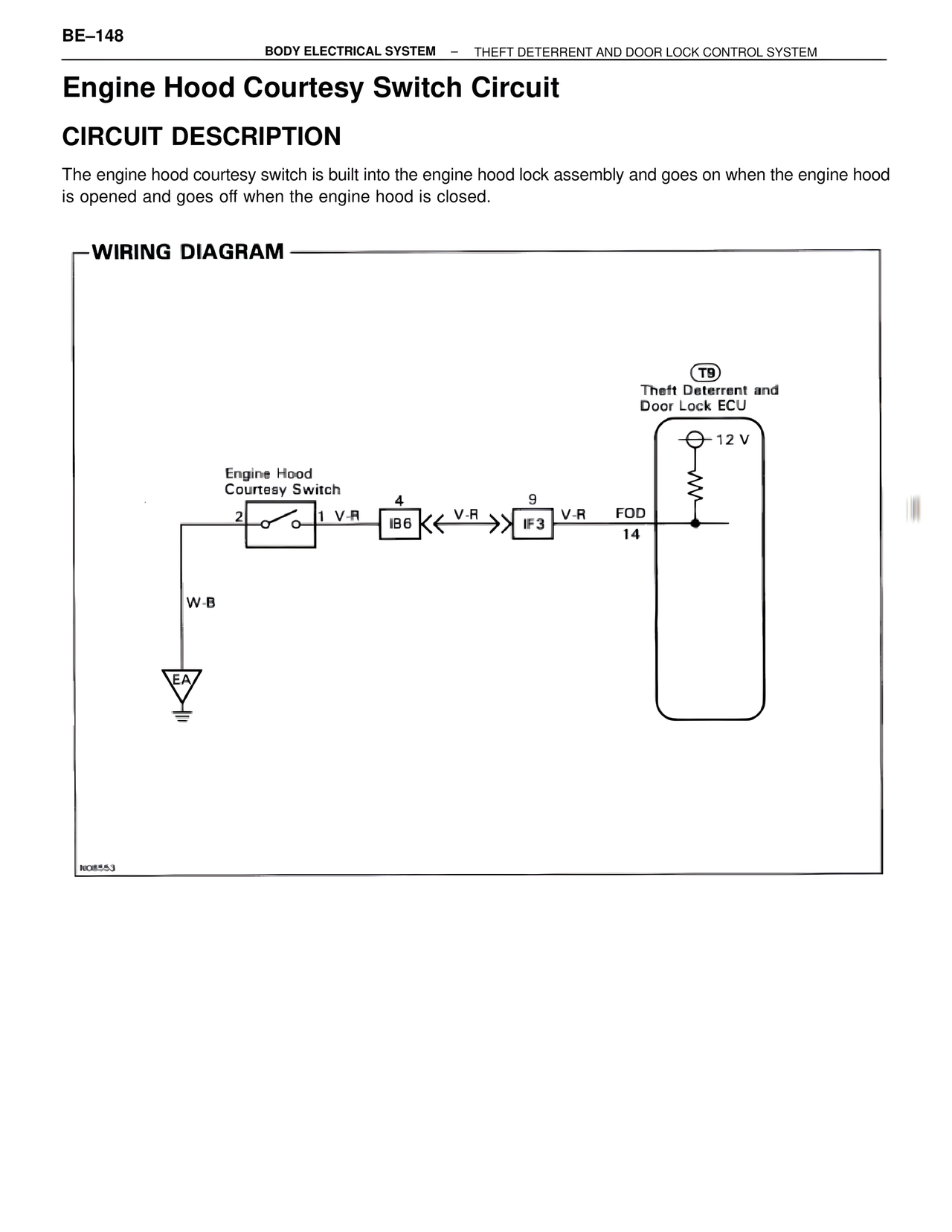

WIRING DIAGRAM
T9
Theft Deterrent and
Door Lock ECU
12 V
Engine Hood
Courtesy Switch
2 1 V-R
4
IB6 V-R
9
IF3 V-R FOD
14
W-B
EA
N08553
