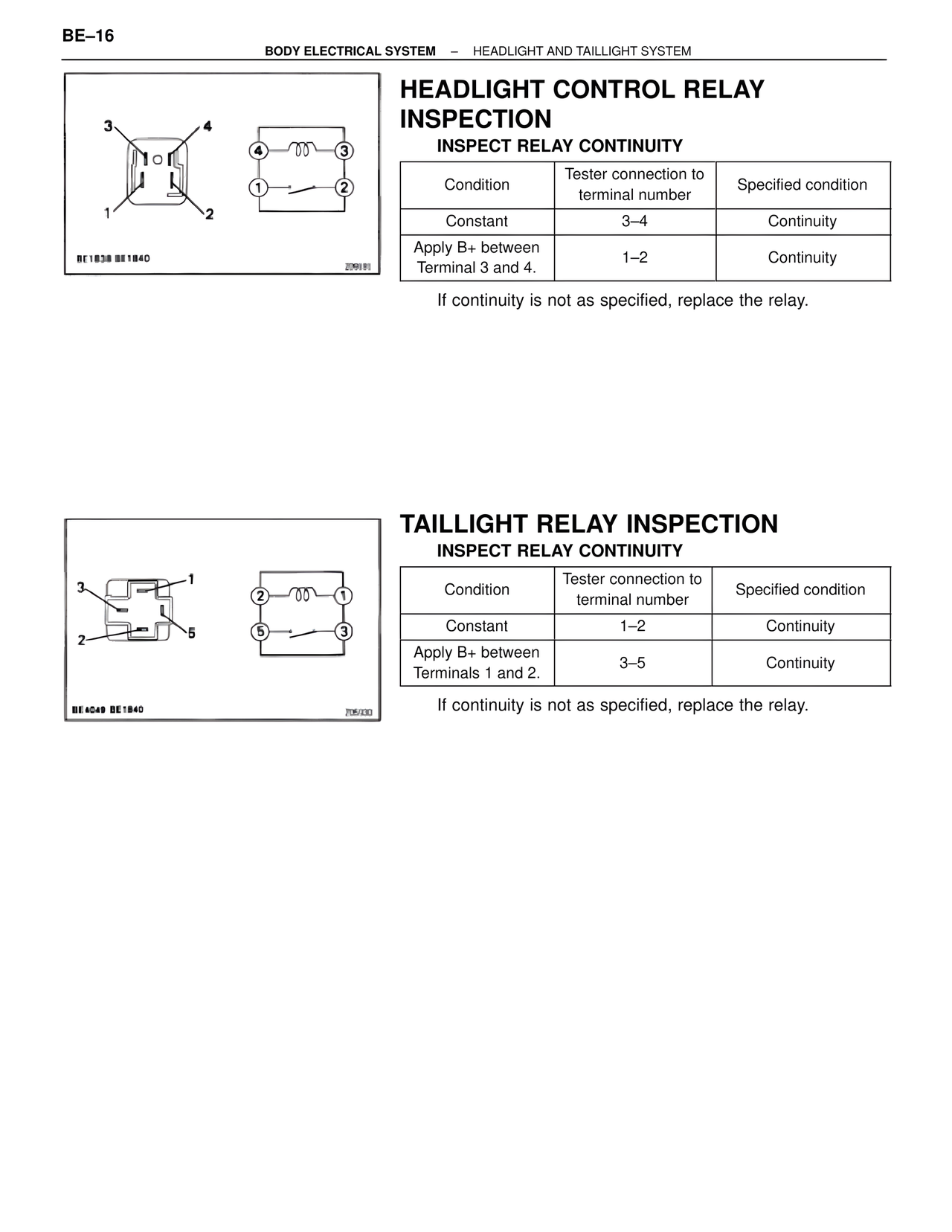

BE–16 BODY ELECTRICAL SYSTEM – HEADLIGHT AND TAILLIGHT SYSTEM HEADLIGHT CONTROL RELAY INSPECTION INSPECT RELAY CONTINUITY Condition | Tester connection to terminal number | Specified condition Constant | 3–4 | Continuity Apply B+ between Terminal 3 and 4. | 1–2 | Continuity If continuity is not as specified, replace the relay. BE1838 BE184C 209989 TAILLIGHT RELAY INSPECTION INSPECT RELAY CONTINUITY Condition | Tester connection to terminal number | Specified condition Constant | 1–2 | Continuity Apply B+ between Terminals 1 and 2. | 3–5 | Continuity If continuity is not as specified, replace the relay. BE4049 BE184D 205930
