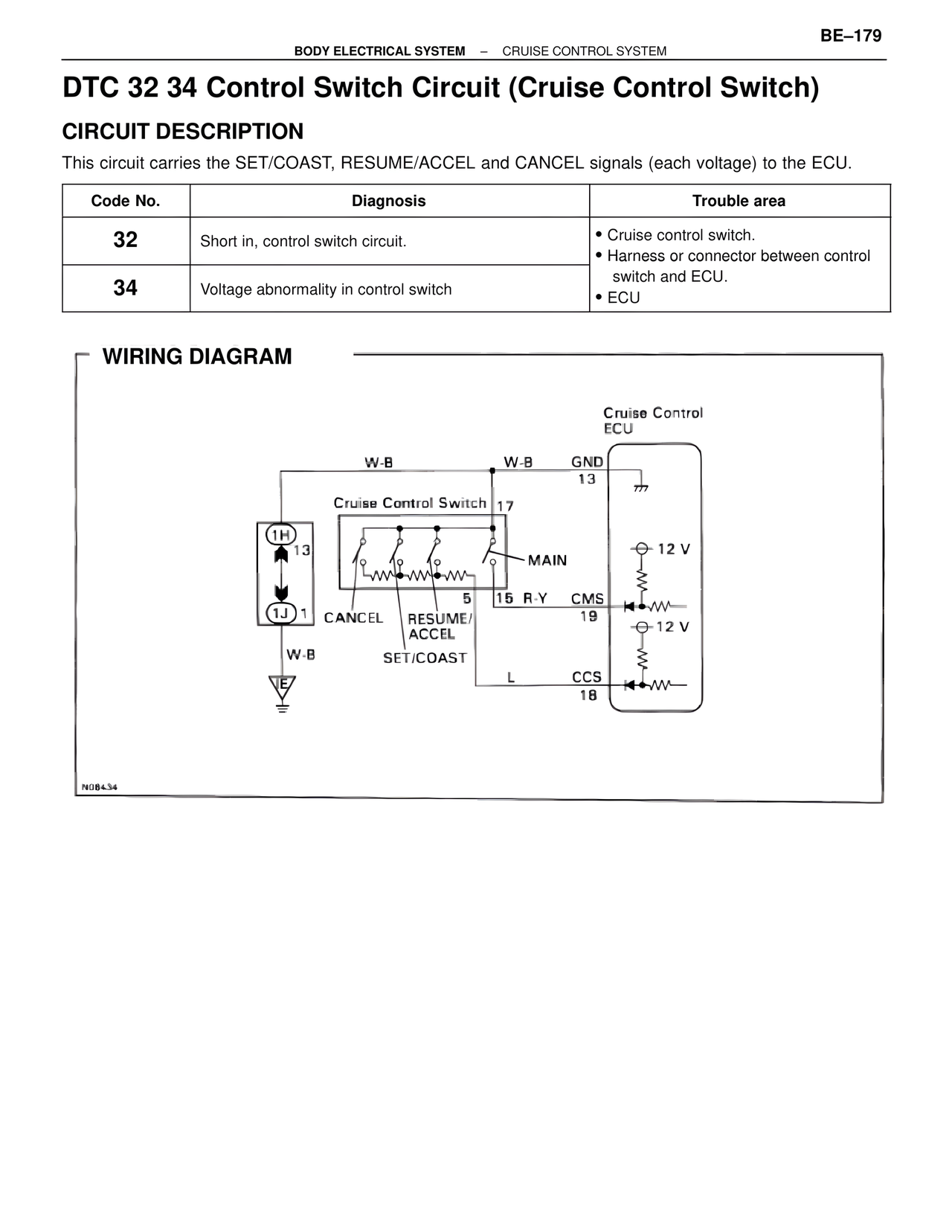

BE-179 BODY ELECTRICAL SYSTEM – CRUISE CONTROL SYSTEM DTC 32 34 Control Switch Circuit (Cruise Control Switch) CIRCUIT DESCRIPTION This circuit carries the SET/COAST, RESUME/ACCEL and CANCEL signals (each voltage) to the ECU. Code No. | Diagnosis | Trouble area 32 | Short in, control switch circuit. | • Cruise control switch. • Harness or connector between control switch and ECU. • ECU 34 | Voltage abnormality in control switch WIRING DIAGRAM Cruise Control ECU W-B W-B GND 13 Cruise Control Switch 17 1H 13 1J 1 CANCEL RESUME/ MAIN ACCEL 5 15 R-Y CMS W-B SET/COAST 19 E7 L CCS 18 N08434
