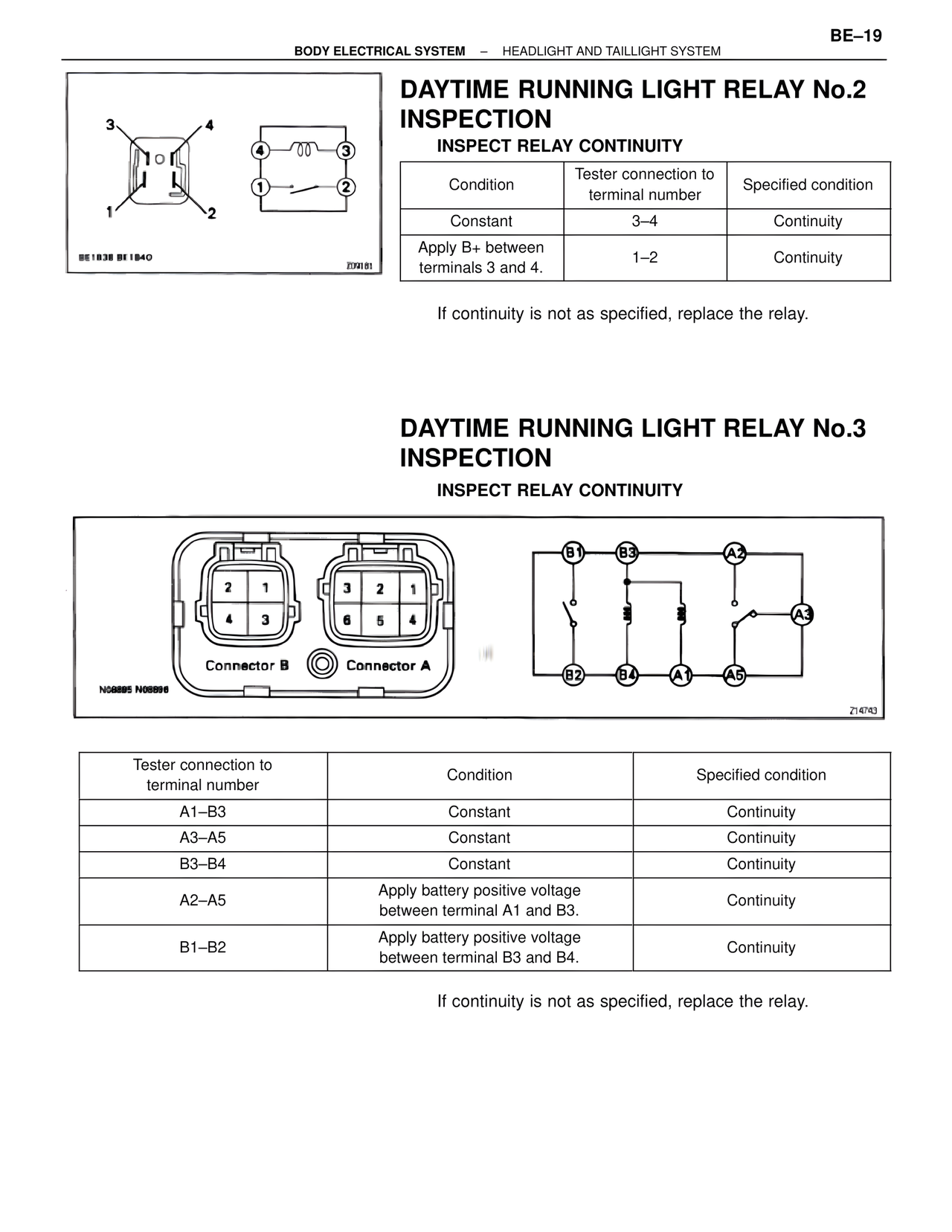

BODY ELECTRICAL SYSTEM – HEADLIGHT AND TAILLIGHT SYSTEM
BE–19
DAYTIME RUNNING LIGHT RELAY No.2
INSPECTION
INSPECT RELAY CONTINUITY
Condition | Tester connection to terminal number | Specified condition
Constant | 3–4 | Continuity
Apply B+ between terminals 3 and 4. | 1–2 | Continuity
If continuity is not as specified, replace the relay.
BE1B3B BE1B4O
Z09181
DAYTIME RUNNING LIGHT RELAY No.3
INSPECTION
INSPECT RELAY CONTINUITY
Connector B
Connector A
2 1
4 3
3 2 1
6 5 4
N08895 N08896
B1 B3 A2
B2 B4 A1 A5
A3
Z14743
Tester connection to terminal number | Condition | Specified condition
A1–B3 | Constant | Continuity
A3–A5 | Constant | Continuity
B3–B4 | Constant | Continuity
A2–A5 | Apply battery positive voltage between terminal A1 and B3. | Continuity
B1–B2 | Apply battery positive voltage between terminal B3 and B4. | Continuity
If continuity is not as specified, replace the relay.
