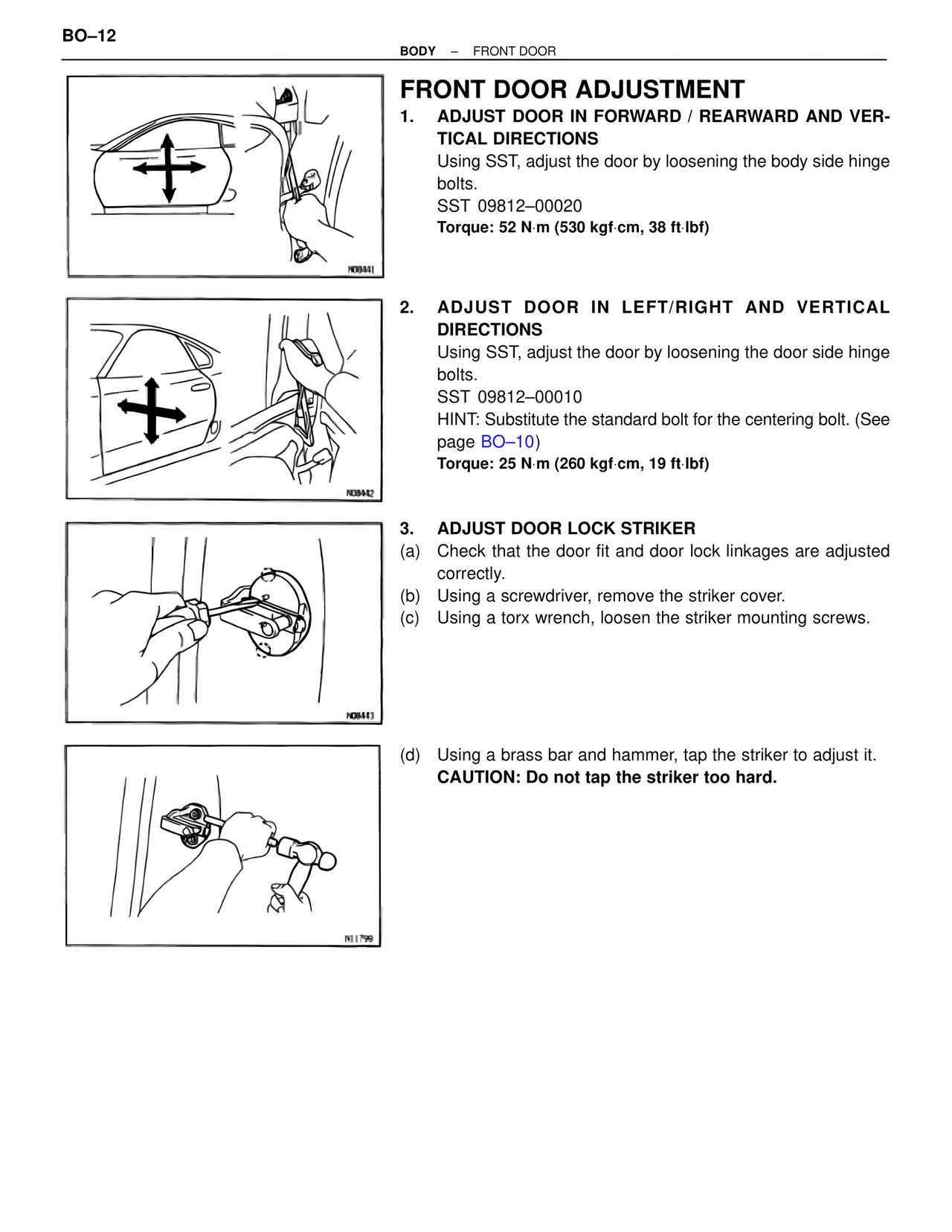

BO–12 BODY – FRONT DOOR FRONT DOOR ADJUSTMENT 1. ADJUST DOOR IN FORWARD / REARWARD AND VERTICAL DIRECTIONS Using SST, adjust the door by loosening the body side hinge bolts. SST 09812–00020 Torque: 52 N·m (530 kgf·cm, 38 ft·lbf) 2. ADJUST DOOR IN LEFT/RIGHT AND VERTICAL DIRECTIONS Using SST, adjust the door by loosening the door side hinge bolts. SST 09812–00010 HINT: Substitute the standard bolt for the centering bolt. (See page BO–10) Torque: 25 N·m (260 kgf·cm, 19 ft·lbf) 3. ADJUST DOOR LOCK STRIKER (a) Check that the door fit and door lock linkages are adjusted correctly. (b) Using a screwdriver, remove the striker cover. (c) Using a torx wrench, loosen the striker mounting screws. (d) Using a brass bar and hammer, tap the striker to adjust it. CAUTION: Do not tap the striker too hard. N08441 N08442 N08443 N11799
